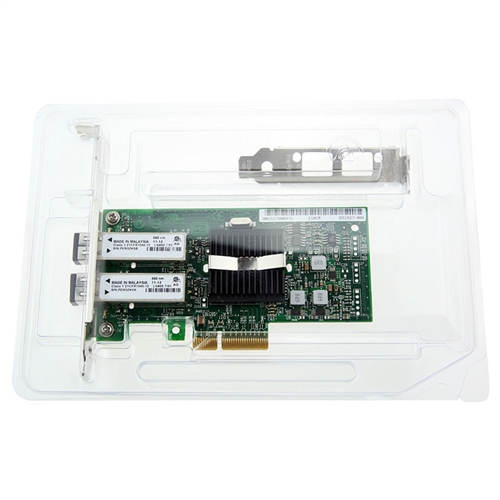

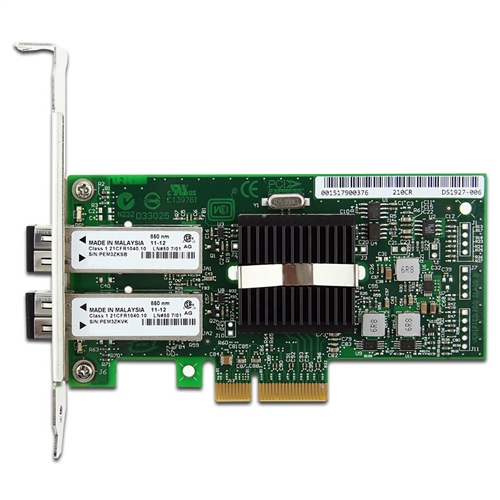

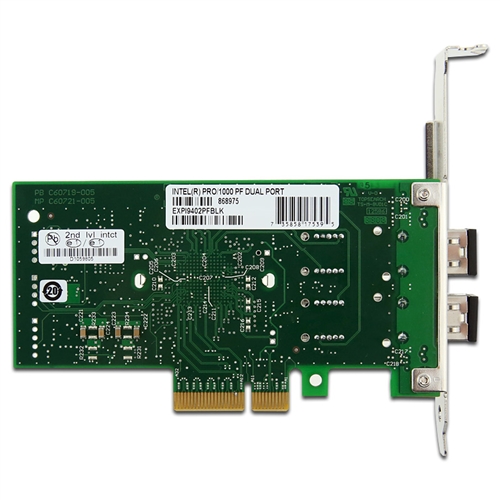

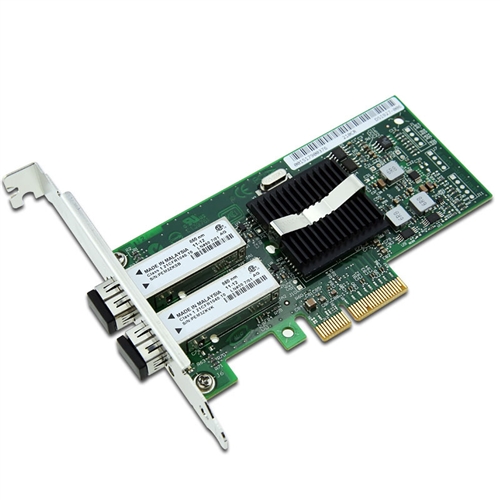

Intel PRO/1000 PF Dual Port Server Adapter, 2xLC, 1000Full, PCIe, 82571GB.
The Intel PRO/1000 PF Dual Port Server Adapter represents the fifth
generation of Intel network adapters for Gigabit Ethernet, and features
10/100/1000 Mbps self-configuration for compatibility with mixed speed
network devices. For easy installation and management, all Intel PRO
Network Connections are supported by Intel PRO Intelligent Install and
the new Intel PROSet Utility for Microsoft Device Manager. Intel PROSet
simplifies adapter installation and gives you point-and-click power to
configure and manage all your Intel PRO Network Connections for
connectivity you can count on. Take advantage of PCI Express (PCIe)
server slots to enhance network performance with the Intel PRO/1000 PF
Server Adapter. The dedicated input/output (I/O) bandwidth of PCIe
ensures priority performance-without bus sharing-for Gigabit Ethernet
connectivity in Category-5 networks.
Specifications
- Product Name: Intel PRO/1000 PF Dual Port Server Adapter
- Product Code: EXPI9402PF
- Connectors: LC
- Ports: Dual
- IEEE standards/network topology: Ethernet 1000Base-SX
- Cabling Type: Fiber
- Cable Distance: MMF 50um up to 550m; MMF 62.5um up to 275m
- Data rate(s) supporter per port: 1 Gbps
- Bus type: PCIe v1.0a (2.5 GT/s)
- Bus width: x4 Lane PCI Express, operable in x4, x8, x16 slots
- Bus speed (x1, encoded rate): 10 Gbps uni-directional; 20 Gbps bi-directional
- Controller-processor: Intel 82571GB
- Operating temperature: 0-55° C
- LEDs: 4 (1/port, link and speed) solid and blinking
- Physical Dimensions: 5.1" x 4.7" x 0.9"
- System
Requirements: SCO OpenServer 5, Microsoft Windows 2000, Novell NetWare
5.x, SunSoft Solaris x86 8, Novell NetWare 6.x, Caldera OpenUnix 8,
Linux 2.4 or later, Microsoft Windows Server 2003 Enterprise Edition,
Microsoft Windows Server 2003 Datacenter Edition, FreeBSD 4.x
|
|
This EXPI9402PF is 100% genuine Intel product.
It won't have any compatibility problem with your Intel devices.
And the Intel PRO/1000 PF Dual Port Server Adapter, 2xLC, 1000Full, PCIe, 82571GB is factory new with original packaging.
Buy it now and enjoy risk free purchase with fast worldwide delivery from Compufox.com
|
|
|
|
 |
|
 |
|
