EXPX9501AT | Intel 10GbE RJ45 Network Adapter
EXPX9501AT | Intel Original EXPX9501AT



Alternative Views:
Our Price: $125.00
Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships in 2 days
Brand: Intel
Condition: New Factory Sealed


Product Code: EXPX9501AT
Qty:

Description

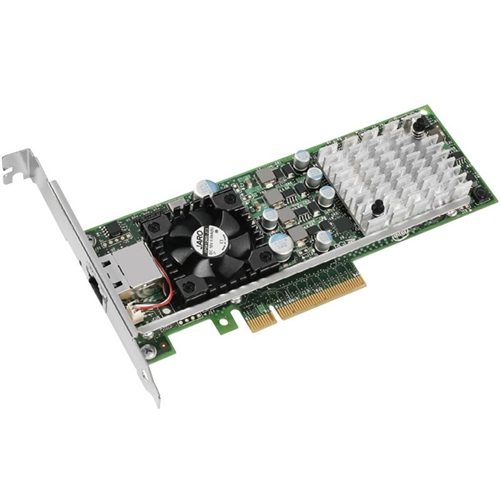

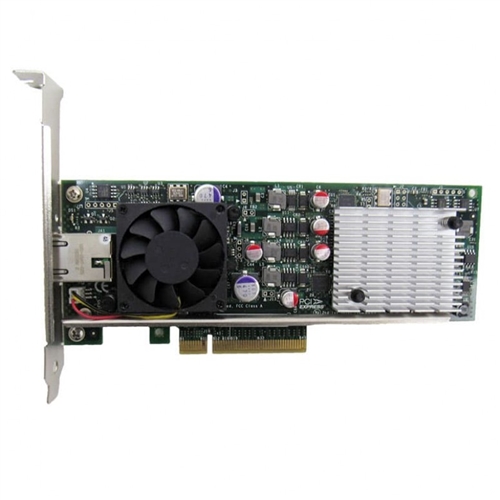

Intel 10 Gigabit AT Server Adapter, RJ45, 10GbE, PCIe, 82598.

This 10 Gigabit AT Ethernet Server Adapter showcases Intel's first-generation standards-based 10BASE-T adapter in a low-profile PCI Express* form factor. It provides bandwidth intensive applications highly affordable 10 Gigabit Ethernet (GbE) network performance with cost-effective RJ-45 connections for distances up to 100 meters. High-speed server connectivity — once reserved for costly, proprietary technologies such as High Performance Computing (HPC) clusters and grid-based computing — can now be achieved with the standardized connectivity of the Intel 10 Gigabit AT Server Adapter. Intel’s adapter also provides 1000BASE-T support for gigabit connections to legacy switches

Features
  • Intel 82598EB 10 Gigabit Ethernet Controller
  • Low profile
  • Load balancing on multiple CPUs
  • Intel I/O Acceleration Technology (Intel I/OAT)
  • iSCSI remote boot support
  • MSI-X support
  • Virtual Machine Device queues1 (VMDq)
  • Low latency
  • Optimized queues: 32 Transmit (Tx) and 64 Receive (Rx) per port
  • Network packet handling without waiting or buffer overflow
  • Support for most Network Operating Systems (NOS)
  • Compatible with x8 and x16 standard and low-profile PCI Express* slots
  • Remote management support
  • RJ-45 connections over category-6A cabling
  • RoHS compliant, lead-free technology
  • Intel PROSet Utility for Microsoft Windows Device Manager
  • Intel backing

Specifications
  • Product Name: Intel 10 Gigabit AT Server Adapter
  • Product Code: EXPX9501AT
  • Market Segment: Server
  • Bracket Height: Low-Profile (LP) / Full-Height (FH)
  • Connectors: RJ-45 Copper
  • Cabling: Category-6A
  • Data rate(s) supported per port: 1 Gigabit and 10 Gigabit
  • Bus type: PCI Express 2.0 (2.5 Gtps)
  • Bus width: x8 lane PCI Express, operable in x8 and x16 slots
  • Bus speed (x8, encoded rate): 20 Gbps uni-directional; 40 Gbps bi-directional
  • Interrupt levels: INTA, MSI, MSI-X
  • Hardware certifications: FCC B, UL, CE, VCCI, BSMI, CTICK, MIC
  • Controller-processor: Intel 82598EB
  • Typical power consumption: 24 W 100LFM
  • Operating temperature: 0° C to 55° C (32° F to 131° F)
  • Storage temperature: -40° C to 70° C (-40° F to 158° F)
  • Storage humidity: 90% non-condensing relative humidity at 35° C
  • LED Indicators: LINK (solid) and ACTIVITY (blinking)
  • Physical Dimensions
    • Length: 16.74 cm (6.59 in)
    • Width: 6.89 cm (2.71 in)
    • Height of end bracket
      • PCI Express standard, 12 cm (4.725 in)
      • PCI Express low-profile, 7.92 cm (3.12 in)

 This EXPX9501AT is 100% genuine Intel product. It won't have any compatibility problem with your Intel devices. And the Intel 10 Gigabit AT Server Adapter, RJ45, 10GbE, PCIe, 82598 is factory new with original packaging. Buy it now and enjoy risk free purchase with fast worldwide delivery from Compufox.com
