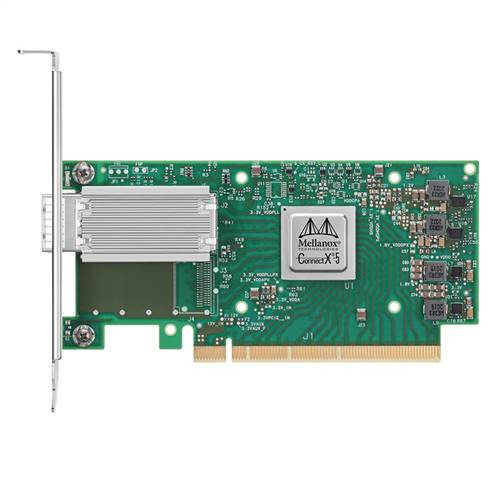

NVIDIA Mellanox MCX515A-CCAT ConnectX®-5 EN Network Interface Card, 100GbE Single-Port QSFP28, PCIe3.0 x16, Tall Bracket
NVIDIA Mellanox MCX515A-CCAT ConnectX®-5 EN Network Interface Card, 100GbE Single-Port QSFP28, PCIe3.0 x16, Tall Bracket



Alternative Views:
Our Price: $749.00
Warranty: 1 Year Warranty


Product Code: MCX515A-CCAT
Qty:

Description


Interface Card, 100GbE Single-Port QSFP28, PCIe3.0 x16, Tall Bracket

ConnectX-5 MCX515A-CCAT Ethernet network interface cards provide high performance and flexible solutions with one port of 100GbE connectivity, 750ns latency, up to 148 million messages per second (Mpps). For storage workloads, the 100 Gigabit Ethernet adapter card delivers a range of innovative accelerations, such as Signature Handover (T10-DIF) in hardware, an embedded PCIe Switch, and NVMe over Fabric target offloads.

Product Highlights

  • Industry Leading Low Latency RDMA over Converged Ethernet (RoCE)
  • DPDK Message Rate of up to 148 Mpps
  • Open vSwitch Offloads Reduce CPU Resource Consumption
  • Support Network Virtualization Offloads Including Geneve, VXLAN and NVGRE
  • End-to-end QoS and Congestion Control to Anticipate and Eliminate Congestion
  • Support Windows, RHEL/CentOS, VMware, FreeBSD, OFED and WinOF-2


Specifications

Manufacturer
MELLANOX TECHNOLOGIES INC
Controller
Mellanox Technologies MT28800 Family ConnectX-5
Ports
Single
Technology
Ethernet
Supported Ethernet Speeds
100/50/40/25/10/1GbE
Interface Type
QSFP28
Host Interface
PCIe 3.0 x16
Link Rate
8.0 GT/s
OS Support
Windows, RHEL/CentOS, VMware, FreeBSD, OFED and WinOF-2
Cabling Type
QSFP28 Transceiver, DAC and AOC
RDMA
Yes
RoHS R6 Compliant
Yes
