Home > Add-On Cards >

PWLA8490MF | Intel 1GbE LC Fiber Network Adapter
PWLA8490MF | Intel Original PWLA8490MF



Alternative Views:
Our Price: $90.00
Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships in 2 days
Brand: Intel
Condition: New Factory Sealed


Product Code: PWLA8490MF
Qty:

Description

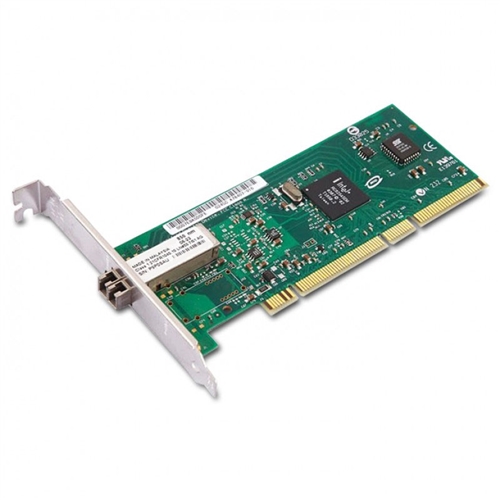

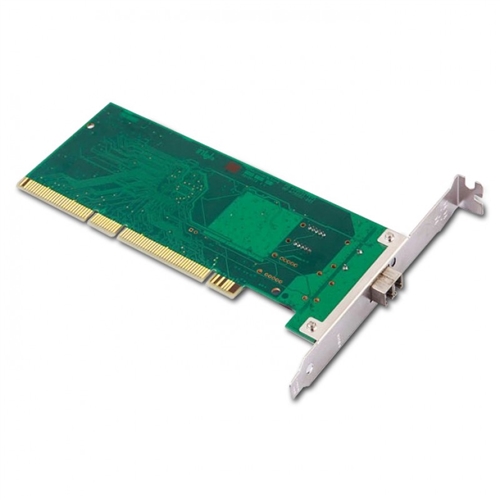

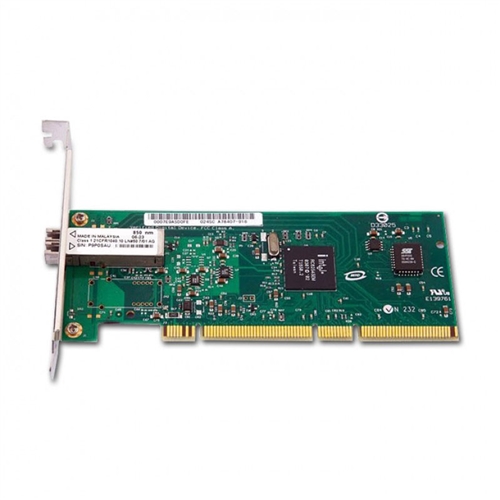

Intel PRO/1000 MF Server Adapter (SX), LC, 1000Full, PCI-X, 82545.

Alleviate bottlenecks and increase uptime with Gigabit performance for servers in single- and multi-mode fiber-optic networks. The Intel PRO/1000 MF Server Adapter, with a self-configuring PCI/PCI-X interface, delivers high throughput while conserving CPU resources. Enhance server performance further by teaming multiple Intel PRO Server Adapters with Intel advanced server feature software for multi-Gigabit scalability and redundant failover capability. With a flexible design that fits almost any type of PCI bus, the standards-based management features and wide network operating system support help to ensure extensive compatibility with the latest server and networking environments.

Features
  • Support for most NOSs
  • Intel SingleDriver technology
  • Backward Compatibility with previous generations of Intel PRO/1000 Network Adapters
  • Supports 64 or 32 bit PCI-X or PCI 2.2 buses
  • Remote Management Support (WfM, RIS, SNMP/DMI)
  • IEEE 802.3z Compatibility
  • Intel 82545 Gigabit Controller
  • Full-height and low profile, screw-on brackets included with each adapter
  • Interrupt Moderation
  • Large Send Off-load/TCP Segmentation Off-load
  • Expanded Advanced Server Features
  • LC Connectors
  • 1000GBASE-SX Multi-mode Fiber
  • 1000BASE-LX

Specifications
  • Product Name: Intel PRO/1000 MF Server Adapter (SX)
  • Product Code: PWLA8490MF
  • Connectors: LC
  • IEEE standards/network topology: 1000BASE-SX
  • Wiring: MMF
  • Cable Distance: 550m at 50um, 275m at 62.5um
  • Data rate(s) supported per port: 1000 Mbps
  • Bus type: PCI/PCI-X
  • Bus width: 32 or 64 bit
  • Bus speed (MHz): 33/66/100/133
  • Onboard Memory: 64 KB
  • Interrupt levels: INTA
  • IEEE support: 802.3z
  • Hardware certifications: FCC Class A, CE
  • Data Transfer Mode: Bus-master DMA
  • Controller-processor: Intel 82545
  • Typical power consumption: 1A at +5V DC
  • Operating temperature: 0~55° C
  • Operating Humidity: 85% at +55° C

Physical Dimensions
  • Length: 16.5 cm (6.6 in)
  • Width: 6.4 cm (2.5 in)
  • Height of full-height end bracket: 12.1 cm (4.75 in)
  • Height of low-profile end bracket: 8.1 cm (3.2 in)

Network Operating Systems (NOS) Software Support
  • Microsoft Windows Server 2003 and 2000
  • Microsoft Windows XP 32 and 64 bit Editions
  • Microsoft Windows NT 4.0
  • Linux 2.4.x or later (32 and 64 bit)
  • FreeBSD 4.x or later
  • Novell Netware 4.11, 4.2, 5.0, 5.1, 6.0
  • SunSoft Solaris 7, 8
  • UnixWare 7.x, OpenUNIX 8(ddi8)
  • SCO5
 This PWLA8490MF is 100% genuine Intel product. It won't have any compatibility problem with your Intel devices. And the Intel PRO/1000 MF Server Adapter (SX), LC, 1000Full, PCI-X, 82545 is factory new with original packaging. Buy it now and enjoy risk free purchase with fast worldwide delivery from Compufox.com
