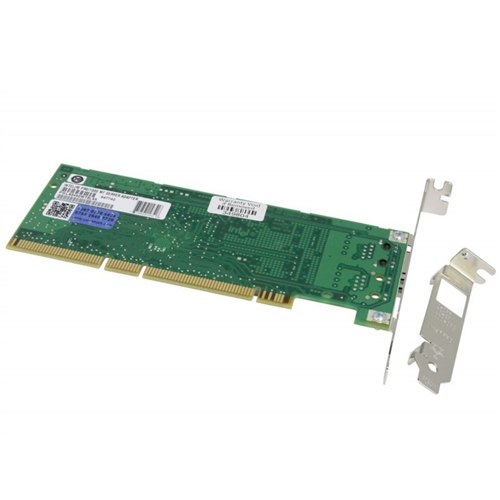

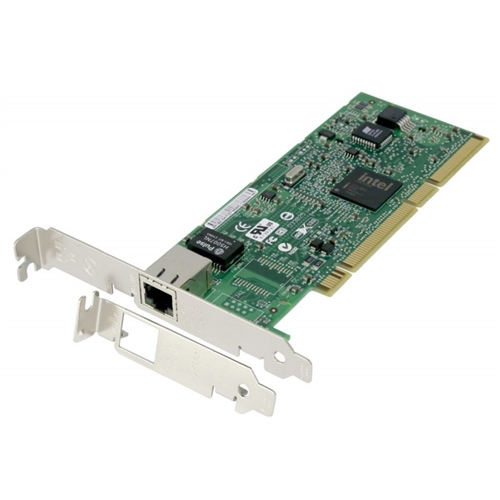

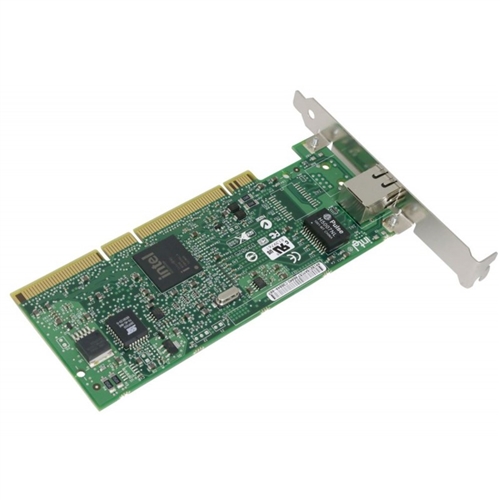

Intel PRO/1000 MT Server Adapter, RJ45, 10/100/1000Mbps, PCI-X, 82545.
Eliminate server bottlenecks and migrate existing Category-5
networks to Gigabit Ethernet easily and cost-effectively with the Intel
PRO/1000 MT Server Adapter. Featuring flexible, auto-negotiating
10/100/1000 Mbps performance, the Intel PRO/1000 MT Server Adapter is
designed to automatically scale with growing networks. Enhance server
performance further by teaming multiple Intel PRO Server Adapters using
Intel's expanded advanced server feature software to achieve
multi-Gigabit scalability and redundant failover capability. With a
flexible design that fits almost any type of PCI bus, the
standards-based management features and wide network operating system
support help to ensure extensive compatibility with the latest server
and networking environments.
Features
- Support for open source NOSs
- Intel SingleDriver technology
- Backward Compatibility with previous generations of Intel PRO/1000 Network Adapters
- Remote Management Support (WfM, RIS, SNMP/DMI)
- Intel 82545 Gigabit Controller
- Full-height and low-profile, screw-on brackets included with each adapter
- Interrupt Moderation
- Advanced Cable Diagnostics
- Large Send Off-load/TCP Segmentation Off-load
- Expanded Advanced Server Features
- Gigabit speeds on Category-5 cable networks
- Compatible with Fast Ethernet
- Auto-sensing, self-configuring 10/100/1000 Mbps performance
Specifications
- Product Name: Intel PRO/1000 MT Server Adapter
- Product Code: PWLA8490MT
- Connectors: RJ-45
- IEEE standards/network topology: 10/100/1000BASE-T
- Wiring: Cat-5, 4-pair
- Cable Distance: 100 m
- Data rate(s) supported per port: 10, 100, and 1000 Mbps
- Bus type: PCI/PCI-X
- Bus width: 32 or 64 bit
- Bus speed (MHz): 33/66/100/133
- Onboard Memory: 64 KB
- Interrupt levels: INTA
- IEEE support: 802.3ab
- Hardware certifications: FCC A, CE
- Data Transfer Mode: Bus-master DMA
- Controller-processor: Intel 82545
- Typical power consumption: 1A at +5V DC
- Operating temperature: 0~55° C
- Operating Humidity: 85% at +55° C
Physical Dimensions
- Length: 16.5 cm (6.6 in)
- Width: 6.4 cm (2.5 in)
- Height of full-height end bracket: 12.1 cm (4.75 in)
- Height of low-profile end bracket: 8.1 cm (3.2 in)
Network Operating Systems (NOS) Software Support
- Microsoft Windows Server 2003 and 2000
- Microsoft Windows XP 32 and 64 bit Editions
- Microsoft Windows NT 4.0
- Linux 2.4.x or later (32 and 64 bit)
- FreeBSD 4.x or later
- Novell Netware 4.11, 4.2, 5.0, 5.1, 6.0
- SunSoft Solaris 7, 8
- UnixWare 7.x, OpenUNIX 8(ddi8)
- SCO5
|
|
This PWLA8490MT is 100% genuine Intel product.
It won't have any compatibility problem with your Intel devices.
And the Intel PRO/1000 MT Server Adapter, RJ45, 10/100/1000, PCI-X, 82545 is factory new with original packaging.
Buy it now and enjoy risk free purchase with fast worldwide delivery from Compufox.com
|
|
|
|
 |
|
 |
|
