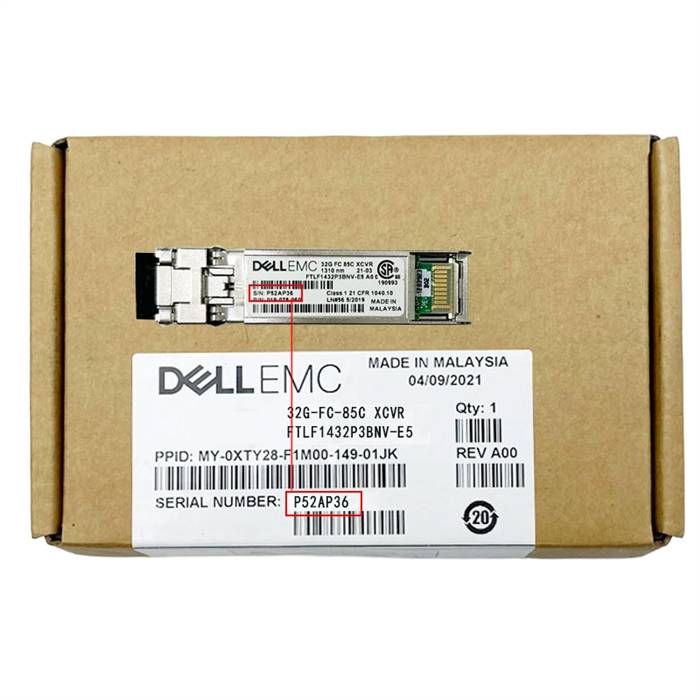

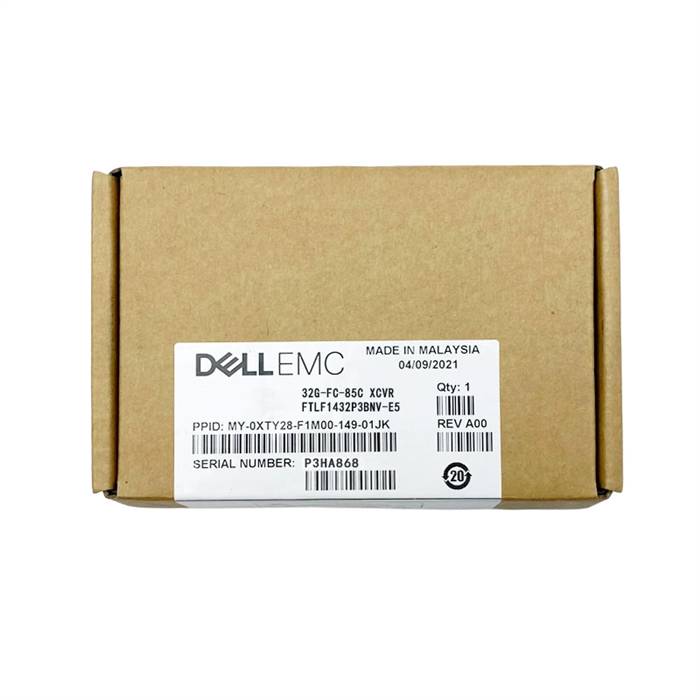

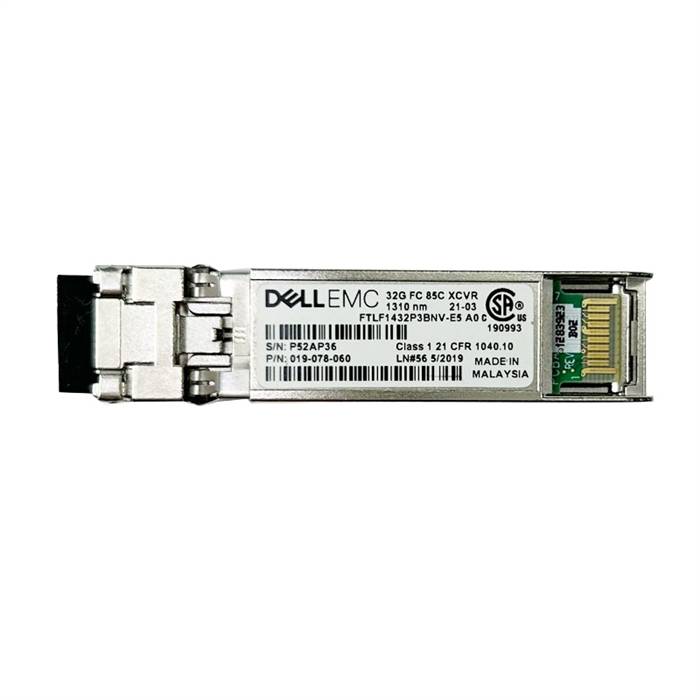

Dell EMC 019-078-060 32G FC 85C XCVR FTLF1432P3BNV-E5

This Dell EMC 019-078-060 FTLF1432P3BNV-E5 SFP28 optical transceivers are designed for use in Fibre Channel links up to 28.05 Gb/s data rate and up to 10 km link length. They are compliant with FC-PI-6 and SFF-8472 Rev 12.1 and compatible with SFF-8432 and applicable portions of SFF-8431 Rev. 4.1. The optical transceiver is RoHS compliant as described in Application Note AN-2038.

Specifications

• Brand Name: Dell EMC

• Model Numbers: 019-078-060, FTLF1432P3BNV-E5
• Transmission distance: 10KM
• Fiber Type: Single Mode
• Data Rate (max): 28.05 Gb/s
• Protocol: 8x Fibre Channel Compliant 16x Fibre Channel Compliant 32x Fibre Channel Compliant
• Low End Case Temperature (°C): -5
• High End Case Temperature (°C): 85
• Diagnostics: Digital
• Transmitter: DFB Laser
• Receiver: PIN
• Voltage Supply: 3.3
• Connector: LC
• Wavelength: 1310nm Band
• Origin: Mainland China
• Certification: CE, FCC, RoHS
