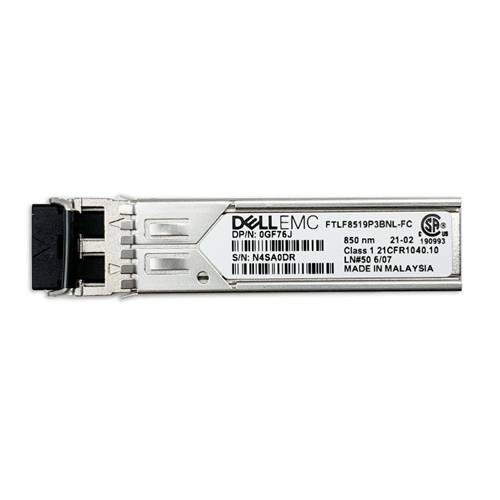

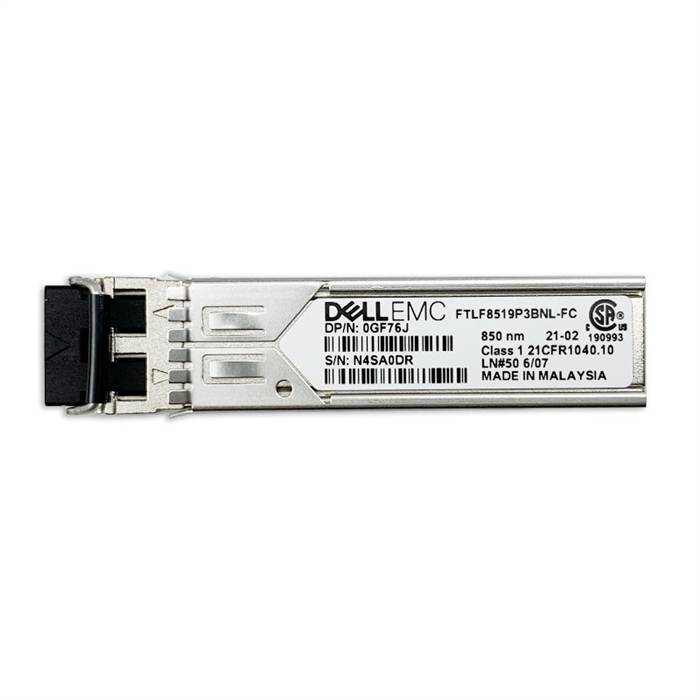

Dell 0GF76J 1000Base-SX Multi-Mode Fibre 500m 850nm Duplex LC SFP Transceiver Module FTLF8519P3BNL-FC

This Dell 0GF76J 2G fiber channel extended temperature SFP module is designed for industrial networking equipment. This hot-swappable transceiver provides maximum 300m transmission distance over multimode fiber (MMF) cabling at a wavelength of 850nm. It complies with Gigabit Ethernet as specified in IEEE Std 802.3 and 1x and 2x Fibre Channel.

Features

• Support up to 2.125Gb/s data links
• Compliant with IEEE 802.3z
• Single 3.3V power supply
• LC Duplex connector
• Built-in digital diagnostic functions
• Extended operating temperature range: -20°C to 85°C
• ROHS compliant and Lead-Free

Specifications

• Brand: Dell
• Part #: GF76J,0GF76J
• Model: FTLF8519P3BNL-FC
• Form Factor: SFP
• Data Rate: 2.125Gb/s
• Wavelength: 850nm
• Fiber Type: MMF
• Max Distance: 300m
• Optical Components: VCSEL/PIN
• Transmitter Power: -10?-3 dBm
• Extinction ratio: > 8.2 dB
• Receiver Sensitivity: < -18 dBm
• Receiver Overload: > -3 dBm
• Connector: LC Duplex
• Digital Diagnostic Monitoring: Yes
• Environment
• Operating: -20°C to 85°C
• Storage: -40°C to 85°C
• Weight: 0.03 kg
• Applications
• 1G /2G Fibre Channel (1GFC, 2GFC)
• 1000BASE-SX Gigabit Ethernet
