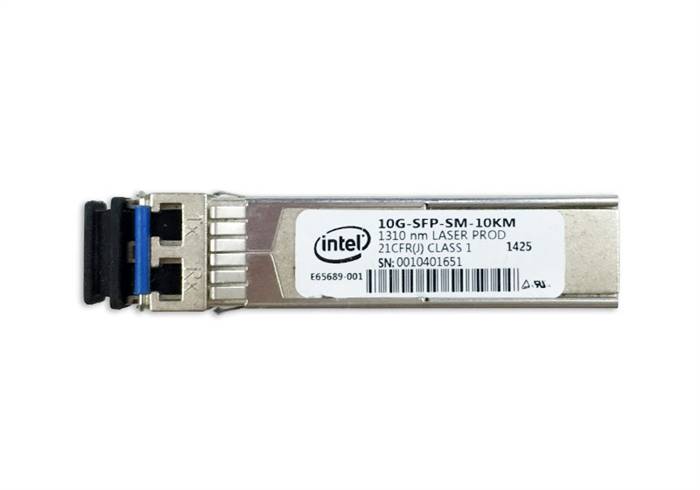

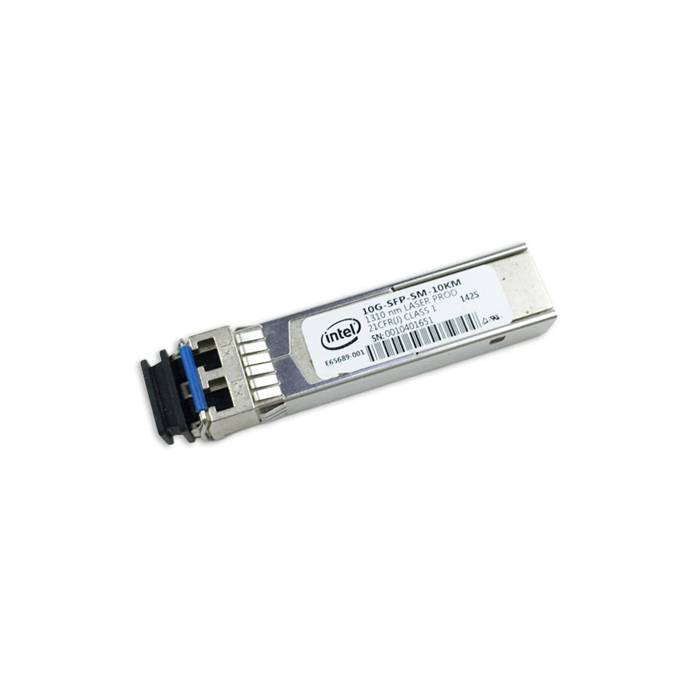

Genuine Intel 10G 1310nm SM 10km SFP+ Transceiver Module
Genuine Intel 10G-SFP-SM-10KM

Alternative Views:
Our Price: $60.00
Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Business Days


Product Code: 10G-SFP-SM-10KM
Qty:

Description

The Intel 10G-SFP-SM-10KM SFP+ transceiver supports up to 10km over OS2 SMF via an LC duplex connector. This transceiver is compliant with SFF-8431, SFF-8432 and IEEE 802.3ae 10GBASE-LR/LW, and 10G Fibre Channel 1200-SM-LL-L. Digital diagnostics monitoring is available via a 2-wire serial interface, as specified in SFF-8472. Featuring low power consumption, high speed, this 10G SFP+ transceiver is ideal for data center, 10G Ethernet and Fibre Channel etc.

Features
  • Genuine Intel 10G-SFP-SM-10KM
  • Operating data rate up to 10.3Gbps
  • 1310nm DFB Transmitter
  • Distance up to 10km
  • Single 3. 3V Power supply and TTL Logic Interface
  • Duplex LC Connector Interface,Hot Pluggable
  • Compliant with MSA SFP+ Specification SFF-8431
  • Compliant with 10GFC 1200-SM-LL-L FC standard
  • Compliant with 8.5G FC-PI-4 800-SM-LC-L FC standard
  • Compliant with 4.25G FC-PI-4 400-SM-LC-L FC standard
  • Compliant with 2.125G FC-PI-4 200-SM-LC-L FC standard
  • Compliant with 1.0625G FC-PI-4 100-SM-LC-L FC standard
  • Compliant with IEEE 802.3ae 10GBASE-LR/LW
  • Operating Case Temperature Standard:0?~+70?

Applications
  • 10GBASE-SR at 9.953Gbps
  • 10GBASE-SW at 10.3125Gbps
  • 1000Base-SX Ethernet
  • 8x FC at 8.5Gbps
  • 4x FC at 4.25Gpbs
  • 2x FC at 2.125Gpbs
  • 1x FC at 1.0625Gbps
  • Other Optical Link
