Genuine Nokia 1AB376720002 SFP GbE LX IT S1.1 1000Base-LX 1310nm 10km Transceiver Module
Genuine Nokia 1AB376720002

Alternative Views:


Our Price: $20.00
Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Business Days


Product Code: 1AB376720002
Qty:

Description

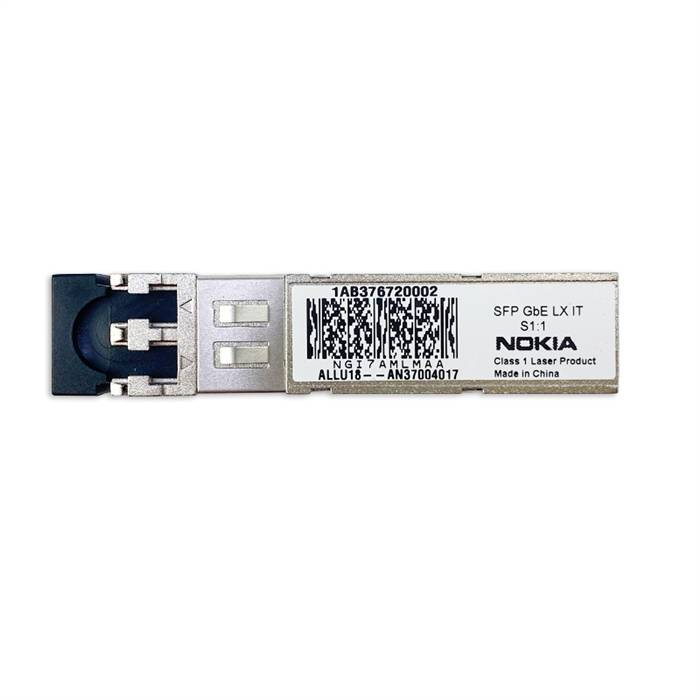

This Nokia 1AB376720002 is SFP (Small Form factor Pluggable) transceiver, operating over duplex SMF. It has minimum guaranteed optical budget of 13 dB, with in most cases is enough to reach about 10 km distance. It support DDM/DOM optical diagnostics, with provide diagnostic information about the present operating conditions. This Nokia 1AB376720002 operates in standard 0°-70°C temperature range and has duplex LC connector. The SFP supports 1.063-1.25Gbps data rate and such applications as Gigabit Ethernet (1.25 Gbps), 1G Fiber Channel (1.0625 Gbps). The SFP optical transceiver is multi-purpose module used in number of different places of today's networking.

Specifications
  • Brand: Nokia
  • Part Number: 1AB376720002
  • Form Factor: SFP
  • Connector: Duplex LC
  • Data Rate (max): 1.063-1.25Gbps
  • Wavelength: 1310nm
  • Distance: 10 km
  • Transmitter Type: FP Laser
  • Receiver Type: PIN photodiode
  • Minimum Transmitting Power: -9 dB
  • Maximum Transmitting Power: 3 dB
  • Receiver Sensitivity: -22 dBm
  • Receiver Overload: -3 dBm
  • Diagnostics: Digital
  • Voltage Supply: 3.3
