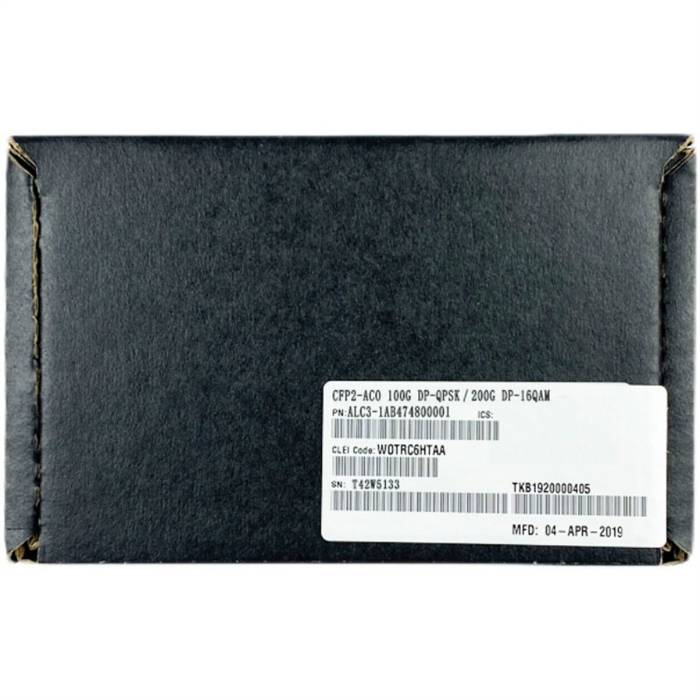

Nokia ALC3-1AB474800001 CFP2-ACO 100G DP-QPSK/200G DP-16QAM WOTRC6HTAA

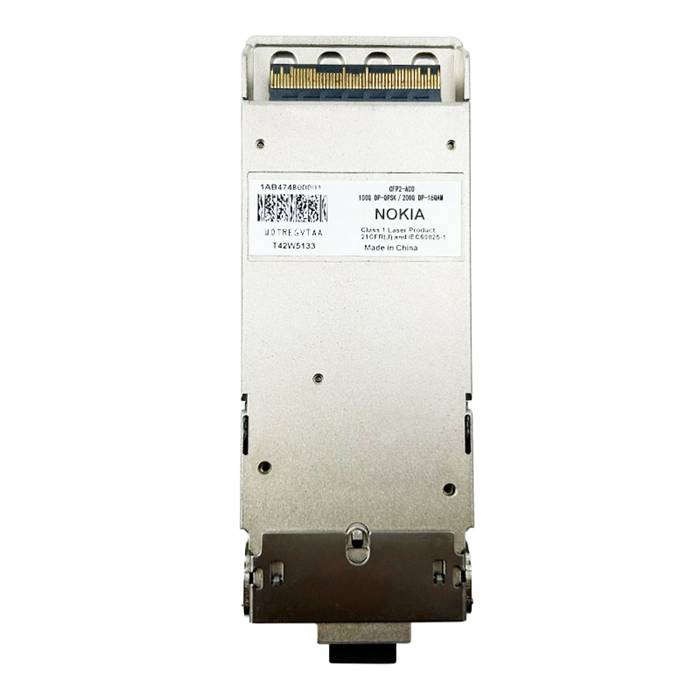

The Nokia CFP2-ACO 100G/200G pluggable transceiver is a hot-pluggable CFP2 MSA-compatible module designed for 4x32Gbaud (128 Gbps) coherent point-to-point and metro applications. An IEEE802.3 Clause 45 compliant 1.2 V LVCMOS MDIO interface is used for control, alarms, monitors, and diagnostics. The module mechanical outline is the standard CFP2 MSA size (106 mm x 41.5 mm x 12.4 mm). Electrical interfaces are provided through the 104-pin CFP2 MSA-compliant connector, with 4x32 Gbps analog electrical interface and optical interfaces through two LC optical receptacle connectors.

Features

• Supports 111.8 - 128.7 Gbps PM-QPSK transmission or 16QAM for 256 Gbps with linear drive
• 0 dBm per channel typical optical output power (higher power variants also available)
• Wide dynamic Rx input power range -18 dBm to 0 dBm
• CFP MSA MDIO IEEE802.3 compatible
• Single 3.3 V supply
• Power consumption 12 W

Applications

• Dispersion/PMD limited point-to-point metro
• OSNR limited multi-haul regional/long haul
