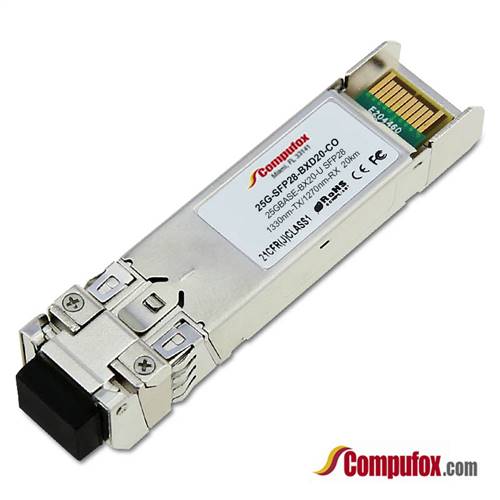

25G-SFP28-BXD20-CO | Brocade Compatible 25G BIDI SFP28 Transceiver
25G-SFP28-BXD20-CO | Brocade Compatible 25G SFP28 Transceiver

Our Price: $129.00

Warranty: 1 Year Warranty


Product Code: 25G-SFP28-BXD20-CO


Compatibility: 		Please input the model of the switch or router on which you will install this transceiver

Labeling Options: 		Compufox Logo
Generic Label - No Logo (3 to 4 days to ship)
Your Logo - Min Qty: 20 (3 to 4 days to ship) [Add $3.00]

Qty:
Description

Brocade 25G-SFP28-BXD20 Compatible 25GBASE-BX20-D SFP28 Optical Transceiver Module (SMF, 1330nm-TX/1270nm-RX, 20km, LC, DOM).

Compufox 25G-SFP28-BXD20 is a high-performance Bi-Directional (BiDi) SFP28 optical module designed for 25 Gigabit Ethernet and 5G fronthaul deployments. Utilizing Wavelength Division Multiplexing (WDM) , it enables 25.78Gbps data transmission over a single strand of single-mode fiber (SMF) at distances up to 20km.


Important Installation Note: This is a Downstream (BX20-D) module. To establish a functional link, it must be used in a pair with the complementary 25GBASE-BX20-U (1270nm-TX/1330nm-RX) Upstream transceiver.

Key Features:

  • 20km Reach Capability: Specifically engineered for longer spans where standard 10km BiDi modules fall short.
  • Signal Integrity: Equipped with integrated TX and RX CDR (Clock and Data Recovery) to ensure clean, low-jitter performance.
  • Efficient Power Profile: Maintains a low thermal footprint with power consumption of ≤1.2W.

Specifications:
Form Factor SFP28 Max Data Rate 25.78Gbps
Wavelength 1330nm-TX/1270nm-RX Max Cable Distance 20km
Connector Simplex LC Media SMF
Transmitter Type DFB BiDi Receiver Type PIN
TX Power 0–6dBm Receiver Sensitivity <-14dBm
Power Budget 14dB Receiver Overload 2.5dB
Power Consumption ≤1.2W Extinction Ratio 3.5dB
DDM/DOM Supported Commercial Temperature Range 0 to 70°C (32 to 158°F)
CDR TX and RX Protocols eCPRI, SFF-8472, SFF-8432, SFF-8431


MUST BE PAIR with...
