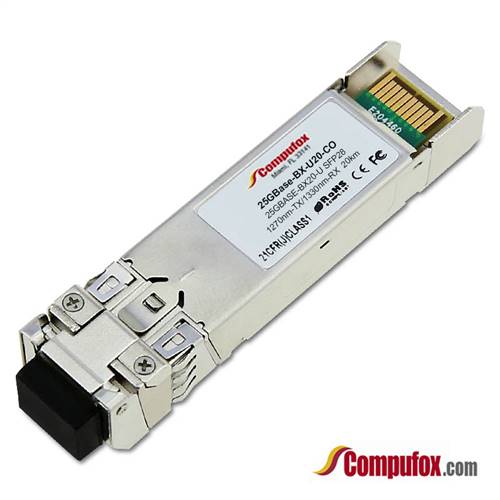

25GBase-BX-U20-CO | Huawei Compatible 25G BIDI SFP28 Transceiver
25GBase-BX-U20-CO | Huawei Compatible 25G SFP28 Transceiver

Our Price: $129.00

Warranty: 1 Year Warranty


Product Code: 25GBASE-BX-U20-CO


Compatibility: 		Please input the model of the switch or router on which you will install this transceiver

Labeling Options: 		Compufox Logo
Generic Label - No Logo (3 to 4 days to ship)
Your Logo - Min Qty: 20 (3 to 4 days to ship) [Add $3.00]

Qty:
Description

Huawei 25GBase-BX-U20 Compatible 25GBASE-BX20-U SFP28 Optical Transceiver Module (SMF, 1270nm-TX/1330nm-RX, 20km, LC, DOM).

Compatible 25GBase-BX-U20 is a Bi-Directional (BiDi) SFP28 optical module designed for 25 Gigabit Ethernet and 5G fronthaul (eCPRI) deployments. This module allows for data transmission over a single strand of single-mode fiber (SMF) at distances up to 20km, providing a cost-effective solution for expanding network capacity without laying new fiber.


Important Installation Note: This is an Upstream (BX20-U) module. To establish a functional link, it must be used in a pair with the matching 25GBASE-BX20-D (1330nm-TX/1270nm-RX) Downstream transceiver.

Key Features:

  • Extended 20km Reach: Double the distance of standard BiDi modules, ideal for campus and metro applications.
  • Integrated CDR: Features built-in Clock and Data Recovery (CDR) on both TX and RX for superior signal stability at 25.78Gbps.
  • Low Power Design: Highly efficient operation with a maximum power consumption of ≤1.2W.

Specifications:
Form Factor SFP28 Max Data Rate 25.78Gbps
Wavelength 1270nm-TX/1330nm-RX Max Cable Distance 20km
Connector Simplex LC Media SMF
Transmitter Type DFB BiDi Receiver Type PIN
TX Power 0–6dBm Receiver Sensitivity <-14dBm
Power Budget 14dB Receiver Overload 2.5dB
Power Consumption ≤1.2W Extinction Ratio 3.5dB
DDM/DOM Supported Commercial Temperature Range 0 to 70°C (32 to 158°F)
CDR TX and RX Protocols eCPRI, SFF-8472, SFF-8432, SFF-8431
