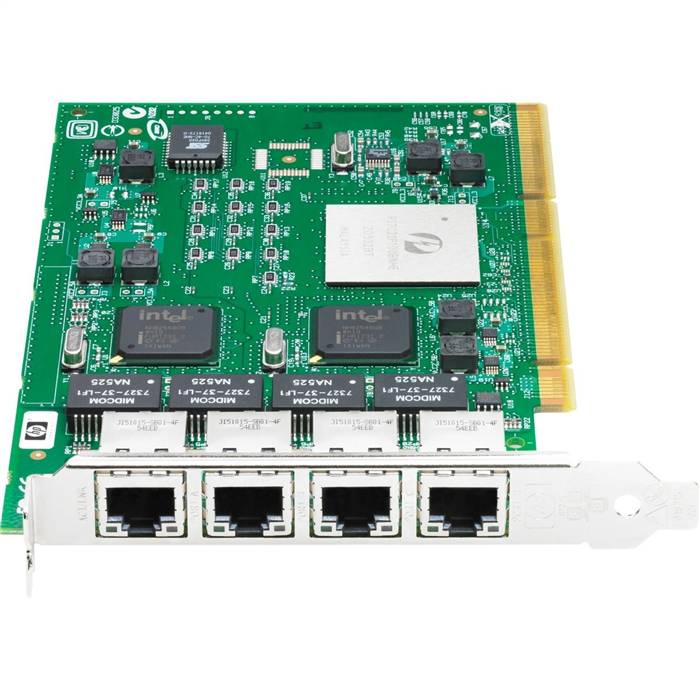

This item, 391661-B21, is the HPE option part number for the product described as NC340T PCI-X 4-port 1000T Gigabit Server Adapter. Further details below.
HPE Option Part #: 391661-B21
HPE Spare Part #: 389996-001
HPE Assembly Part #: 389931-001
The HPE 391661-B21 Ethernet Network Adapters have Quad ports to connect desktop and server systems to the network. The HPE 391661-B21 network card has 10Gbps data transfer rate and includes Wake on LAN (WOL). This Quad Port Network Adapter has 1 Year Warranty.
General
- Device Type: Network adapter - 2 ports
- Form Factor: Plug-in card
- Interface (Bus) Type: PCI Express x8
- PCI Specification Revision: PCI-X 1.0a
- Bus Voltage: 3.3 V
Networking
- Connectivity Technology: Wired
- Cabling Type: 4x InfiniBand (SFF-8470)
- Data Link Protocol: InfiniBand
- Data Transfer Rate: 10 Gbps
- Features: Half duplex mode, full duplex mode
Processor / Memory
- Processor: 1 x Mellanox InfiniRISC III
- RAM: 128 MB
Expansion & Connectivity
- Interfaces: 2 x network - microGiGaCN
- Compatible Slots: 1 x PCI Express x8
Miscellaneous
- Compliant Standards: FCC Class B certified, CISPR 22 Class B, EN 60950, IEC 60950, UL 60950, CSA 22.2 No. 60950
System Requirements
- OS Required: SuSE Linux Enterprise Server 8, Red Hat Enterprise Linux 2.1, Red Hat Enterprise Linux 3
Dimensions & Weight
- Depth: 2.50 inch
- Height: 6.60 inch
Environmental Parameters
- Min Operating Temperature: 32 °F
- Max Operating Temperature: 131 °F
- Humidity Range Operating: 0 - 85%
Compatibility Information
Designed For HPE ProLiant DL Series: DL140 Gen2, DL145 Gen2, DL320 Gen3, DL360 Gen4, DL360 Gen4p, DL380 Gen4, DL380 Gen4 High Performance, DL385, DL580 Gen3, DL585
