Genuine Nokia 3AL82099AAAA 100GBase-SR4 850nm MMF 100m QSFP28 Optical Transceiver

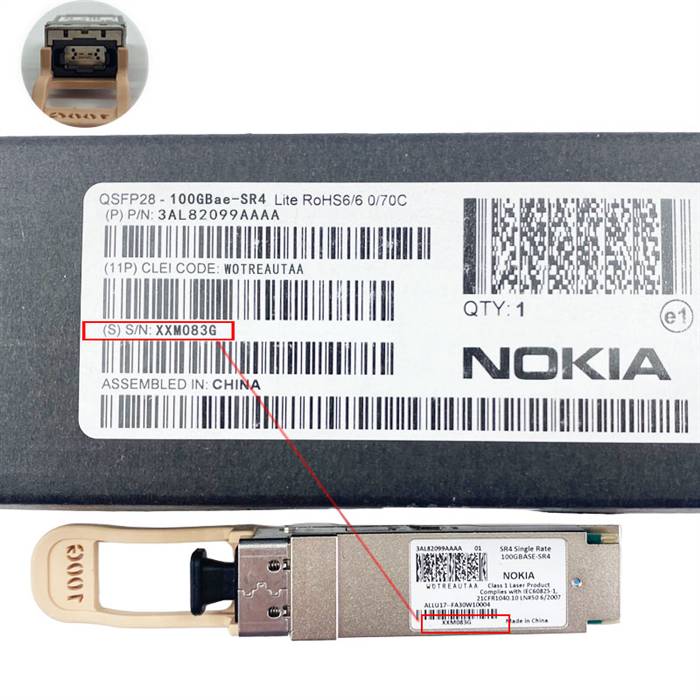

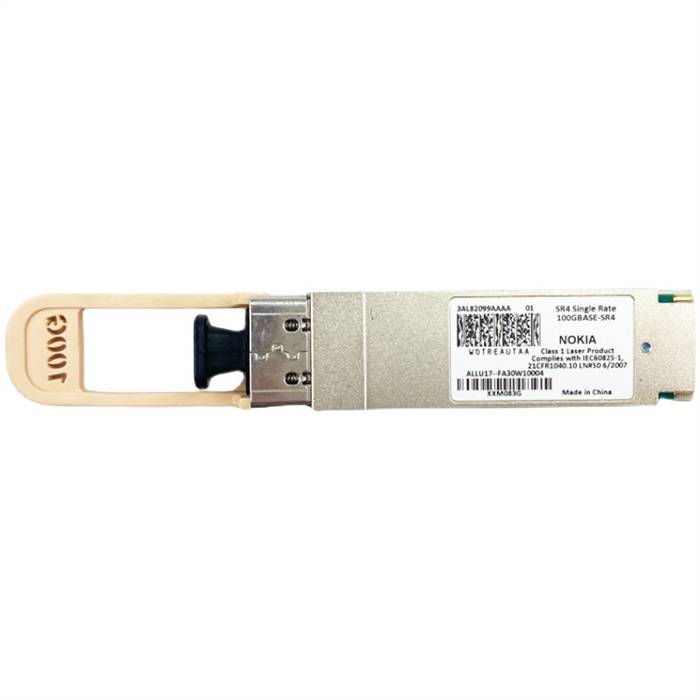

Genuine Nokia 3AL82099AAAA

Alternative Views:
Our Price: $1,800.00
Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Business Days


Product Code: 3AL82099AAAA
Qty:

Description

The Nokia 3AL82099AAAA 100GBASE-SR4 QSFP28 Optical Transceiver Module is designed for use in 100GBASE Ethernet throughput up to 100m over OM4 multimode fiber (MMF) using a wavelength of 850nm via a MTP/MPO-12 connector. This transceiver is compliant with IEEE 802.3bm 100GBASE-SR4 and CAUI-4 standard. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP28 MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as data centers, high-performance computing networks, enterprise core and distribution layer applications.

Features
  • Genuine Nokia 3AL82099AAAA
  • High Quality MACOM Chip
  • VCSEL+PIN, Built-in Dual CDR
  • ?1.8W (Typical) Low Power Consumption
  • Fully Compatible with 200+ Vendors
  • Hot Pluggable QSFP28 MSA Compliant

Applications
  • 100GBASE Ethernet
  • Data Center
  • Campus

Specifications
  • Brand: Nokia
  • Part Number: 3AL82099AAAA
  • Form Factor: QSFP28
  • Max Data Rate: 103.125Gbps (4x 25.78Gbps)
  • Wavelength: 850nm
  • Max Cable Distance : 70m@OM3, 100m@OM4
  • Connector: MTP/MPO-12
  • Cable Type: MMF
  • Transmitter Type: VCSEL 850nm
  • Receiver Type: PIN
  • DDM/DOM: Supported
  • Commercial Temperature Range: 0 to 70°C (32 to 158°F)
  • TX Power: -8.4~2.4dBm
  • Receiver Sensitivity: <-10.3dBm
  • Powerbudget: 1.9dB
  • Receiver Overload: 2.4dBm
  • Typical Power Consumption: ?1.8W
  • Extinction Ratio: ?3dB
  • Modulation Format: NRZ
  • CDR (Clock and Data Recovery): TX & RX Built-in CDR
  • Transmit and Dispersion Penalty: 5dB
  • Host FEC: Supported
  • Packaging Technology: COB (chip on board) Packaging
  • EMC (Electromagnetic Compatibility): Supported
  • Protocols: IEEE 802.3bm, QSFP28 MSA, SFF-8665, SFF-8636, RoHS, CPRI, eCPRI
