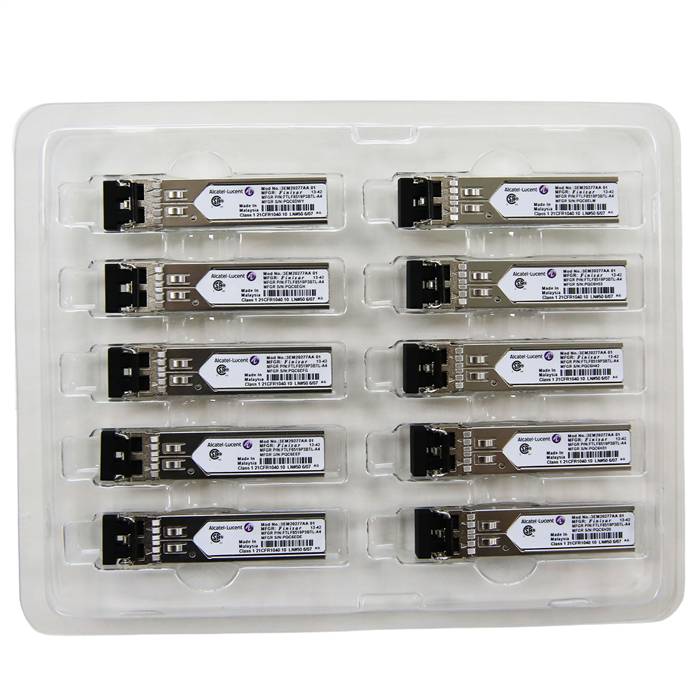

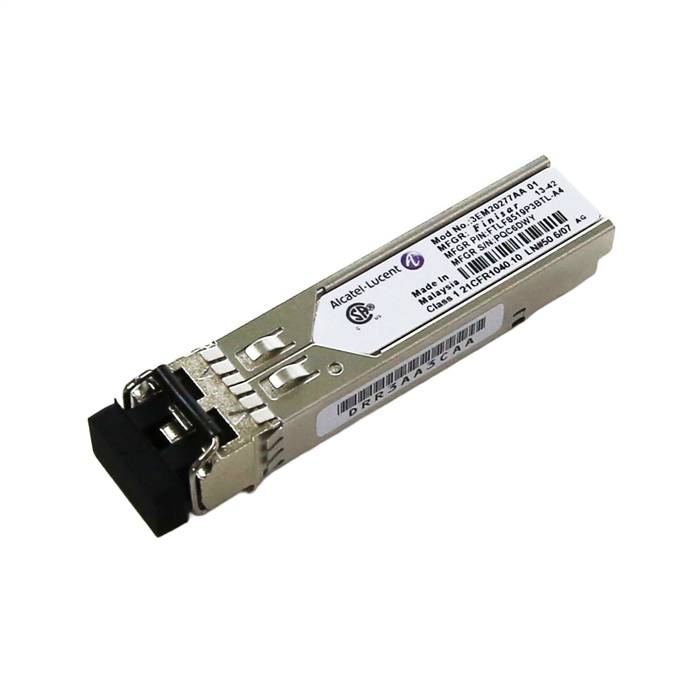

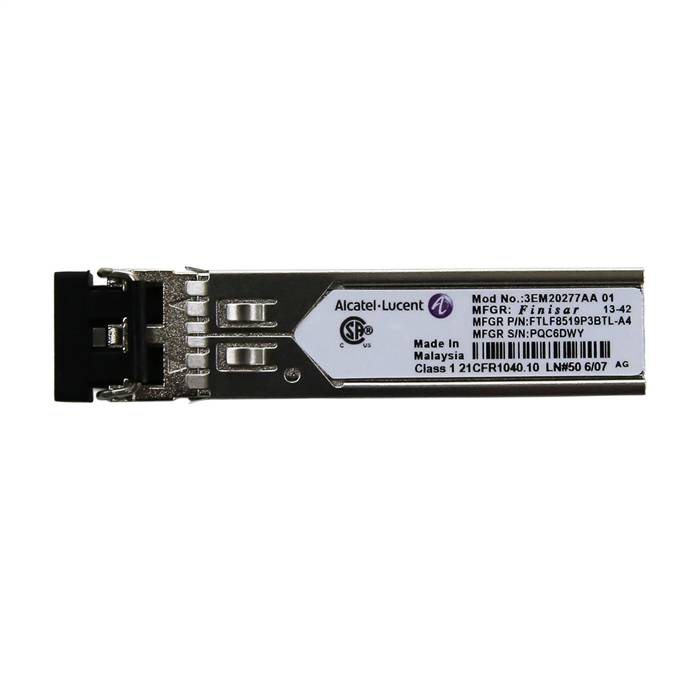

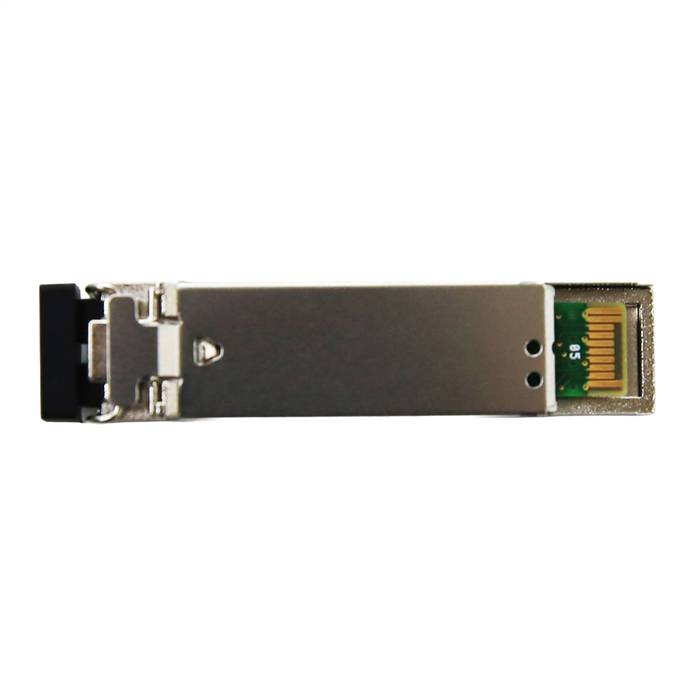

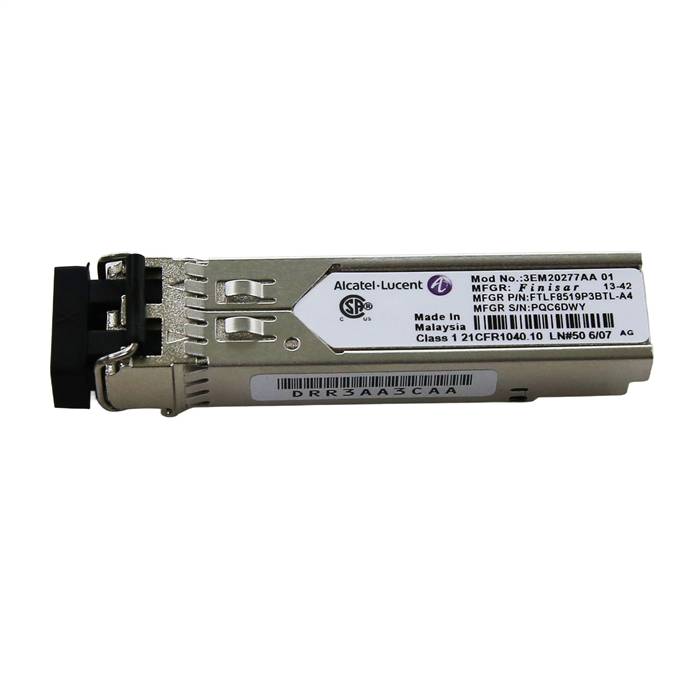

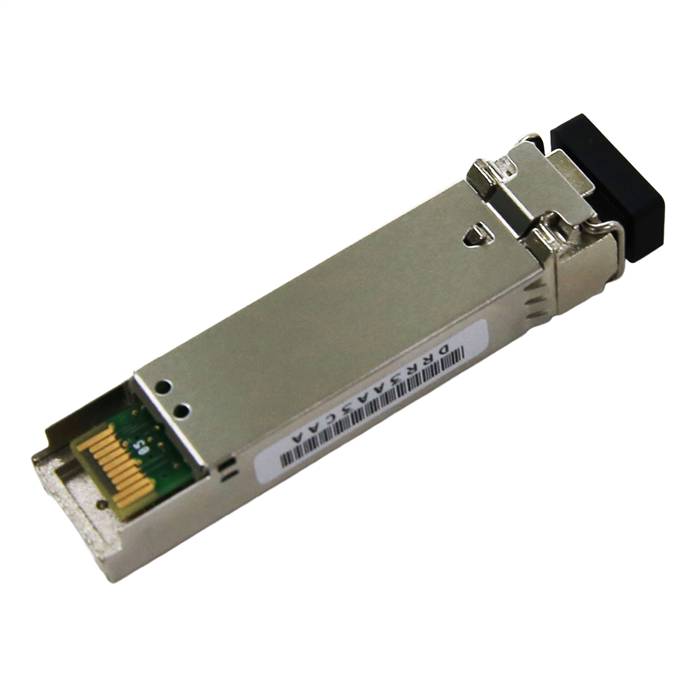

Alcatel-Lucent 3EM20277AA 3EM20277AA01 1000BASE-SX 850nm Multi-Mode Optical SFP FTLF8519P3BTL-A4

These Alcatel-Lucent 3EM20277AA 3EM20277AA01 Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). They are simultaneously compatible with Gigabit Ethernet as specified in IEEE Std 802.3 and Fibre Channel FC- PI-2 Rev. 5.0. The transceiver is RoHS compliant and per Directive 2011/65/EU.

Specifications

• Brand: Alcatel-Lucent
• Part Numbers: 3EM20277AA, 3EM20277AA01, DRR3AA3CAA, FTLF8519P3BTL-A4
• Up to 2.125 Gb/s bi-directional data links
• Hot-pluggable SFP transceiver module
• 1.25 Gb/s 1000Base-SX Ethernet
• 2 Gb/s Fibre Channel Compliant
• 850nm Oxide VCSEL laser transmitter
• Up to 500m on 50/125_m MMF
• Up to 300m on 62.5/125_m MMF
• Duplex LC connector
• RoHS Compliant and Lead-Free
• Built-in digital diagnostic functions
• Metal enclosure, for lower EMI
• Single 3.3V power supply
• Industrial temperature range: -40°C to 85°C

Applications

• 1.25 Gb/s 1000Base-SX Ethernet
• Dual Rate 1.063/2.125 Gb/s Fibre Channel
• Wireless - CPRI, OBSAI, LTE
