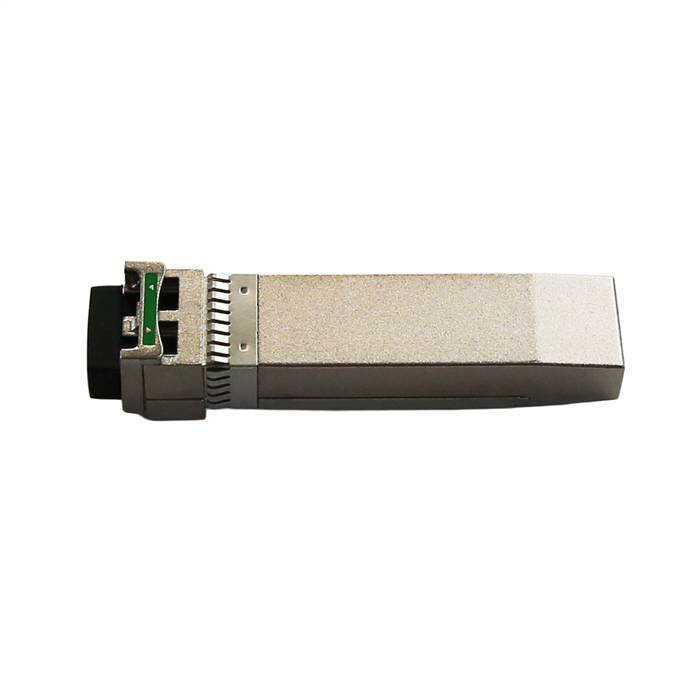

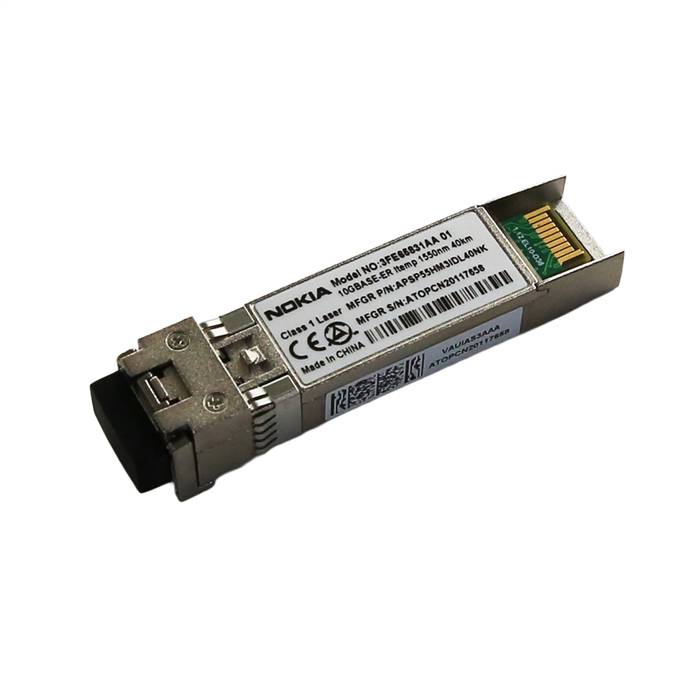

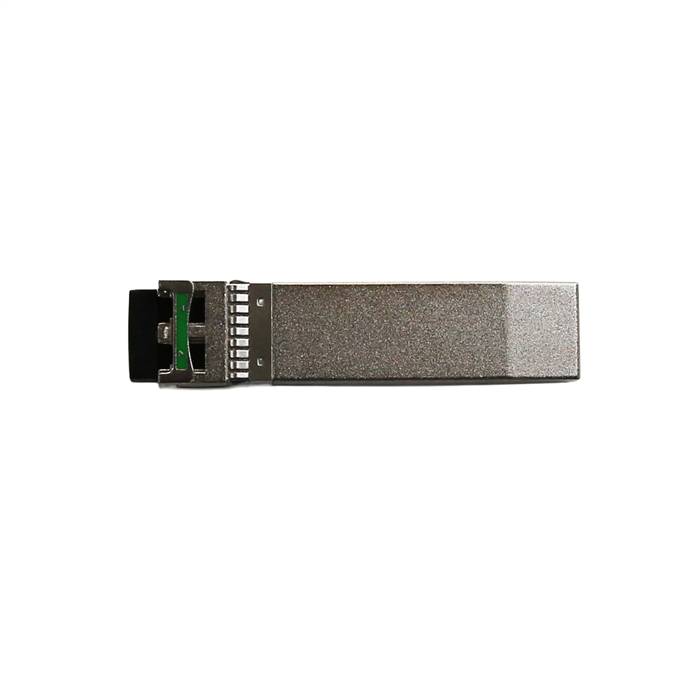

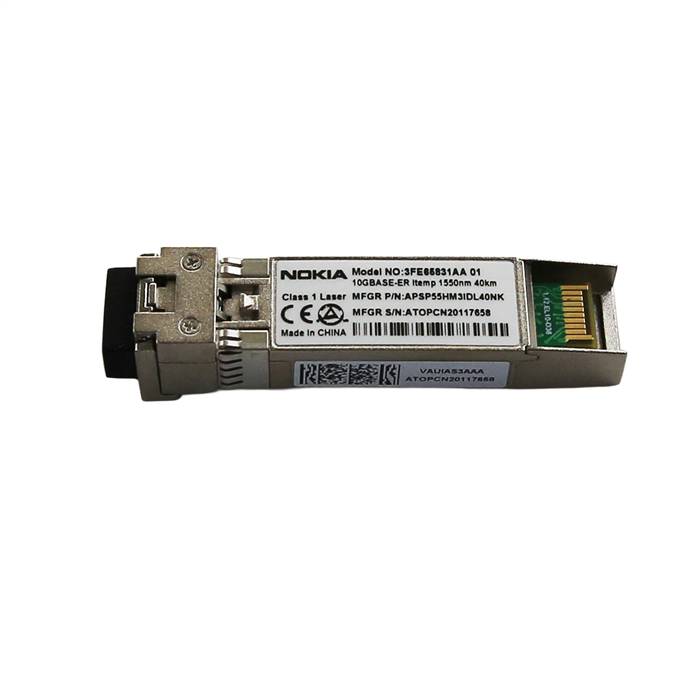

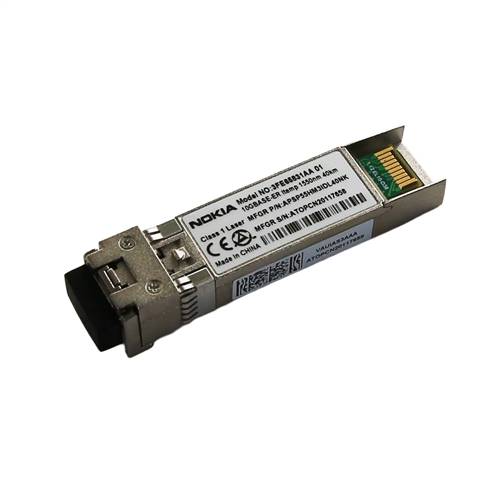

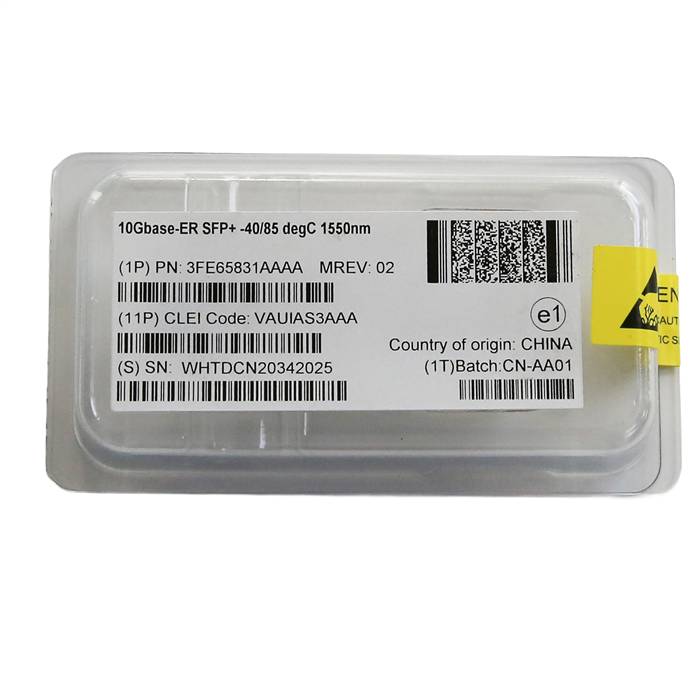

Nokia 3FE65831AAAA 3FE65831AA01 10Gbase-ER SFP+ Itemp -40/85 degC 1550nm 40km VAUIAS3AAA

This Nokia 3FE65831AAAA transceiver uses a high-quality DFB Laser transmitter operating at 1550 nm nominal wavelength and a 1550 nm PIN Photodiode receiver. This module supports DDM/DOM optical diagnostics and provides diagnostic data about the current operating conditions. This module has a duplex LC connector and the module is designed for operation in industrial temperature networking environments ranging from -40° to 85°C. The transceiver chipset supports data rates ranging from 1.25-10.31 Gbps and such applications as 10G Ethernet (10.31 Gbps), Gigabit Ethernet (1.25 Gbps), STM-64 (9.95 Gbps).

Specifications

• Brand: Nokia
• Part Number(s): 3FE65831AA01, 3FE65831AAAA
• MFGR P/N: APSP55HM31DL40NK
• CLEI Code: VAUIAS3AAA
• Transceiver Type: SFP+
• Media Type: Single-Mode Fiber (SMF)
• TX Wavelength:  1550 nm
• RX Wavelength:  1550 nm
• Minimum Optical Budget: 14 dB
• Maximum Distance: 40km
• Supported Data Rate: 1.25-10.31 Gbps
• Supported Applications: 10G Ethernet (10.31Gbps), Gigabit Ethernet (1.25 Gbps), STM-64 (9.95Gbps)
• DDM/DOM: Support
• Temperature Range: Industrial -40° to 85°C
• Connectors: Duplex LC
• Tx Wavelength Bandwidth: 37 nm (1528-1565 nm)
• Rx Wavelength Bandwidth: 37 nm (1528-1565 nm)
• Minimum Transmitting Power: -1 dB
• Maximum Transmitting Power: 4 dB
• Receiver Sensitivity: -15 dBm
• Receiver Overload: 0.5 dBm
• Dispersion: 800-1000 ps/nm
• Transmitter Type: DFB Laser
• Receiver Type: PIN photodiode
• Power: +3.3V single power supply
• Compliance: CE, Class 1 FDA and IEC60825-1 Laser Safety Compliant, RoHS, SFF-8431, SFP MSA
