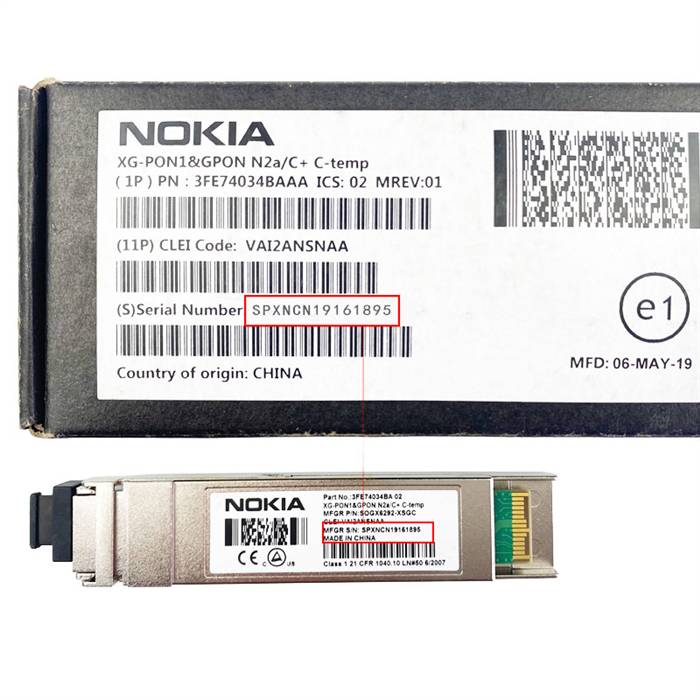

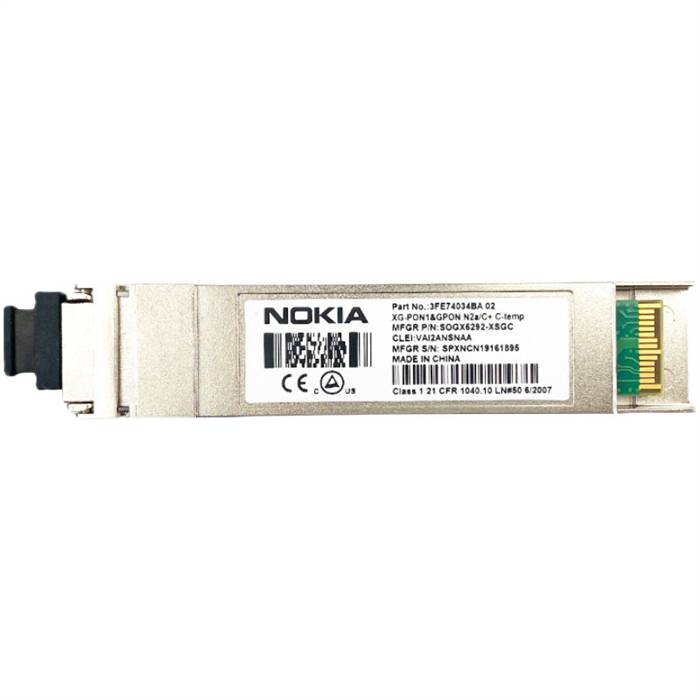

3FE74034BAAA - Genuine Nokia XG-PON1 & GPON N2a/C+ C-Temp XFP SOGX6292-XSGC

Features

• Support ITU-T G.987.2 XGPON OLT side application
• Single fiber bi-directional data links with asymmetric 9.953Gbps downstream and 2.488Gbps upstream
• Integrated with micro-optics WDM filter for dual wavelength Tx/Rx operation at 1577nm/1270nm
• 1577nm continuous-mode transmitter with EML laser
• 1270nm burst-mode receiver with APD-TIA
• 2-wire interface for integrated digital diagnostic Monitoring
• Digital receiving signal strength indication (RSSI)
• XFP MSA package with SC receptacle optical interface
• +3.3V power supplies
• Operating case temperature: 0~70°C
• RoHS With Exemption

Specifications

• Brand: Nokia
• Part Number: 3FE74034BAAA
• MPN: SOGX6292-XSGC, LTH5306-PCA+
• Data rate: 10Gbs
• Distance: 20km
• Wavelength: 1577nmT/1270nmR
• Transmitter: 9.9 Gb/s 1577nm EML
• Receiver: Dual Rate 9.9/2.5 Gb/s APD
• DDM: Yes
• Connector: SC/UPC
• Operating Temperature: 0°C to 70°C
• Voltage Supply: 3.3V

Standards

• Complies with INF-8077i
• Complies with ITU-T G.987.2
• Complies with FCC 47 CFR Part 15, Class B
• Complies with FDA 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007
