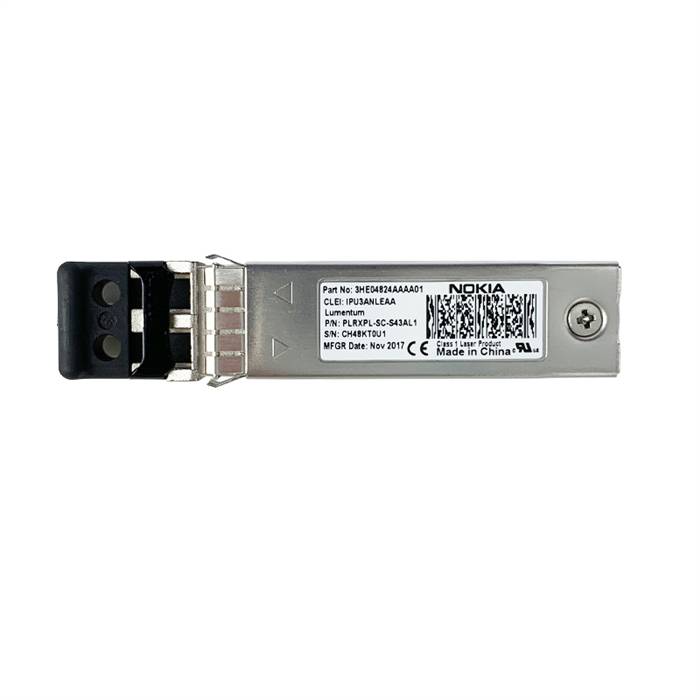

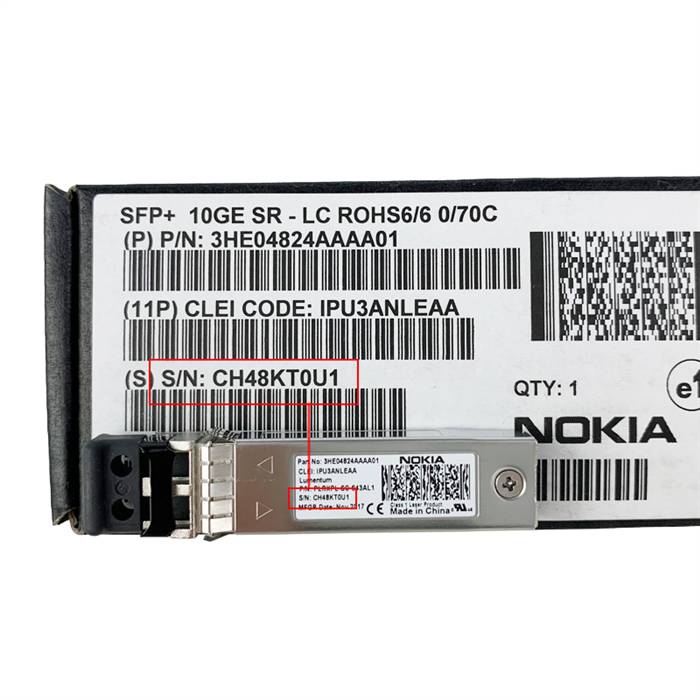

Nokia 3HE04824AA 3HE04824AAAA01 10GBASE-SR SFP+ 850nm 300m DOM Duplex LC MMF Optical Transceiver Module IPU3ANLEAA

This Nokia 3HE04824AA 3HE04824AAAA01 SFP+ transceiver supports up to 300m link lengths over MMF via an LC duplex connector. This transceiver is compliant with SFF-8431, SFF-8432 and IEEE 802.3ae standards. Digital diagnostics monitoring is available via a 2-wire serial interface, as specified in SFF-8472. Featuring low power consumption, high speed, this 10G SFP+ transceiver is ideal for data center, enterprise wiring closet, service provider transport application, Radio & Baseband Unit, etc.

Specifications

• Brand: Nokia
• Part Numbers: 3HE04824AA, 3HE04824AAAA01, IPU3ANLEAA
• Form Factor: SFP+
• Max Data Rate: 10.3125Gbps
• Wavelength: 850nm
• Max Cable Distance: 300m
• Connector: Duplex LC
• Media: MMF
• Transmitter Type: VCSEL
• Receiver Type: PIN
• TX Power: -7.3~-1dBm
• Receiver Sensitivity: < -11.1dBm
• Powerbudget: 3.8dB
• Receiver Overload: 0.5dBm
• Typical Power Consumption: ?0.6W
• Extinction Ratio: >3dB
• Operation Temperature Range: 0 to 70°C (32 to 158°F)
