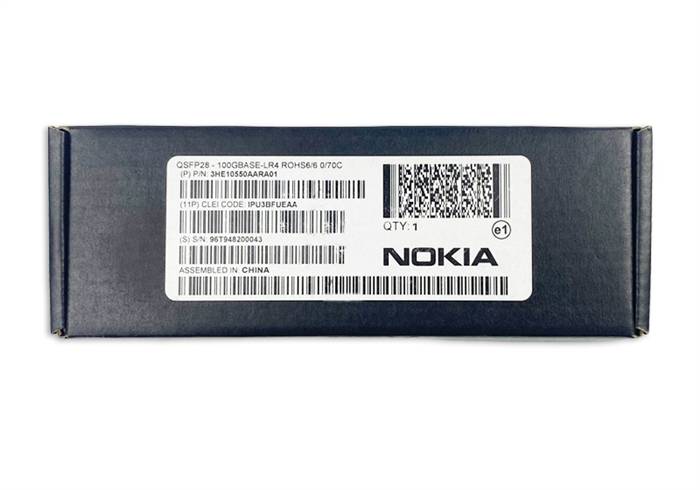

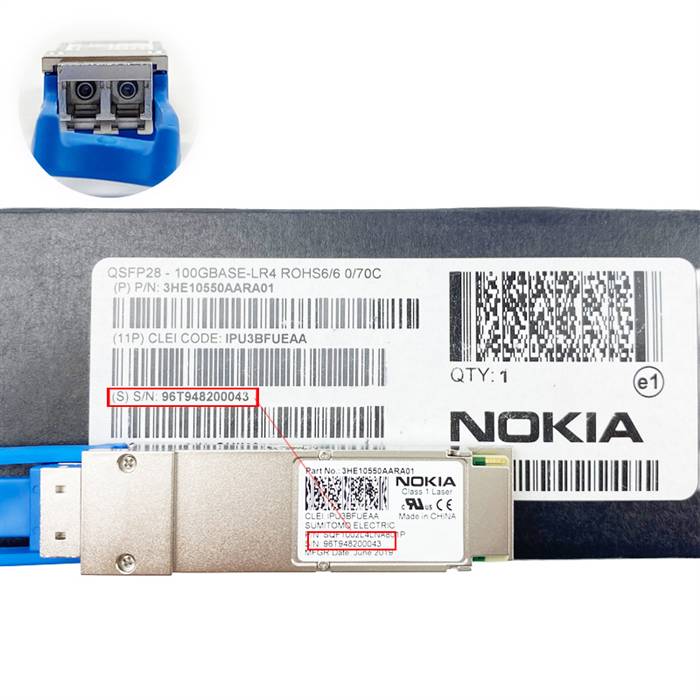

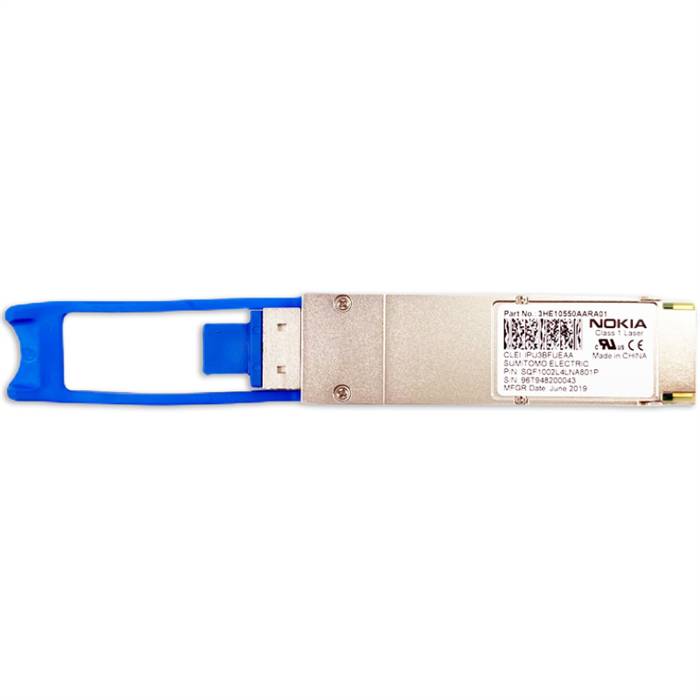

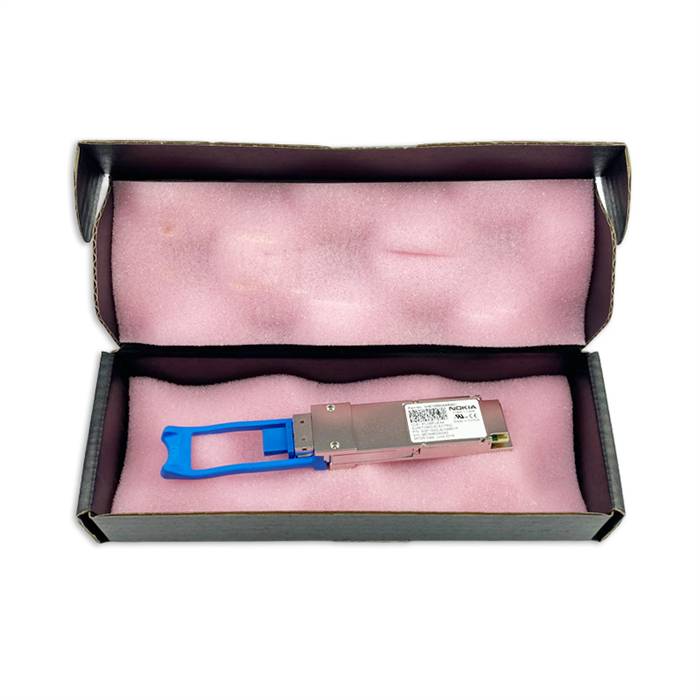

Genuine Nokia 3HE10550AARA01 IPU3BFUEAA 100GBASE-LR4 QSFP28 ROHS6/6 0/70C 10km Transceiver
Genuine Nokia 3HE10550AARA01 IPU3BFUEAA

Alternative Views:
Our Price: $1,600.00
Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Business Days


Product Code: 3HE10550AARA01
Qty:

Description

The Nokia 3HE10550AARA01 IPU3BFUEAA QSFP28 transceiver modules are designed for use in 100 Gigabit Ethernet and 4x28G OTN client interfaces  over 10km of single mode fiber.  They are compliant with the QSFP28 MSA, IEEE 802.3ba 100GBASE-LR4, and OTU4 4I1-9D1F requirements specified in ITU-T Recommendations G.959.1/G.709 and Supplement 39 (G.sup39). Digital diagnostics functions are available via the I2C interface, as specified by the QSFP28 MSA. The optical transceiver is RoHS compliant as described in Application Note AN-2038.

Features
  • Genuine Nokia 3HE10550AARA01
  • Hot-pluggable QSFP28 form factor
  • Supports 103.1Gb/s aggregate bit rate
  • 3.5W maximum power dissipation
  • RoHS compliant
  • Single 3.3V power supply
  • Maximum link length of 10km on Single Mode Fiber (SMF)
  • 4x25Gb/s 1310nm DFB-based transmitter
  • 4x25G electrical interface
  • Full digital diagnostics functions
  • Integrated 4-channel WDM mux/demux for duplex LC operation
  • Duplex LC receptacles

Applications
  • 100GBASE-LR4 100G Ethernet
  • OTN OTU4 4I1-9D1F

Specifications
  • Part Numbers: 3HE10550AARA01, IPU3BFUEAA
  • MPN: FTLC1154RDPL-A5, SQF1002L4LNA801P
  • Form Factor: QSFP28
  • Data Rate (max): 112 Gb/s
  • Connector: Dual LC
  • Wavelength: 1295.56, 1300.05, 1304.58, 1309.14 nm
  • Distance: 10 km
  • Transmitter: 4x LWDM DFB Laser
  • Receiver: PIN
  • Diagnostics: Digital
  • Protocol: OTN OTU4 Compliant 100G Ethernet Compliant
  • Voltage Supply: 3.3
  • Temperature: Standard 0°~70°C
