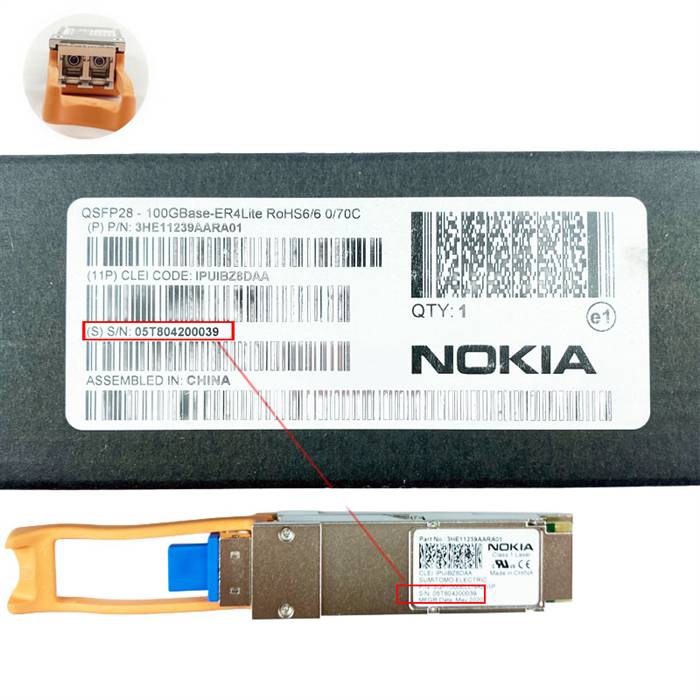

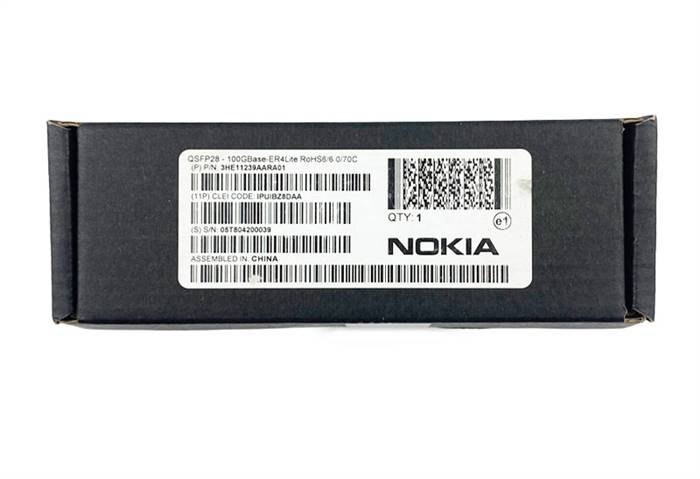

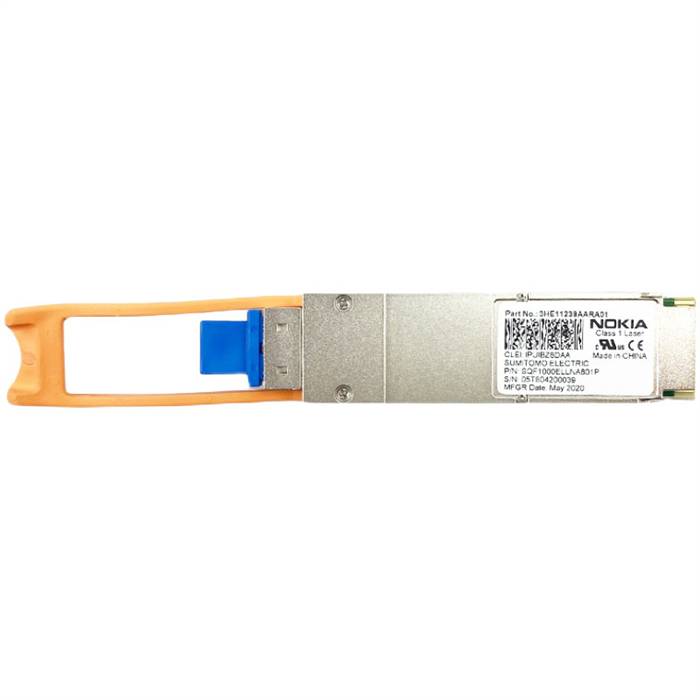

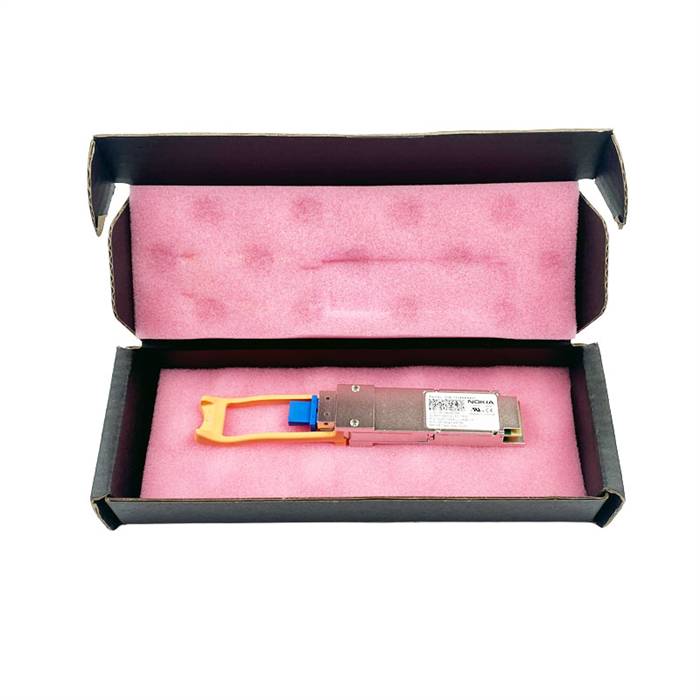

Genuine Nokia 100GBASE-ER4 Lite 40km SMF QSFP28 Transceiver Module
Genuine Nokia 3HE11239AARA01

Alternative Views:
Our Price: $1,950.00
Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Business Days


Product Code: 3HE11239AARA01
Qty:

Description

The Nokia 3HE11239AARA01 100GBASE-ER4 QSFP28 Optical Transceiver Module is designed for use in 100GBASE Ethernet throughput up to 40km over single mode fiber (SMF) using a wavelength of 1310nm via duplex LC connectors. Taking BOX+FPC+PCBA separate design, it has great reliability, airtightness and heat dissipation performance. This transceiver is compliant with IEEE 802.3ba 100GBASE-ER4 Lite standard. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP28 MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as 100G telecom connections, data centers, high-performance computing networks,enterprise core and distribution layer applications.

Features
  • Genuine Nokia 3HE11239AARA01
  • BOX Packaging, EML+APD, Built-in Dual CDR
  • ?4.5W Low Power Consumption
  • Fully Compatible With 200+ Vendors
  • For Data Center and Telecom Applications
  • Hot Pluggable QSFP28 MSA Compliant

Applications
  • 100GBASE Ethernet
  • Data Center

Specifications
  • Brand: Nokia
  • Part Number: 3HE11239AARA01
  • MPN: SQF1000ELLNA801P
  • Form Factor: QSFP28
  • Max Data Rate: 103.125Gbps (4x 25.78Gbps)
  • Wavelength: 1310nm
  • Max Cable Distance : 40km
  • Connector: Duplex LC
  • Cable Type: SMF
  • Transmitter Type: 4x EML
  • Receiver Type: APD
  • DDM/DOM: Supported
  • Commercial Temperature Range: 0 to 70°C (32 to 158°F)
  • TX Power: -2.9~4.5dBm
  • Receiver Sensitivity: <-20.9dBm
  • Powerbudget: 18dB
  • Receiver Overload: -4.9dBm
  • Typical Power Consumption: ?4.5W
  • Extinction Ratio: ?4dB
  • Modulation Format: NRZ
  • CDR (Clock and Data Recovery): TX & RX Built-in CDR
  • Host FEC: Supported
  • Packaging Technology: BOX Packaging
  • EMC (Electromagnetic Compatibility): Supported
  • Protocols: QSFP28 MSA Compliant
