IBM 42D0485 42D0491, 42D0486 Emulex 8Gb FC Single-port HBA for System x
42D0485 - IBM 42D0491, 42D0486

Our Price: $115.00
Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Business Days


Product Code: 42D0485
Qty:

Description

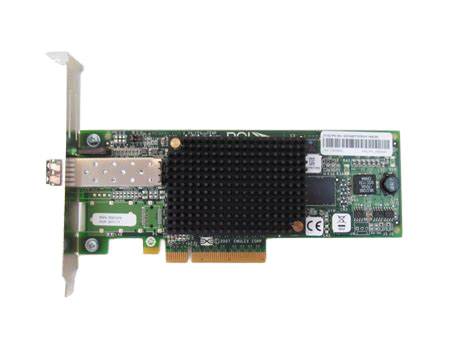

IBM 42D0485 42D0491, 42D0486 Emulex 8Gb FC Single-port HBA for System x

Features

  • Based on the Emulex LPe12000 (single port) and LPe12002 (dual port) adapters
  • Standard PCI Express card with low profile form factor
  • One or two independent Fibre Channel ports with optical modules included
  • PCI Express 2.0 host interface
  • Support for both standard and low-profile PCI Express slots
  • Auto-negotiation between 2 Gb, 4 Gb, or 8 Gb link attachments
  • Processes over 200K I/O operations per second (IOPS), per port
  • Support for up to 1600 MB per second maximum at full-duplex, per port

Fibre Channel specifications

  • Full support for all Fibre Channel topologies, including point-to-point (N_Port), arbitrated loop (NL_Port), and switched fabric (N_Port)
  • Support for F_Port and FL_Port login
  • Full support for Fibre Channel services class 2 and 3
  • Up to 4096 FC port logins and up to 4096 concurrent exchanges per FC port
