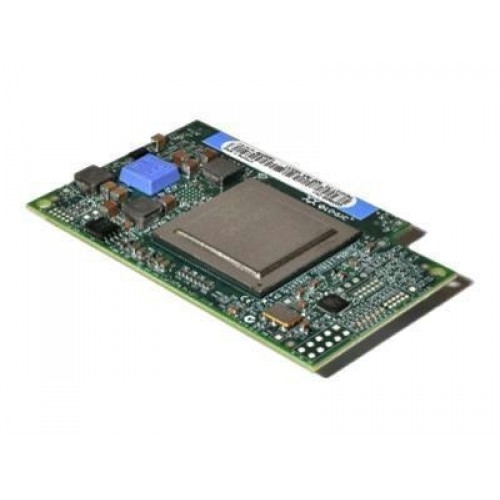

IBM 44X1945 44X1947, 44X1948 Dual-Port 8Gbps Fibre Channel Expansion Card by QLogic for BladeCenter
44X1945 - IBM 44X1947, 44X1948

Our Price: $150.00
Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Business Days


Product Code: 44X1945
Qty:

Description


IBM 44X1945 44X1947, 44X1948 Dual-Port 8Gbps Fibre Channel Expansion Card by QLogic for BladeCenter

Features

  • CIOv form factor
  • QLogic 2532 8Gb ASIC
  • PCI Express 2.0 host interface
  • Support for two full-duplex Fibre Channel ports at 8 Gbps maximum per channel
  • Support for Fibre Channel Protocol Small Computer System Interface (FCP-SCSI) and Fibre Channel
  • Internet Protocol (FC-IP)
  • Support for Fibre Channel service (class 3)
  • Support for switched fabric, point-to-point, and Fibre Channel Arbitrated Loop (FC-AL) connections
  • Support for NPIV when installed in the JS23/JS43
  • Configuration and boot support in BIOS and UEFI

Operating environment

  • Temperature: 10°C to 35°C (50°F to 95°F)
  • Relative humidity: 8% to 80% non-condensing

Supported operating systems

  • IBM AIX 5L for POWER Version 5.3
  • IBM AIX Version 6.1
  • IBM Virtual I/O Server
  • IBM i operating system 6.1
  • Microsoft Windows Essential Business Server 2008 Premium Edition
  • Microsoft Windows Essential Business Server 2008 Standard Edition
  • Microsoft Windows Server 2003, Web Edition
  • Microsoft Windows Server 2003/2003 R2, Enterprise Edition
  • Microsoft Windows Server 2003/2003 R2, Enterprise x64 Edition
  • Microsoft Windows Server 2003/2003 R2, Standard Edition
  • Microsoft Windows Server 2003/2003 R2, Standard x64 Edition
  • Microsoft Windows Server 2008 R2
  • Microsoft Windows Server 2008, Datacenter x64 Edition
  • Microsoft Windows Server 2008, Datacenter x86 Edition
  • Microsoft Windows Server 2008, Enterprise x64 Edition
  • Microsoft Windows Server 2008, Enterprise x86 Edition
  • Microsoft Windows Server 2008, Standard x64 Edition
  • Microsoft Windows Server 2008, Standard x86 Edition
  • Microsoft Windows Server 2008, Web x64 Edition
  • Microsoft Windows Server 2008, Web x86 Edition
  • Microsoft Windows Small Business Server 2003/2003 R2 Premium Edition
  • Microsoft Windows Small Business Server 2003/2003 R2 Standard Edition
  • Microsoft Windows Small Business Server 2008 Premium Edition
  • Microsoft Windows Small Business Server 2008 Standard Edition
  • Red Hat Enterprise Linux 4 AS for AMD64/EM64T
  • Red Hat Enterprise Linux 4 AS for x86
  • Red Hat Enterprise Linux 4 ES for AMD64/EM64T
  • Red Hat Enterprise Linux 4 ES for x86
  • Red Hat Enterprise Linux 4 WS/HPC for AMD64/EM64T
  • Red Hat Enterprise Linux 4 WS/HPC for x86
  • Red Hat Enterprise Linux 4 for IBM POWER
  • Red Hat Enterprise Linux 5 Server Edition
  • Red Hat Enterprise Linux 5 Server Edition with Xen
  • Red Hat Enterprise Linux 5 Server with Xen x64 Edition
  • Red Hat Enterprise Linux 5 Server x64 Edition
  • Red Hat Enterprise Linux 5 for IBM POWER
  • SUSE LINUX Enterprise Server 10 for AMD64/EM64T
  • SUSE LINUX Enterprise Server 10 for IBM POWER
  • SUSE LINUX Enterprise Server 10 for x86
  • SUSE LINUX Enterprise Server 10 with Xen for AMD64/EM64T
  • SUSE LINUX Enterprise Server 10 with Xen for x86
  • SUSE LINUX Enterprise Server 11 for AMD64/EM64T
  • SUSE LINUX Enterprise Server 11 for IBM POWER
  • SUSE LINUX Enterprise Server 11 with Xen for AMD64/EM64T
  • VMware ESX 3.5
  • VMware ESX 4.0
  • VMware ESXi 3.5
  • VMware ESXi 4.0
