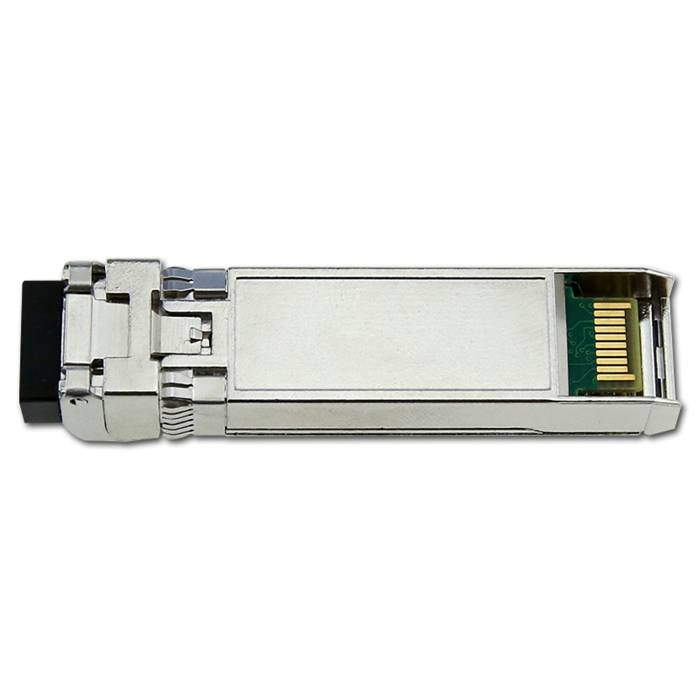

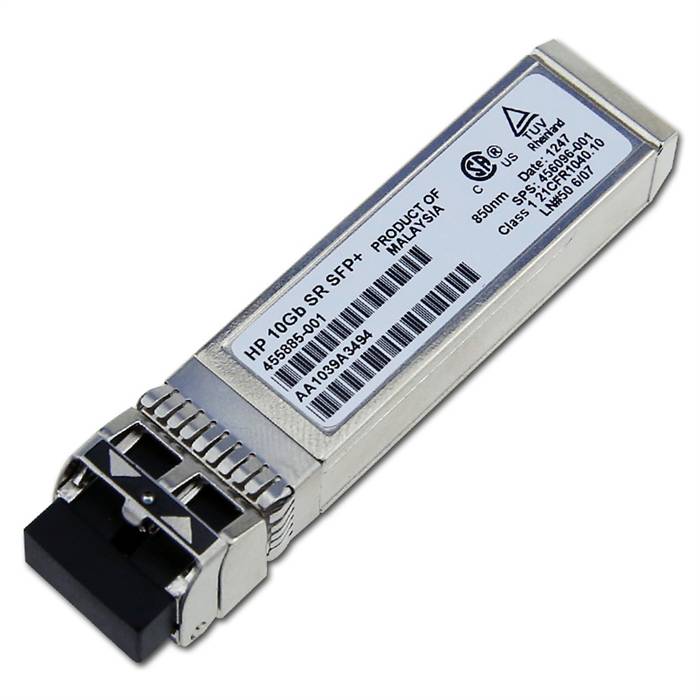

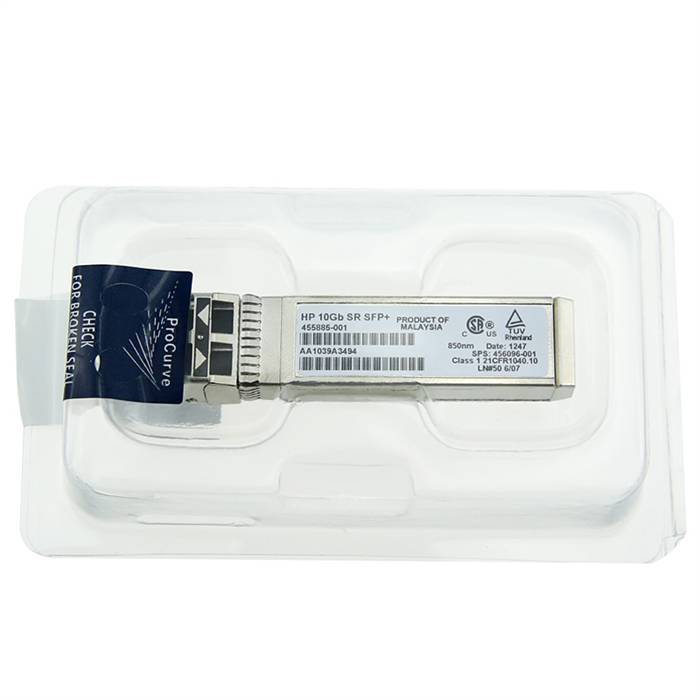

HPE BladeSystem c-Class 10Gb SFP+ SR Transceiver 455883-B21 455885-001

Features

• SFP+ form factor
• 10G Ethernet transmission speed
• 400m transmissions on OM4 multi-mode cable
• 300m transmissions on OM3 multi-mode cable
• 850nm wavelength
• 10Gb Ethernet transmission rate with SFP+ form factor
• Transmissions are up to 300m on MMF (SR), up to 220 m MMF (LRM) and 10 km on SMF (LR)
• Low power consumption at <0.8W for SR, <1W for LRM and LR
• Duplex LC connector

Specifications

• Connector Type: LC
• Ports: 1 LC 10-GbE port (IEEE 802.3ae Type 10Gbase-SR) Duplex: full only
• Cable Type: 62.5/125 ?m or 50/125 ?m (core/cladding) diameter, graded-index, low metal content, multimode fiber optic, complying with ITU-T G.651 and ISO/IEC793-2Type A1b or A1a, respectively
• Fiber Type: Multi Mode
• Maximum Distance: 2-26m with 62.5 ?m multimode cable @ 160 MHz*km 2-33m with 62.5 ?m multimode cable @ 200 MHz*km 2-66m with 50 ?m multimode cable @ 400 MHz*km 2-82m with 50 ?m multimode cable @ 500 MHz*km 2-300m with 50 ?m multimode cable @ 2000 MHz*km
• Wavelength: 850 nm
• Transceiver Form Factor: SFP+
• Product Differentiator (long): 32GB DDR4-2133 dual rank LRDIMM is mainstream SKU for enterprise customers
• Detailed Product Description: HPE 10 Gb SFP+ SR transceiver for HPE BladeSystem c-class
• Weight (imperial): 0.04 lb. (0.02 kg)
• Product Dimensions (imperial): 2.19(d) x 0.54(w) x 0.47(h) in. (5.57 x 1.38 x 1.19cm)
