46M6050

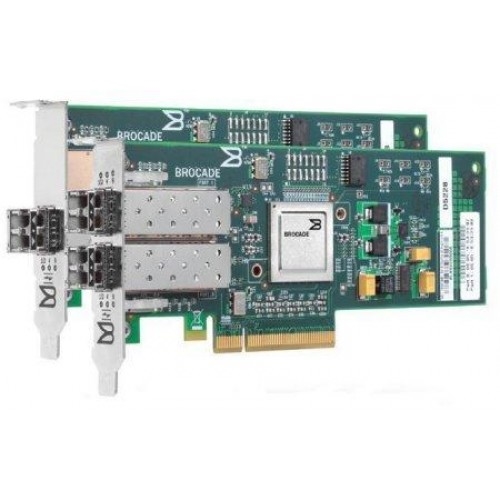

IBM 8 GB Dual Port Fibre Channel Adapter

Features
Function at 8/4/2 Gbps (auto-negotiation)
Persistent binding
2,048 concurrent logins
PCI Express 2.0 x8 compliance, with MSI-X and INTx
One (for Single-port) and two (for Dual-port) SFP+ with LC-style connectors
Standard PCI Express card with low profile MD2 form factor
Support for both standard and low-profile PCI-E slots

Specifications
Data rate: 1600 MBps full duplex per port
Performance: up to 500,000 IOPS per port
Boot support: BIOS, UEFI, PCI BIOS 3.0
Protocols: SCSI-FCP, FCP-2, FCP-3, FC-SP
Standard supported: Enhanced Authentication (FC-SP), Network isolation (NPIV)
Distance support: 50 meters at 8 Gbps on 62.5/125 μm Multi-Mode Fiber (MMF)

Physical specifications
Height: 68 mm (2.7 in)
Width: 167 mm (6.6 in)
Depth: 18 mm (0.7 in)
Weight: 127 g (0.28 lb)

Operating environment
Temperature:
Operating: 0° to 55°C (32° to 131°F) at 0 to 914 m (0 to 3,000 ft)
Storage: -43° to 73°C (-40° to 163°F) at 914 to 2,133 m (3,000 to 7,000 ft)
Relative humidity:
Operating: 5% to 93% (relative, non-condensing)
Non-operating: 5% to 95% (relative, non-condensing)

Supported operating systems
Microsoft Windows Server 2003, Web Edition
Microsoft Windows Server 2003/2003 R2, Datacenter Edition
Microsoft Windows Server 2003/2003 R2, Datacenter x64 Edition
Microsoft Windows Server 2003/2003 R2, Enterprise Edition
Microsoft Windows Server 2003/2003 R2, Enterprise x64 Edition
Microsoft Windows Server 2003/2003 R2, Standard Edition
Microsoft Windows Server 2003/2003 R2, Standard x64 Edition
Microsoft Windows Server 2008, Datacenter x64 Edition
Microsoft Windows Server 2008, Datacenter x86 Edition
Microsoft Windows Server 2008, Enterprise x64 Edition
Microsoft Windows Server 2008, Enterprise x86 Edition
Microsoft Windows Server 2008, Standard x64 Edition
Microsoft Windows Server 2008, Standard x86 Edition
Microsoft Windows Server 2008, Web x64 Edition
Microsoft Windows Server 2008, Web x86 Edition
Microsoft Windows Small Business Server 2003/2003 R2 Premium Edition
Microsoft Windows Small Business Server 2003/2003 R2 Standard Edition
Red Hat Enterprise Linux 4 AS for AMD64/EM64T
Red Hat Enterprise Linux 4 AS for x86
Red Hat Enterprise Linux 4 ES for AMD64/EM64T
Red Hat Enterprise Linux 4 ES for x86
Red Hat Enterprise Linux 4 WS/HPC for AMD64/EM64T
Red Hat Enterprise Linux 4 WS/HPC for x86
Red Hat Enterprise Linux 5 Server Edition
Red Hat Enterprise Linux 5 Server x64 Edition
SUSE LINUX Enterprise Server 10 for AMD64/EM64T
SUSE LINUX Enterprise Server 10 for x86
SUSE LINUX Enterprise Server 9 for AMD64/EM64T
SUSE LINUX Enterprise Server 9 for x86
VMware ESX 3.5
