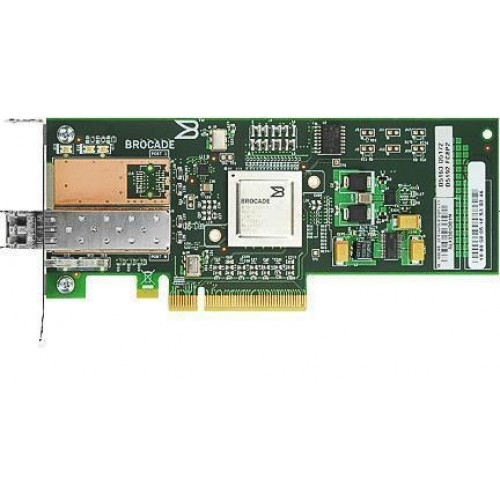

IBM 46M6049 46M6061 Brocade 8Gb FC Single-port HBA for System x Features - Function at 8/4/2 Gbps (auto-negotiation)
- Persistent binding
- 2,048 concurrent logins
- PCI Express 2.0 x8 compliance, with MSI-X and INTx
- One (for Single-port) and two (for Dual-port) SFP+ with LC-style connectors
- Standard PCI Express card with low profile MD2 form factor
- Support for both standard and low-profile PCI-E slots
Specifications
- Data rate: 1600 MBps full duplex per port
- Performance: up to 500,000 IOPS per port
- Boot support: BIOS, UEFI, PCI BIOS 3.0
- Protocols: SCSI-FCP, FCP-2, FCP-3, FC-SP
- Standard supported: Enhanced Authentication (FC-SP), Network isolation (NPIV)
- Distance support: 50 meters at 8 Gbps on 62.5/125 ?m Multi-Mode Fiber (MMF)
Physical specifications
- Height: 68 mm (2.7 in)
- Width: 167 mm (6.6 in)
- Depth: 18 mm (0.7 in)
- Weight: 127 g (0.28 lb)
Operating environment
- Temperature:
- Operating: 0° to 55°C (32° to 131°F) at 0 to 914 m (0 to 3,000 ft)
- Storage: -43° to 73°C (-40° to 163°F) at 914 to 2,133 m (3,000 to 7,000 ft)
- Relative humidity:
- Operating: 5% to 93% (relative, non-condensing)
- Non-operating: 5% to 95% (relative, non-condensing)
Supported operating systems
- Microsoft Windows Server 2003, Web Edition
- Microsoft Windows Server 2003/2003 R2, Datacenter Edition
- Microsoft Windows Server 2003/2003 R2, Datacenter x64 Edition
- Microsoft Windows Server 2003/2003 R2, Enterprise Edition
- Microsoft Windows Server 2003/2003 R2, Enterprise x64 Edition
- Microsoft Windows Server 2003/2003 R2, Standard Edition
- Microsoft Windows Server 2003/2003 R2, Standard x64 Edition
- Microsoft Windows Server 2008, Datacenter x64 Edition
- Microsoft Windows Server 2008, Datacenter x86 Edition
- Microsoft Windows Server 2008, Enterprise x64 Edition
- Microsoft Windows Server 2008, Enterprise x86 Edition
- Microsoft Windows Server 2008, Standard x64 Edition
- Microsoft Windows Server 2008, Standard x86 Edition
- Microsoft Windows Server 2008, Web x64 Edition
- Microsoft Windows Server 2008, Web x86 Edition
- Microsoft Windows Small Business Server 2003/2003 R2 Premium Edition
- Microsoft Windows Small Business Server 2003/2003 R2 Standard Edition
- Red Hat Enterprise Linux 4 AS for AMD64/EM64T
- Red Hat Enterprise Linux 4 AS for x86
- Red Hat Enterprise Linux 4 ES for AMD64/EM64T
- Red Hat Enterprise Linux 4 ES for x86
- Red Hat Enterprise Linux 4 WS/HPC for AMD64/EM64T
- Red Hat Enterprise Linux 4 WS/HPC for x86
- Red Hat Enterprise Linux 5 Server Edition
- Red Hat Enterprise Linux 5 Server x64 Edition
- SUSE LINUX Enterprise Server 10 for AMD64/EM64T
- SUSE LINUX Enterprise Server 10 for x86
- SUSE LINUX Enterprise Server 9 for AMD64/EM64T
- SUSE LINUX Enterprise Server 9 for x86
- VMware ESX 3.5
|
|
|
 |
|
 |
|
