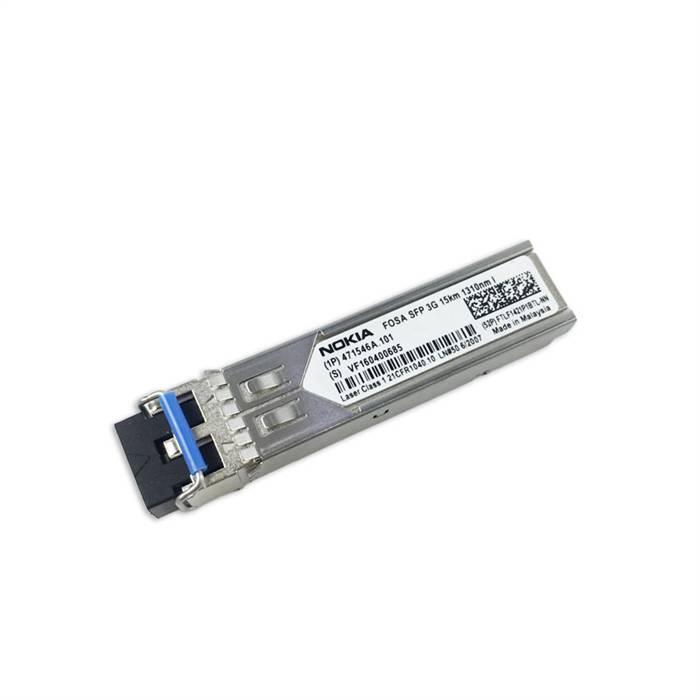

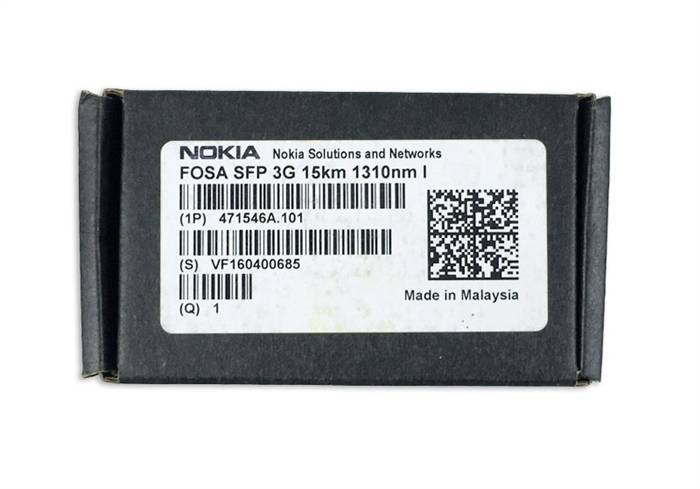

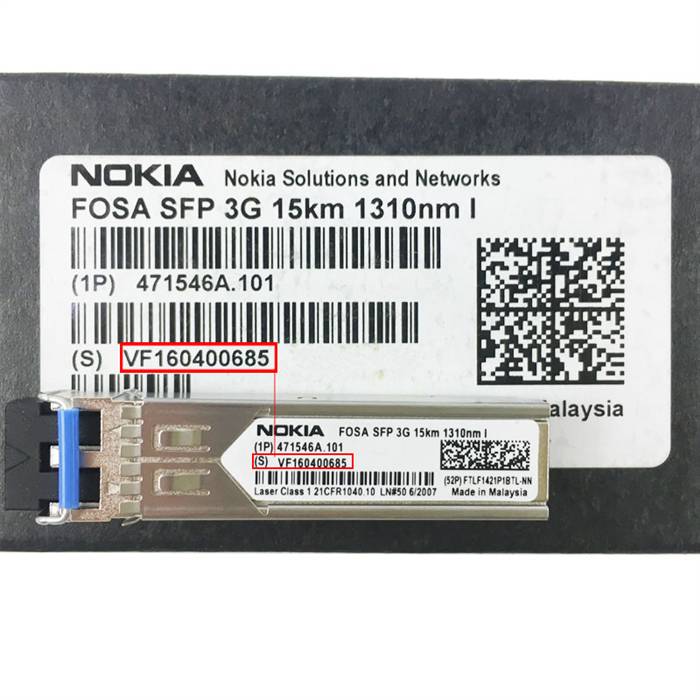

Genuine Nokia 471546A.101 FOSA SFP 3G 15km 1310nm Transceiver Module
Genuine Nokia 471546A.101

Alternative Views:
Our Price: $32.00
Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Business Days


Product Code: 471546A-101
Qty:

Description

FTLF1421P1BTL-3G Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). They comply with Gigabit Ethernet as specified in IEEE Standard 802.3, Fibre Channel FC-PI 13.0, CPRI Rev 4.1 and OBSAI Rev V4.1. Digital diagnostics functions are available via the 2-wire serial bus specified in the SFP MSA. The optical transceiver is RoHS compliant as described in Application Note AN-2038.

Features
  • Genuine Nokia 471546A.101
  • Up to 3.07 Gb/s bi-directional data links
  • Hot-pluggable SFP footprint
  • Built-in digital diagnostic functions
  • Uncooled DFB 1310nm laser transmitter
  • Duplex LC connector
  • RoHS compliant
  • Metal enclosure, for lower EMI
  • FEC Support
  • Single 3.3V power supply
  • Low power dissipation <700mW typical
  • Industrial operating temperature range: -40°C to 85°C

Applications
  • 2.45 Gb/s CPRI
  • 3.07 Gb/s CPRI
  • 3.07 Gb/s OBSAI
  • Gigabit Ethernet / 1x/2x Fibre Channel

Specifications
  • Part Number: 471546A.101
  • MPN: RTXM192-436, FTLF1421P1BTL-NN
  • Form Factor: SFP
  • Data Rate (max): 3.07 Gb/s
  • Connector: Dual LC
  • Wavelength: 1310nm Band
  • Distance: 15 km
  • Transmitter: DFB Laser
  • Receiver: PIN
  • Diagnostics: Digital
  • Protocol: Optical Gigabit Ethernet Compliant 1x Fibre Channel Compliant 2x Fibre Channel Compliant Wireless CPRI Compatible
  • Voltage Supply: 3.3
  • Operating Temperature: -40°~ 85°C
