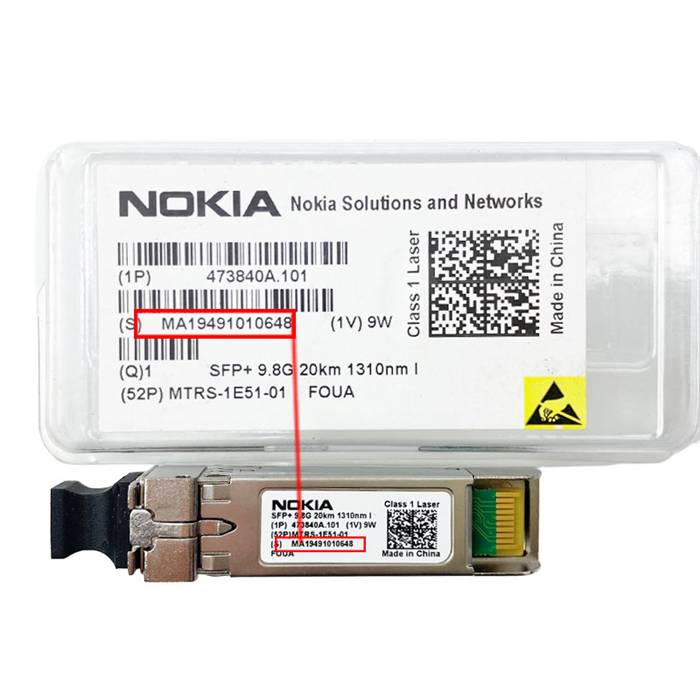

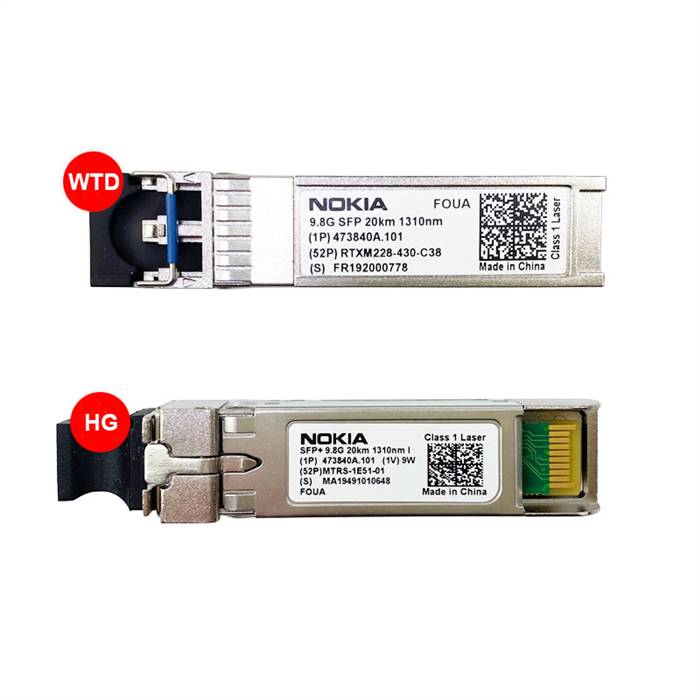

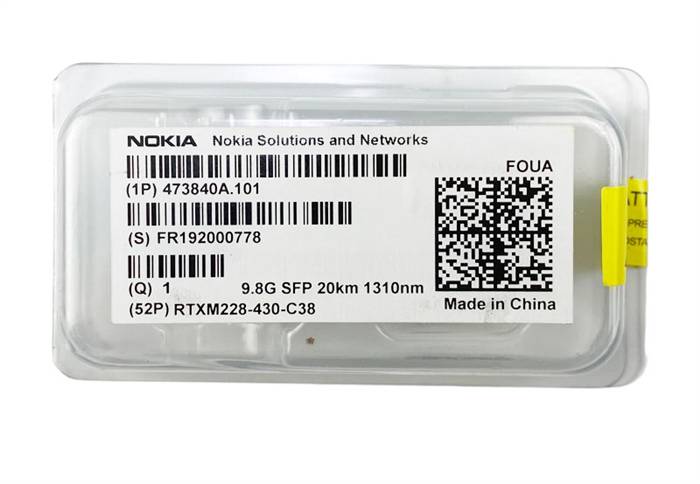

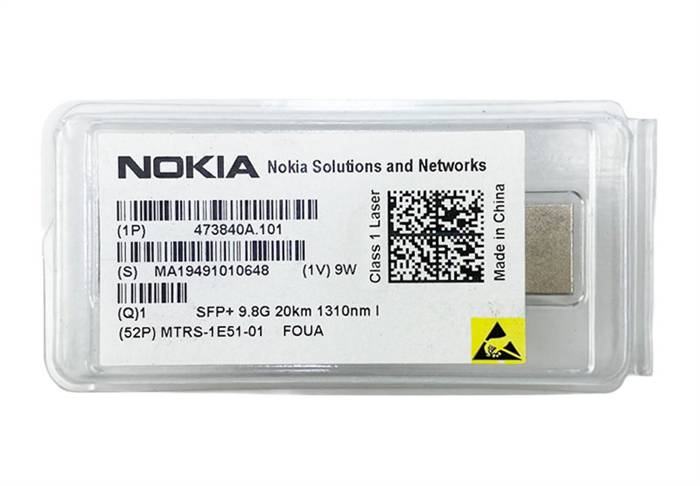

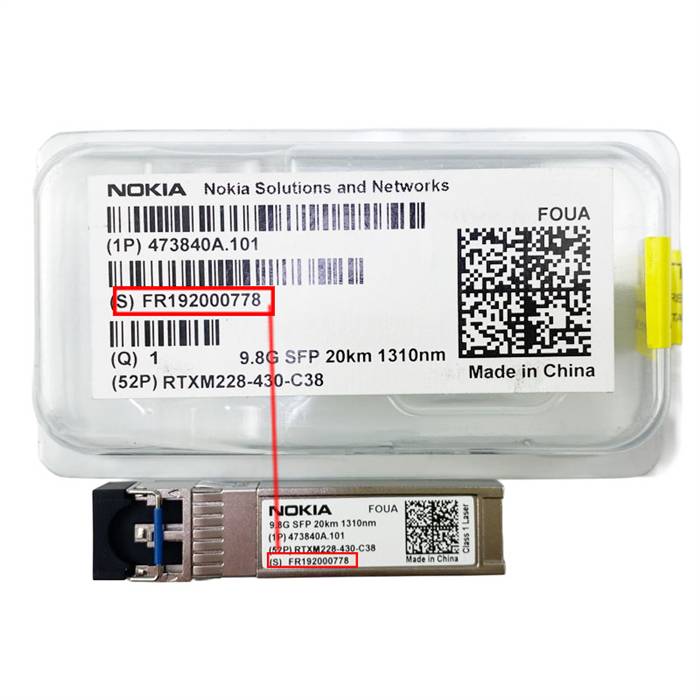

Genuine Nokia 473840A.101 9.8G 20km 1310nm SFP+ Transceiver Module RTXM228-430-C38

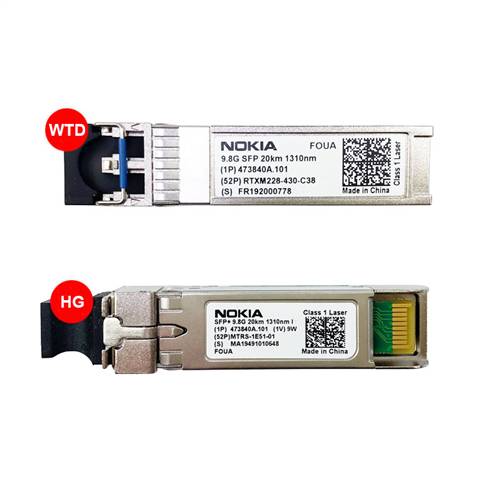

Genuine Nokia 473840A.101

Alternative Views:
Our Price: $120.00
Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Business Days


Product Code: 473840A-101
Qty:

Description

The Nokia 473840A.101 is designed to transmission distance up to 20km on SM fiber. The transceiver consists of two sections: The transmitter section incorporates a laser driver and a 1310nm DFB laser. The receiver section consists of a PIN photodiode integrated with a preamplifier (TIA) and a Limitting Amplifier. The module is hot pluggable into the 20-pin connector. The high-speed electrical interface is base on low voltage logic, with nominal 100 Ohms differential impedance and AC coupled in the module.

Features
  • Genuine Nokia 473840A.101
  • Up to 20km transmission distance over SMF
  • Support data rate up to 10.3125Gbps
  • 1310nm DFB and PIN receiver
  • SFI electrical interface
  • 2-wire interface for integrated Digital Diagnosticmonitoring
  • SFP MSA package with duplex LC connector
  • Hot pluggable
  • Very low EMI and excellent ESD protection
  • +3.3V power supply
  • Power consumption less than 1W
  • Operating case temperature: 0~+70°C

Applications
  • High-speed storage area networks
  • Computer cluster cross-connect
  • Custom high-speed data pipes
  • LTE optical repeater application

Compliance
  • Compliant with IEEE 802.3ae-2002
  • Compliant with MSA SFF-8472
  • Compliant with MSA SFF-8431
  • Compliant with MSA SFF-8432

Specifications
  • Brand: Nokia
  • Part Number: 473840A.101
  • MPN: RTXM228-430-C38, MTRS-1E51-01
  • Form Factor: SFP+
  • Max Data Rate: 10.3125Gbps
  • Wavelength: 1310nm
  • Max Cable Distance: 20km
  • Connector: Duplex LC
  • Cable Type: SMF
  • Transmitter Type: 1310nm DFB
  • Receiver Type: PIN
  • DDM/DOM: Supported
  • Receiver Sensitivity: <-14.4dBm
  • Power Consumption: ?1W
  • Operating Temperature Range: 0 to 70°C (32 to 158°F)
