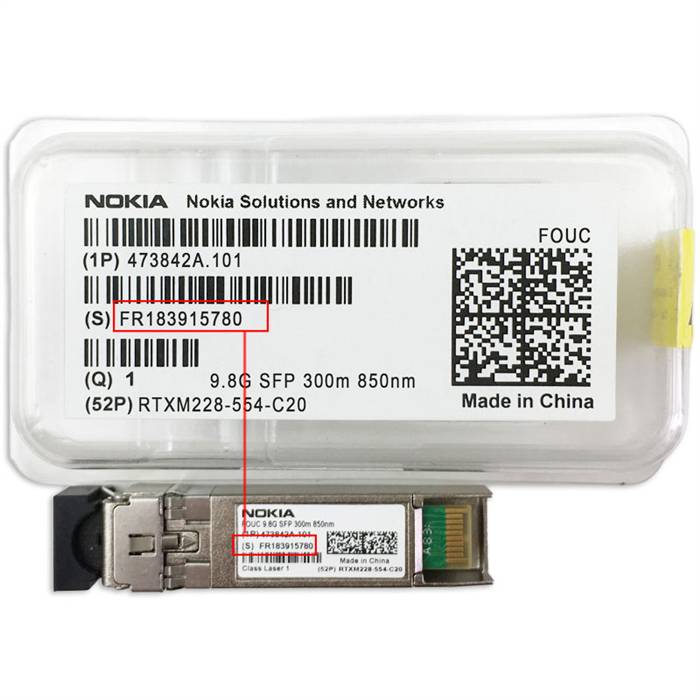

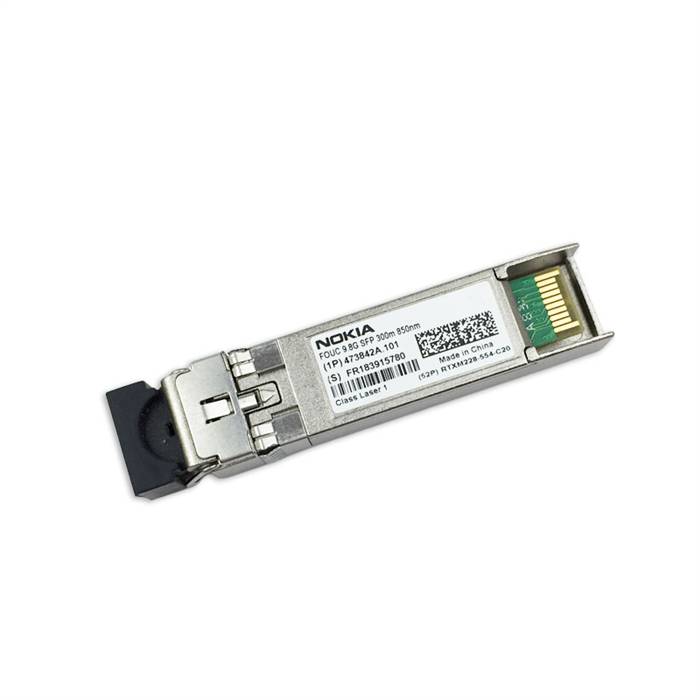

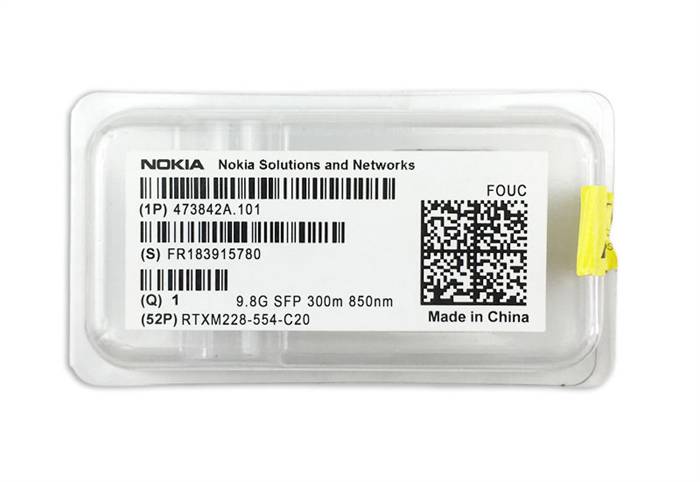

Genuine Nokia 473842A.101 9.8G 300m 850nm SFP+Transceiver Module RTXM228-554-C20
Genuine Nokia 473842A.101

Alternative Views:
Our Price: $60.00
Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Business Days


Product Code: 473842A-101
Qty:

Description

The Nokia 473842A.101 850nm VCSEL 10Gigabit Transceiver is designed to transmit and receive serial optical data links up from 8.5 Gb/s to 10.51875 data rate over multimode fiber. The Transceiver is compliant with FC-PI-4, 10G FC, IEEE 802.3ae, SFF-8432, and applicable portions of SFF-8431. The transmitter converts serial CML electrical data into serial optical data. An open collector compatible Transmit Disable (Tx_Dis) is provided. When TX_DIS is asserted High, Transmitter is turned off. The receiver converts serial optical data into serial CML electrical data. An open collector compatible Loss of Signal is provided. The RX_LOS signal indicates insufficient optical power for reliable signal reception at the receiver. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472.

Features
  • Genuine Nokia 473842A.101
  • Compliant to SFP+ MSA
  • Fully RoHS Compliant
  • Almetahousing for superior EMI performance
  • IPF compliant mechanics SFF-8432
  • Operating data rate 8.5-10.5Gb/s
  • 850nm VCSEL Laser
  • High sensitivity PIN photodiode and TIA
  • LC duplex connector
  • Hot pluggable 20pin connector
  • Low power consumption <1.0W
  • -40 to 85 operating wide temperature range ? ?
  • Single +3.3Vą5% power supply
  • DigitaMonitoring SFF-8472 Rev 11 compliant
  • Reatime monitoring of?
    • Transmitted opticapower
    • Received opticapower
    • Laser bias current
    • Temperature
    • Supply voltage
Applications
  • 10GBASE-SR
  • 8.5/10.5 Gb/s Fiber Channel
  • Wireless and cellular base station

Compliance
  • FC-PI-4 Rev 7.00
  • 10GFC Rev 4.0
  • IEEE 802.3ae 10GBASE-SR
  • SFF-8431 Rev 4
  • SFF-8472 Rev 11

Specifications
  • Part Number: 473842A.101
  • MPN: RTXM228-554-C20
  • Form Factor: SFP+
  • Data Rate (max): 8.5 ~ 10.5Gb/s
  • Connector: Dual LC
  • Reach (km): 300m
  • Transmitter: 850nm VCSEL
  • Receiver: PIN
  • Wavelength (nm): 850nm
  • OpticaPower: -7.3 ~ -1.0dBm
  • Receive Sensitivity: <-11.1dBm
  • DDM: Yes
  • Operating Temperature: -40~85?
