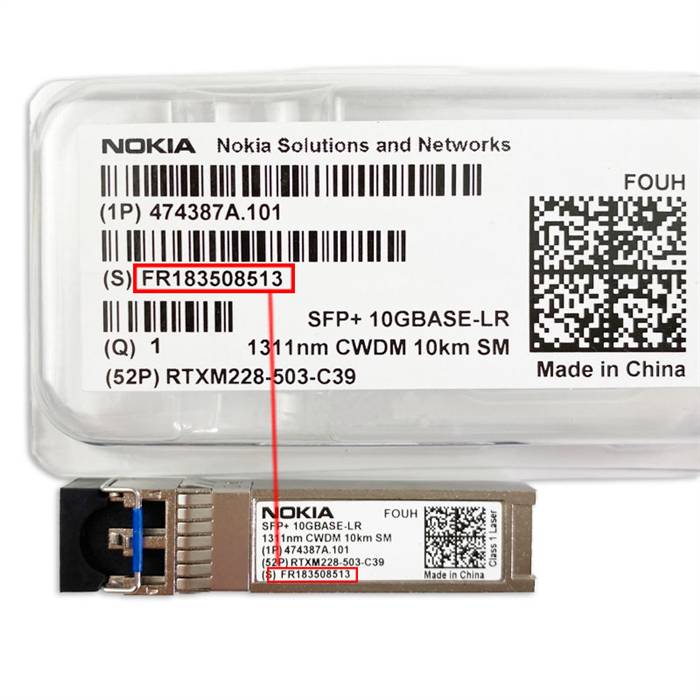

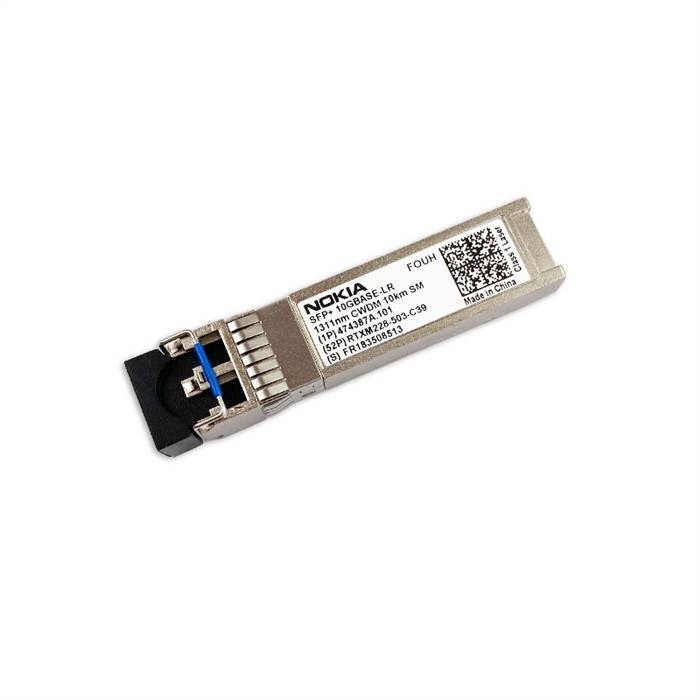

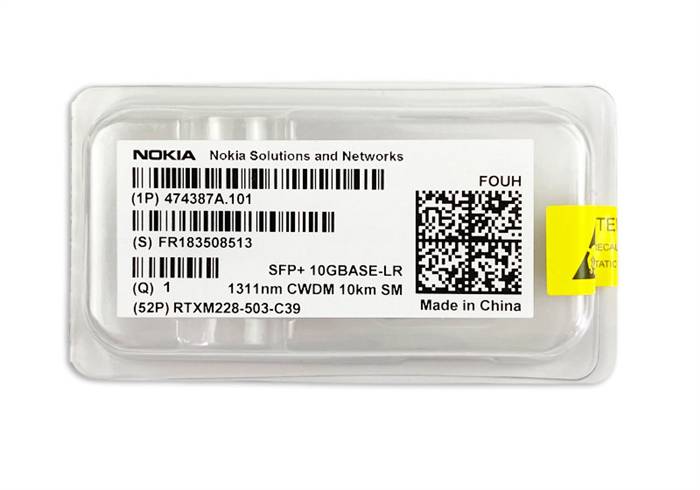

Genuine Nokia 474387A.101 10GBASE-LR 1311nm CWDM 10km SM SFP+ RTXM228-503-C39

Alternative Views:

Our Price: $150.00

Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Business Days

Product Code: 474387A-101

Qty:

Description

The Nokia 474387A.101 10Gigabit DFB laser with CWDM transceiver is designed to transmit and receive serial optical data links up from 8.5 Gb/s to 10.52 Gb/s data rate over 10km singlemode fiber. The Transceiver is compliant with SFF-8432, 10GFC, FC-PI-4, IEEE802.3ae and applicable portions of SFF-8431. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472.

Features

Link lengths at 10G 10Km
LC duplex connector
Low power consumption <1.0W
0? to 70? operating temperature range
Single +3.3V±5% power supply
Digital Monitoring SFF-8472 compliant
High sensitivity PIN photodiode and TIA
Uncooled directly modulated DFB Laser with CWDM wavelengths

Applications

10GBASE-LR/LW 10G Ethernet
10GFC
8GFC

Standards

IEEE 802.3ae
SFF-8431 Rev 3.0
SFF-8472 Rev 10.2
10GFC Rev 4.0
FC-PI-4 Rev 7.0

Specifications

Brand: Nokia
Part Number: 474387A.101
MPN: RTXM228-503-C39
Form Type: SFP+
Speed: 8.5~10.52Gb/s
Connector: Duplex LC
Media: SMF
Wavelength: 1311nm
Reach: 10km
Laser: CWDM DFB
Optical Power: -2.4 ~ +5 dBm
Detector: PIN
Sensitivity: <-12.6dBm
DOM: Yes
Operating Temperature: 0~70?
