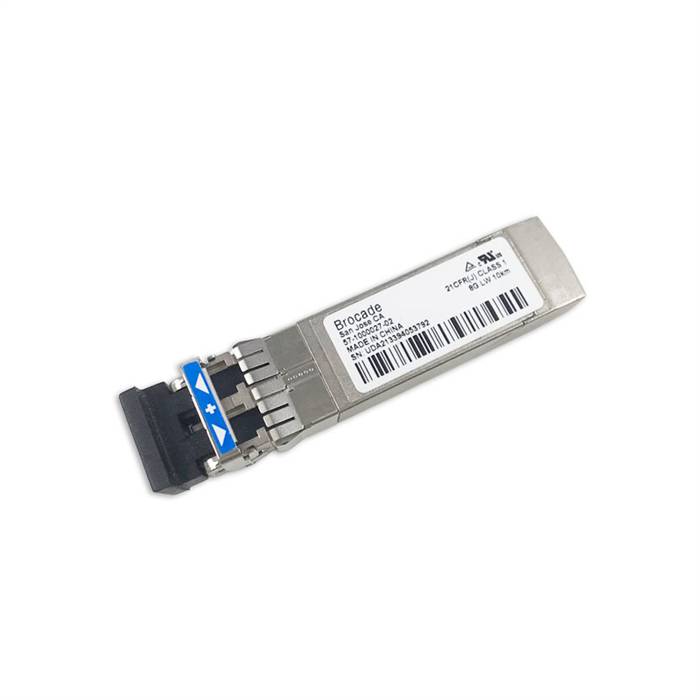

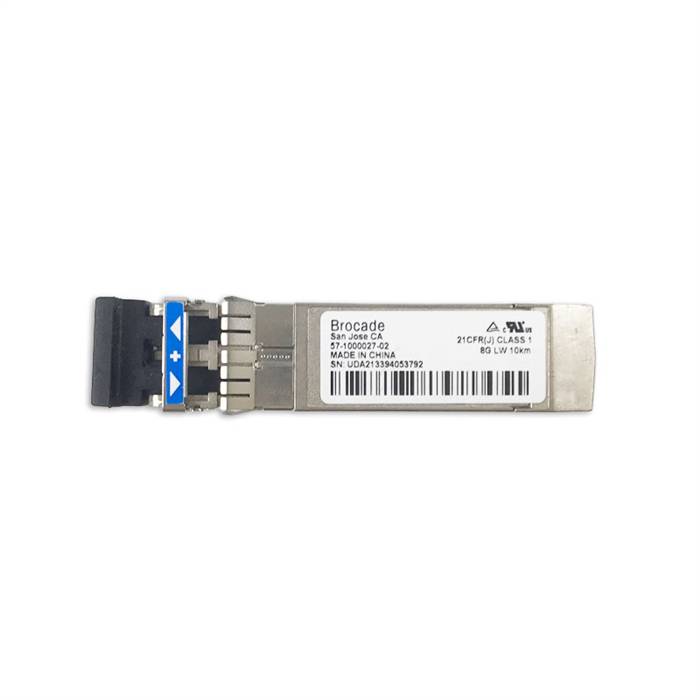

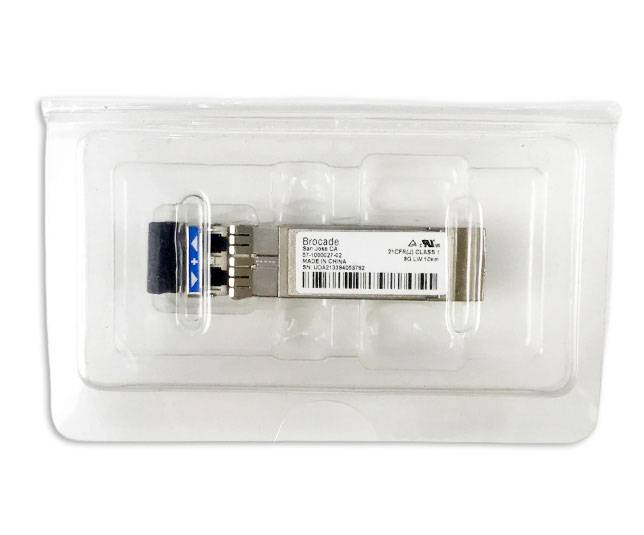

57-1000027-02 - Genuine Brocade 8G FC LWL 10km 1310nm Duplex LC SFP+ Transceiver Module

Features

• Hot-pluggable SFP+ transceiver module
• Up to 8.5 Gb/s bi-directional data links
• Tri-Rate 2G/4G/8G Fibre Channel LWL Compliant
• 1310nm DFB Laser Transmitter
• 10km over Singlemode (SMF)
• Duplex LC Connector
• 1.0W Power Dissipation
• RoHS-6 compliant (lead-free)
• Built-in digital diagnostic (DDM) functions
• Commercial temperature range: -5ºC to 70ºC

Specifications

• Form Factor: SFP
• Wavelength: 1310nm
• Distance: 10km
• Data Rate (max): 8Gb/s
• Low End Case Temperature (°C): 0°C
• High End Case Temperature (°C): 70°C
• Diagnostics: Digital
• Transmitter: VCSEL
• Receiver: PIN
• Voltage Supply: 3.3--5v
• Connector: Dual LC
• Compatible with: Brocade DCX?8510,6520,6510,6505,5300,5100,300,Encryption,7800,7840
