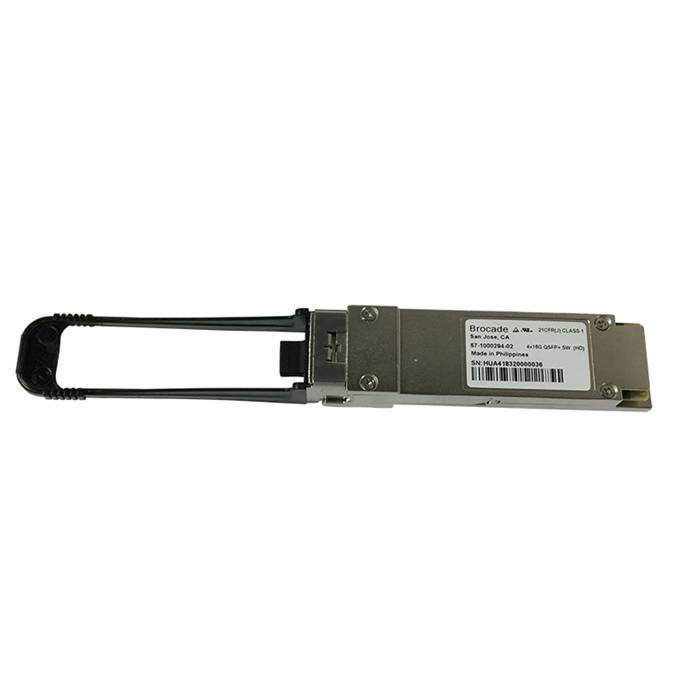

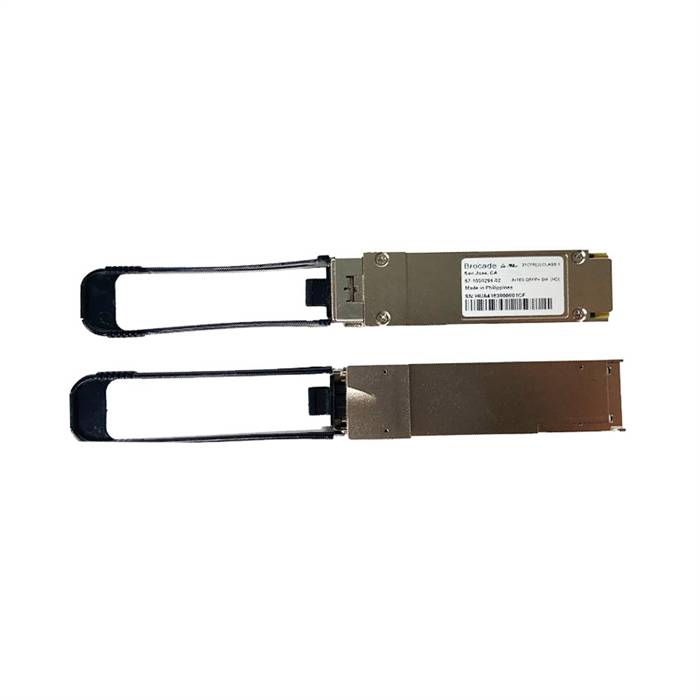

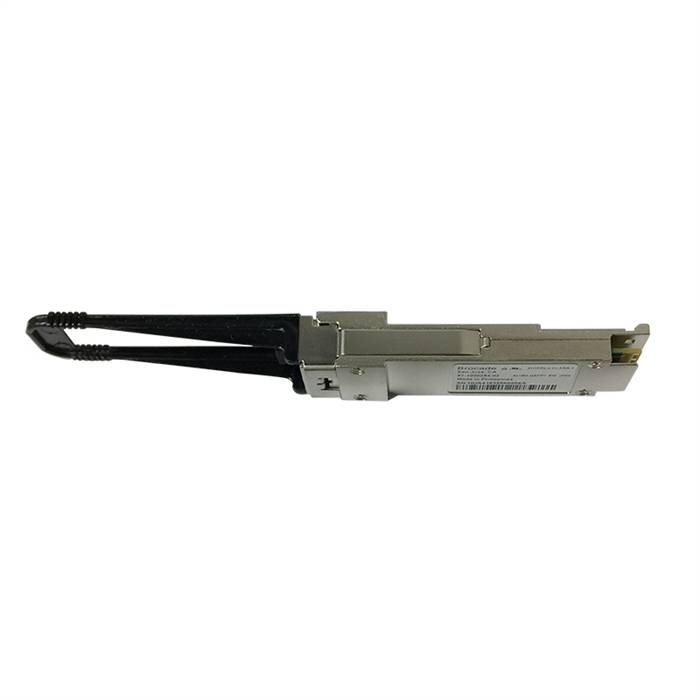

Brocade 57-1000294-02 64G 4x16G FC SWL QSFP+ Optical Transceiver

KEY FEATURES

Brocade 4×16 Gbps SWL Fibre ChannelCompliant QSFP Optical Transceivers are hot-swappable, low-voltage (3.3 V) digital diagnostic optical transceivers that support high-speed serial links over multimode optical fiber at signaling rates up to 14.025 Gbps. They comply with the QSFP MSA mechanical specification (SFF-8436).

Brocade 4×16 Gbps SWL Fibre ChannelCompliant QSFP Optical Transceivers are tri-rated 850 nm QSFPs that comply with 14.025 Gbps Fibre Channel specifications, and compatible with 8.5 Gbps and 4.25 Gbps Fibre Channel specifications.

Product highlights include:

• 850 nm multimode VCSEL transmitter
• Diagnostic features per SFF-8472.  "Diagnostic Monitoring Interface for Optical Transceivers" providing real-time monitoring of:
• Transmitted optical power
• Received optical power
• Laser bias current
• Temperature
• Supply voltage

BROCADE 4×16 GBPS SWL FIBRE CHANNEL-COMPLIANT QSFP OPTICAL TRANSCEIVER SPECIFICATIONS

• Performance
• Fibre Channel: 4×14.025 Gbps line speed, full duplex, tri-speed
• (4×14.025 Gbps, 4×8.5 Gbps, and 4×4.25 Gbps)
• Media
• Hot-pluggable, industry-standard QSFP, MTP 1×12 ribbon cable
• connector; SWL
• Operating parameters
• Transmit (Tx):
• Wavelength: 840 to 860 nm
• Spectral width: 0.50 nm
• Average power: 1 dBm max per channel
• RIN: ?128 dB/Hz max
• Optical return loss: 12 dB max
• OMA: ?3.0 dBm min per channel
• Receive (Rx):
• Wavelength: 840 to 860 nm
• Average power: 2.4 dBm max per channel
• Optical return loss: ?12 dB min
• SRS OMA: ?10 dBm max per channel
• 3 dB cutoff maximum: 18 GHz
• Operating distances
• OM3 50µm
•  4 Gbps Fibre Channel: 380 m
•  8 Gbps Fibre Channel: 150 m
•  16 Gbps Fibre Channel: 66 m
• OM4 50µm
•  4 GbpsFibre Channel: 400 m
•  8 Gbps Fibre Channel: 190 m
•  16 Gbps Fibre Channel: 100 m
• Size
• Width: 18.35 mm (0.72 in.)
• Height: 12.90 mm (0.51 in.)
• Depth excluding yellow pull-tab: 68.00 mm (2.68 in.)
• Depth including yellow pull-tab: 132.00 mm (5.20 in.)
• Environmentals
• Storage temperature: ?40°C to 85°C (?40°F to 185°F)
• Power
• Power dissipation: 1.5 W
