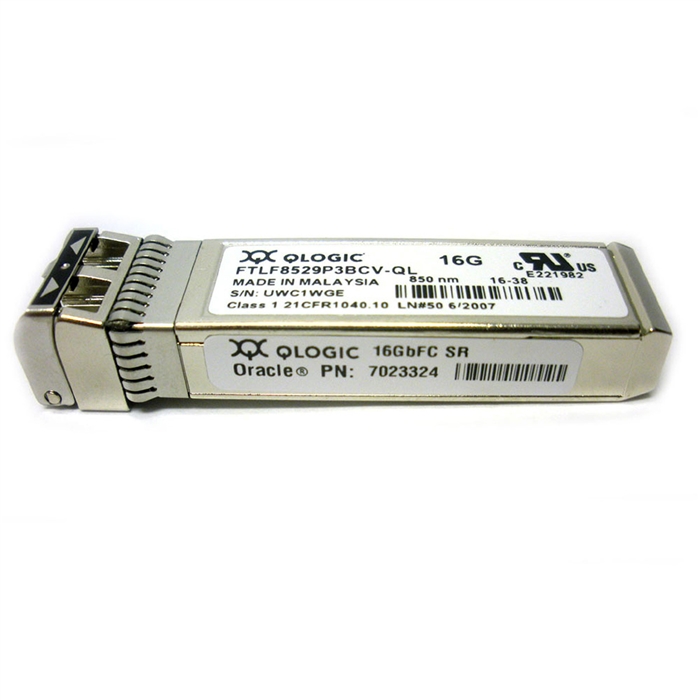

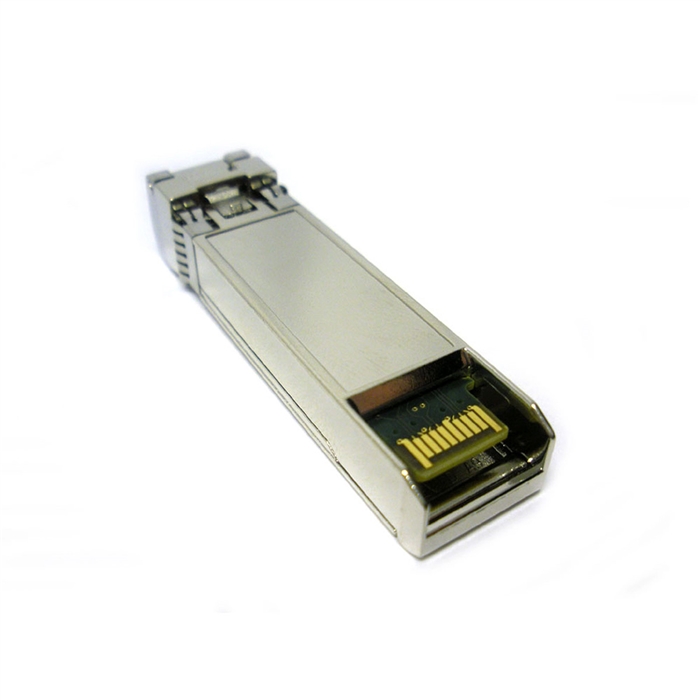

Oracle Sun 7023324 16Gbps SFP+ SR FC 850nm Transceiver
7023324 - Oracle Sun FTLF8529P3BCV-QL

Alternative Views:
Our Price: $85.00
Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Business Days


Product Code: 7023324
Qty:

Description


Oracle Sun 7023324 16Gbps SFP+ SR FC 850nm Transceiver

Specifications

  • Manufacturer: Sun
  • MPN: FTLF8529P3BCV-QL
  • Part Number: 7023324
  • Details: Oracle Sun 7023324 16Gbps SFP+ SR FC 850nm Transceiver
  • Type: SFP+ (Small Form factor Pluggable) Transceiver
  • Tx Wavelength: 850 nm.
  • Rx Wavelength: 850 nm.
  • Media Type: Multi-Mode Fiber (MMF)
  • Optical Budget: 2.7 dB
  • Max. Distance: 100m
  • Data Rate: 4.25-14.025 Gbps
  • Connectors: Double LC
  • Minimum Transmitting Power: -7.8 dB
  • Maximum Transmitting Power: -0.5 dB
  • Receiver Sensitivity: -10.5 dBm
  • Receiver Overload: 0 dBm
  • Transmitter Type: VSCEL Laser
  • Receiver Type: PIN photodiode
  • Power: +3.3V single power supply
  • Chipset: Sumitomo
  • Temperature:Standard 0°-70°C
