Oracle Sun Storage 16 Gb Fibre Channel PCIe Universal Host Bus Adapter 7101674 7023303 QLogic QLE8362-ORL

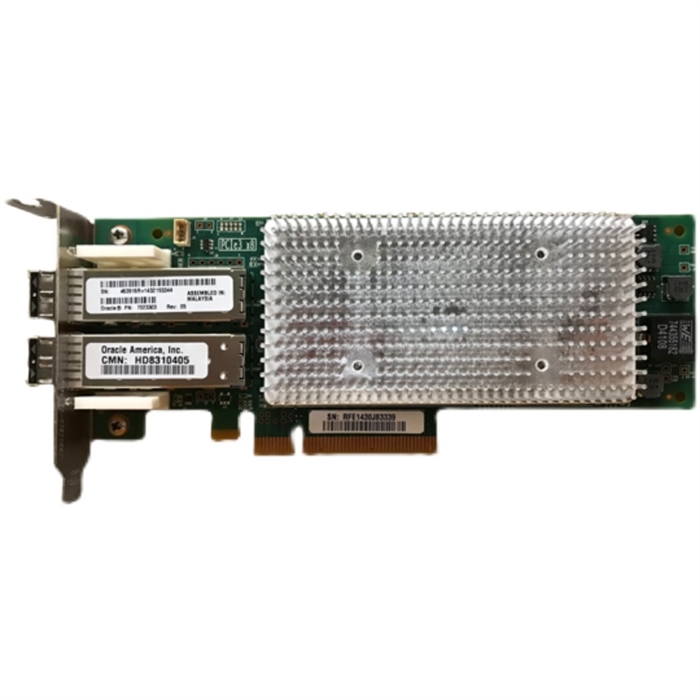

Oracle's Sun Storage 16 Gb Fibre Channel (FC) PCIe Universal host bus adapter (HBA) (part number 7101674) is a standalone, PCIe low-profile universal HBA that uses Marvell, formerly QLogic, technology. The HBA is considered universal because it is a configurable board that enables you to change its operating protocol mode from a two-port 16 Gb FC HBA to a two-port 10 GbE Fibre Channel over Ethernet (FCoE) Converged Network Adapter. The universal HBA has four possible configurations:

• 10 GbE FCoE Copper — This configuration provides twin-ax copper cable connectivity and 10 GbE FCoE HBA functionality. No optical transceiver modules are installed in, nor provided with, this configuration of the universal HBA.

• 16 Gb FC SW (shortwave) Optical — This configuration requires installing 16 Gb FC shortwave optical transceiver modules in the SFP+ connector of the universal HBA, enabling 16 Gb Fibre Channel HBA functionality.

• 10 GbE FCoE SR (short-range) Optical — This configuration requires installing 10 GbE short-range optical transceiver modules in the SFP+ connectors of the universal HBA, enabling 10 GbE FCoE Converged Network Adapter functionality.

• 16 Gb FC LW (longwave) Optical —This configuration requires installing 16Gb FC long-range optical transceiver modules in the SFP+ connectors of the universal HBA, enabling 16 Gb FC HBA functionality.


Universal Host Bus Adapter Features and Specifications

• Form factor: Standard low-profile form factor
• Connector types: Small form-factor pluggable plus (SFP+) cages that can be connected with twin-ax cabling from supported switch manufacturers (See Switch Compatibility), or can have the following transceivers:
• SFP+ 16 Gb FC shortwave (part number 7101676)
• SFP+ 10 GbE FCoE short-range (part number 7101678)

• SFP+ 16 Gb FC longwave (part number 7101680)

• PCIe specification compliance: PCI Express Base Specification Revision 3.0
• Lanes
• PCI Express Gen 2 x8
• PCI Express Gen 3 x4 (x8 Mechanical)

• PCIe hot-plug and hot-swap functionality: Supported
• Maximum power consumption: Approximately 24 Watts
• Solaris Dynamic Reconfiguration: Supported
• FCoE full offload in hardware: Supported
• Boot support: Fibre Channel, Fibre Channel over Ethernet, and Ethernet for all operating systems (See Boot Support)
• Test suite: Provided by Oracle VTS software
• Receive side scaling (RSS): Supported
• MSI-X: Supported
• Fibre Channel support
• Dual-port Fibre Channel with 16/8/4 auto negotiation
• Topologies supported: FC-SW switched fabric (N_Port), FC-AL arbitrated loop (not supported at 16 Gb) (NL_ Port), and Point-to-point (N_Port)

• Dual-port Fibre Channel over Ethernet

• FC and FCoE compatibility

• Fibre Channel Physical and Signaling (FC-PH, FC-PH2, FC-PH3)
• Fibre Channel Generic Services (FC-GS-3)

• Fibre Channel Framing and Signaling (FC-FS)

• Fibre Channel Physical Interface (FC-Pl)

• Fibre Channel Tape and Medium Changers (FC-Tape)

• Fibre Channel Protocol for SCSI (FCP-3-SCSI)

• Fibre Channel Switch Fabric (FC-SW-4)

• Fibre Channel Protocol for SCSI Support (FC-FCP, FC-FCP2)

• FMA support

• FC and FCoE boot code for all supported operating systems


            Note -  Link Aggregation Control Protocol (LACP) cannot be used on the same port as FCoE or iSCSI.

• Ethernet and NIC support

• Standard Ethernet and Enhanced Ethernet:
• IEEE 802.1Q VLAN
• IEEE 802.1p and 802.1D

• IEEE 802.3x

• IEEE 802.1Qbb

• IEEE 802.1Qaz

• DCBX CEE Rev 1.01

• Controller hardware support:

• Jumbo frames support for frame sizes of at least 9 KB
• Hardware TCP/UDP checksum generation

• Hardware IPv4/IPv6 checksum offload

• Hardware large segmentation offload

• Hardware Header and Data Split

• Full-duplex operation is supported

• Up to 128 MAC addresses

• Unicast and multicast address filtering

• VMware NetQueue

• Packet filtering based on MAC address or VLAN tag

• Microsoft receive side scaling (RSS)

• NIC teaming

• PCI hot-plug functionality

• Pre-boot eXecution environment (PXE) boot

• iSCSI boot
