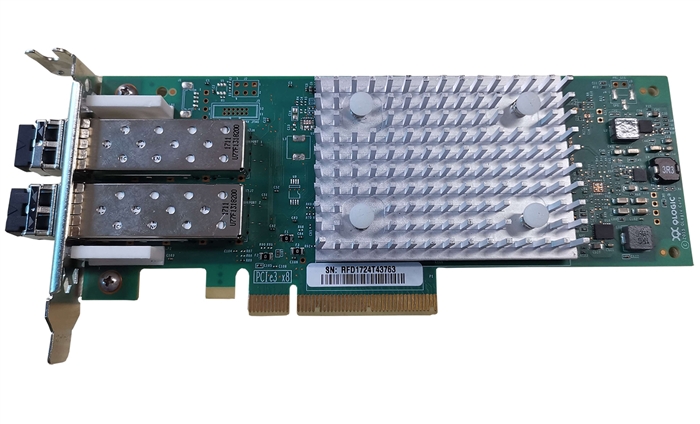

Oracle Sun 7335902 7115462 QLE2742-SR Dual-Port 32 Gb Fibre Channel PCIe Low Profile HBA The Oracle Storage Dual-Port 32 Gb Fibre Channel PCIe Low Profile HBA, which uses Marvell, formerly QLogic, technology (part number: 7335902), is a low-profile, PCIe card that allows connectivity to Fibre Channel (FC) storage outside of the server. The board interfaces an eight-lane PCIe bus, supporting two enhanced Small Form-Factor Pluggable Plus (SFP+) FC optical media ports. Each independent FC port operates at 32 Gb/s and features 32/16/8 autonegotiation. HBA Features and Specifications
- Lane width: x8 PCIe 3.0 x8 lane width up to 8 GT/s per lane
- PCI transfer rate (maximum): PCI Express Generation Three x8 (8.0 GT/s) in an electrically x8 slot (default)
- Data rate (maximum): 32 Gb/s FC per port, negotiable to 16, and 8 Gb/s
- PCIe hot plug and hot swap functionality: Supported
- Number of FC ports: Two
- FC transfer rate: 6400 MBps/line rate 28.05 GBAUD, full duplex
- FC topologies: Switched fabric (N-Port), arbitrated loop (NL-Port), and point-to-point (N-Port) (Note: Fibre Channel arbitrated loop is not available at 16 Gb/s and above.)
- FC SAN boot support: Booting is supported for all supported operating systems. For more information about supported operating systems, see Operating System and Technology Requirements.
- Diagnostic support: Provided by Oracle VTS software
- External connectors: Two enhanced Small-Form Factor Pluggable Plus (SFP+) multimode optics with LC-style connectors per port
- FC Compatibility
- Fibre Channel Physical and Signaling (FC-PH, FC-PH2/3)
- Fibre Channel Arbitrated Loop (FC-AL, FC-AL-2). Note: Fibre Channel arbitrated loop is not supported at data rates of 16Gb/s or faster. Instead, use point-to-point mode. However, if you manually change the HBA to the 8Gb/s or lower data rate, Fibre Channel arbitrated loop is supported.
- Fibre Channel Framing and Signaling (FC-FS-4)
- Fibre Channel Link Services (FC-LS-2), including NPIV
- Fibre Channel Physical Interface (FC-PI, FC-PI-4, FC-PI-5, PC-PI6)
- Fibre Channel Tape and Medium Changers (FC-Tape)
- Fibre Channel Protocol for SCSI, (FCP-4-SCSI)
- Fibre Channel Switch Fabric (FC-SW-4)
- FMA support
- T-10 DIFF or T10-PI support
- LED indicators: Three LEDs per port (green) on the front panel, as status indicators
- Maximum power consumption: 11.5 Watts
Supported Operating Systems/Technology Versions (Minimum)
- Oracle Solaris OS for x86 and SPARC (64-bit) platforms
- Oracle Solaris 11.4 with SRU 16
- To obtain the latest patches and SRUs, go to: My Oracle Support
- Oracle VM Technology: Oracle VM 3.4.6
- Linux OS
- Oracle Linux 8.4 with Red Hat Compatible Kernel (RHCK) and Unbreakable Enterprise Kernel (UEK) Release 6 (R6)
- Oracle Linux 7.7 with RHCK and UEK Release 5
- Microsoft Windows Server OS Standard, Enterprise, and Datacenter Editions
- Window Server 2019
- Windows Server 2016
- VMware Technology: VMware ESXi 6.5 U1
Kit Contents
- Oracle Storage Dual-Port 32 Gb Fibre Channel PCIe Low Profile HBA, QLogic, with a low-profile bracket installed
- Installing Components document
|
|
|
 |
|
 |
|
