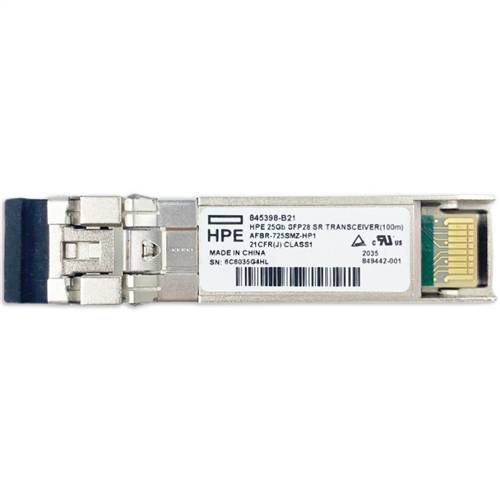

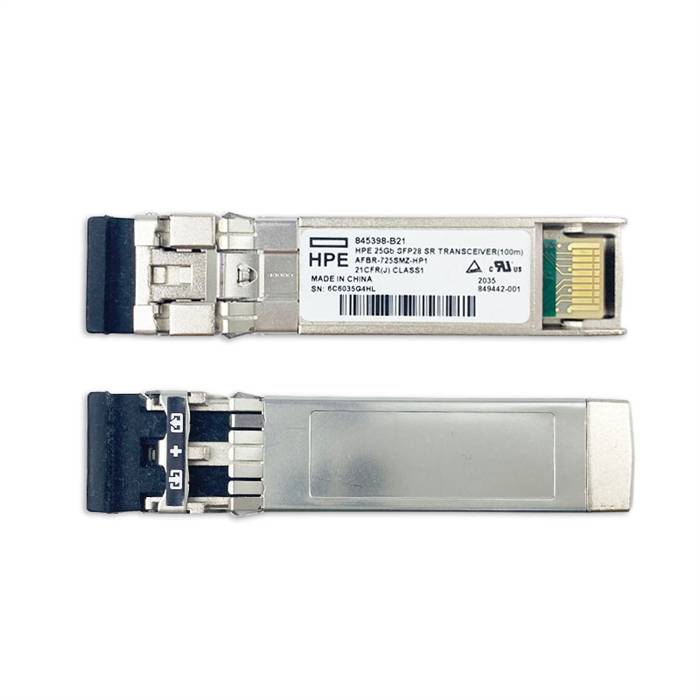

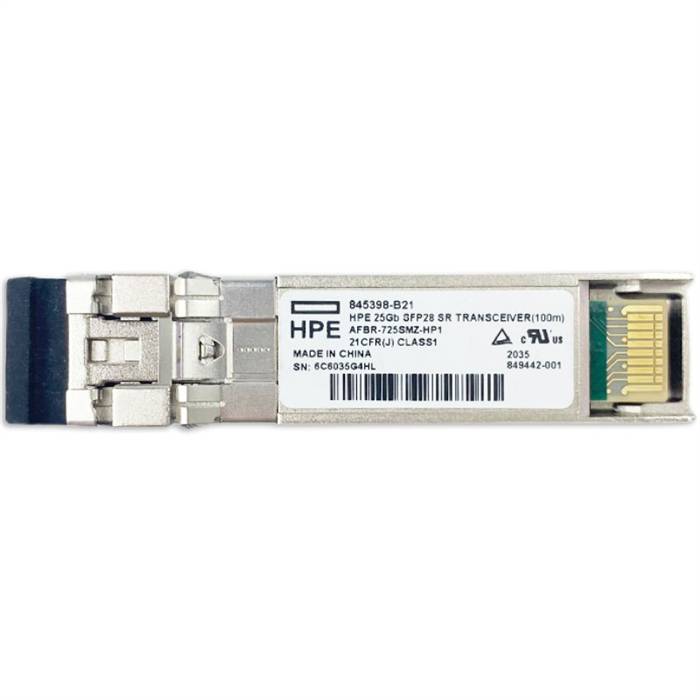

Genuine HPE AFBR-725SMZ-HP1 25G SFP28 SR 100m Transceiver
Genuine HPE 845398-B21 AFBR-725SMZ-HP1

Alternative Views:
Our Price: $285.00
Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Business Days


Product Code: 845398-B21
Qty:

Description

The HPE 845398-B21 is a 25-Gigabit Transceiver in SFP+ form-factor that supports the 25-Gigabit SR standard, providing 25-Gigabit connectivity up to 100m on multimode fiber and comes with 3 Years Warranty.

General
  • Brand: HPE
  • MPN: AFBR-725SMZ-HP1
  • Option Part Number: 845398-B21
  • Spare Part Number: 849442-001
  • Device Type: SFP28 Transceiver Module
  • Form Factor: Plug-in module

Networking
  • Connectivity Technology: Wired
  • Cabling Type: 25GBase-SR
  • Data Link Protocol: 25 Gigabit LAN
  • Data Transfer Rate: 25 Gbps
  • Max Transfer Distance: 328 ft

Expansion & Connectivity
  • Interfaces: 1 x Ethernet 25GBase-SR - LC multi-mode x 2

Specifications
  • Media Type: Multi-Mode Fiber (MMF)
  • TX Wavelength: 850 nm.
  • RX Wavelenght: 850 nm.
  • Minimum Optical Budget: 2.6 dB
  • Maximum Distance: 100m
  • Supported Data Rate: 8.5-28.1 Gbps
  • Supported Applications: 25G Ethernet (25.78Gbps), 10G Ethernet (10.31Gbps)
  • DDM/DOM: Supported
  • Temperature Range: Standard 0°-70°C
  • Connectors: Double LC
  • Tx Wavelength Bandwidth: 20 nm (840-860 nm)
  • Rx Wavelength Bandwidth: 20 nm (840-860 nm)
  • Minimum Transmitting Power: -8.4 dBm
  • Maximum Transmitting Power: 2.4 dBm
  • Receiver Sensitivity: -11 dBm
  • Receiver Overload: 2.4 dBm
  • Transmitter Type: VSCEL Laser
  • Receiver Type: PIN photodiode
  • Power: +3.3V single power supply
  • Chipset: II-VI, Macom, Neo, Oclaro, Renesas Electronics, MAXIM, SEMTECH, Sumitomo
  • Compliance: IEEE 802.3by, RoHS-6, SFF-8432, CE, Class 1 FDA and IEC60825-1 Laser Safety Compliant, SFF-8402, SFF-8431, SFF-8472, SFP+ MSA
