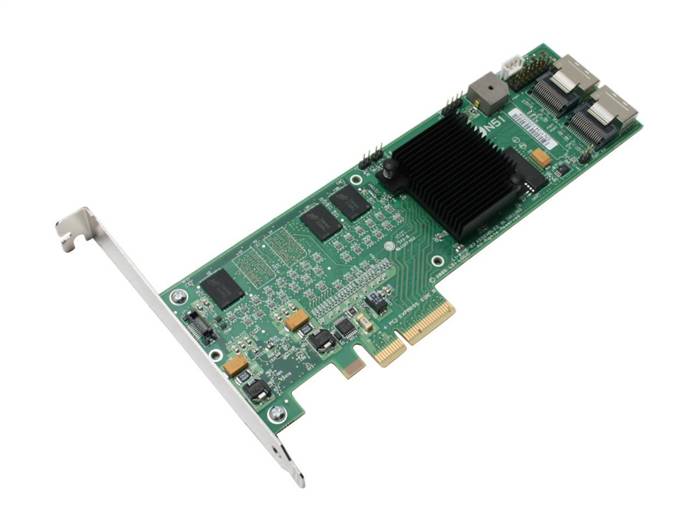

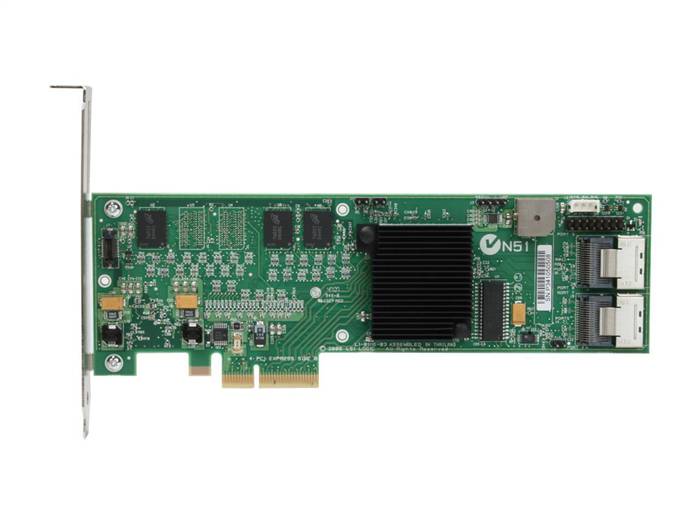

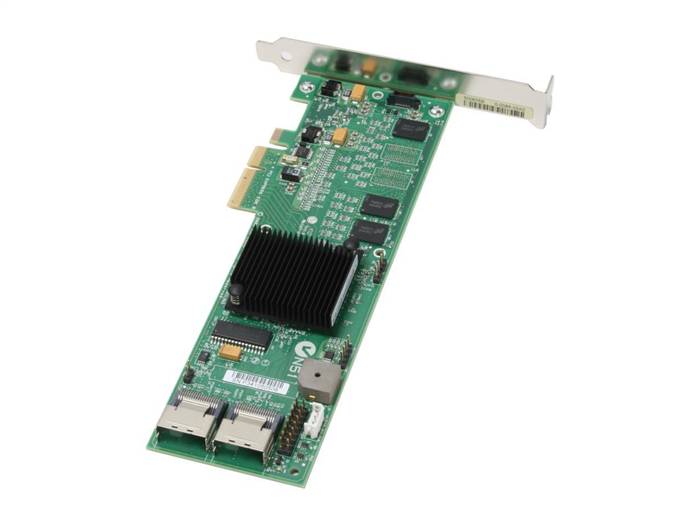

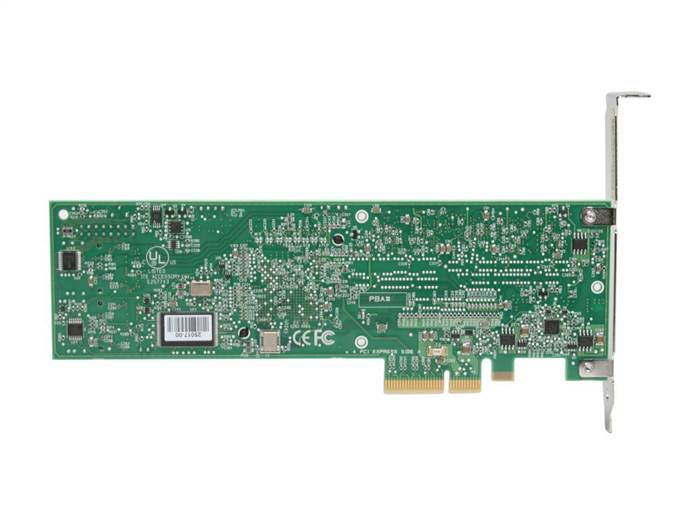

The MegaRAID SAS 8708ELP, a second generation SAS / SATA RAID adapter from LSI, addresses demands in a cost-effective, yet powerful internal RAID solution for entry-level server and small office environments. The MegaRAID SAS 8708ELP adapter features the LSISAS1078 IC, a powerful I/O storage engine that transparently performs all data protection, data checking, and restoration tasks.
This low-profile adapter offers eight internal 3Gb/s Serial Attached SCSI (SAS) ports on two SFF8087 mini multi-lane connectors, 667Mhz DDRII write cache, and a PCI Express host interface. Furthermore, system builders can choose high performance SAS disks or low-cost, high-capacity SATA drives - or a combination of both - for greater system design flexibility. The 8708ELP offers support for both SAS expanders as well as SATA native command queuing (NCQ). Key MegaRAID features include: - RAID 6 as well as RAID 0, 1 & 5
- RAID spans 10, 50 & 60
- Check consistency for background data integrity
- Patrol Read for media scanning and repairing
- Up to 32TB LUN support
Features - LSISAS1078 RAID on Chip
- 500MHz PowerPC
- Hardware RAID 5 & 6 engines
- 8 SAS/SATA compatible ports
- 2 mini-SAS 4i connectors (8087)
- 3 Gb/s throughput per port
- Fits PCI Express slot, x4 or x8
- 667Mhz DDRII cache (128MB)
- Optional battery backup module
- Connect up to 16 intermixed SAS and SATA devices within the same array
- RAID levels 0, 1, 5 and 6
- RAID Spans 10, 50 and 60
- Auto-resume on array rebuild
- Auto resume array reconstruction
- Online Capacity Expansion
- RAID Level Migration (RLM)
- Create 64 logical volumes
- Up to 32TB LUN support
- Comprehensive management tools
- Audible alarm circuit
Benefits - Advanced features to protect data
- High-performance architecture reduces IO bottlenecks
- Unifed management application (MSM) simplifies monitoring and management
Specifications - Part Number: MegaRAID SAS 8708ELP
- Product: Eight-Port 3Gb/s PCI Express SAS/SATA RAID On Chip Adapter
- Solution Provided: Eight-port SAS RAID solution for servers and workstations using up to 16 drives with the flexibility to use either SAS or 3Gb/s SATA drives, or a combination of both
- Environment: Intel™ X86, EM64T and AMD Opteron™
- Physical Dimensions: Low profile, extended half-length (7.71” X 2.536”)
- Connectors: Two internal mini-SAS 4i (SAS SFF8087) connectors
- Device Support: Up to 8 direct-connect or up to 16 with SAS expanders, 3Gb/s SAS and SATA drives
- Host Bus Type: x4 lane PCI Express 1.0a compliant
- Data Transfer Rates: 3Gb/s per port
- I/O Processor/SAS Controller: LSI SAS1078 RAID on Chip (ROC)
- Cache Memory: 667MHz DDR II SDRAM, 128MB
- Battery Backup Unit: Optional intelligent Battery Backup Unit (iBBU) LSIiBBU05
- RAID and Fault Tolerant Features
- RAID levels 0, 1, 5, and 6
- Online Capacity Expansion (OCE)
- Configurable stripe size up to 1MB
- Check Consistency for background data integrity
- Hot Spare support
- Automatic rebuild
- Global and dedicated
- Enclosure affinity
- Emergency SATA hot spare for SAS arrays
- Enclosure management
- SES (inband)
- SGPIO (sideband)
- One 8-pin header to illuminate fault LED
- RAID spans 10, 50 and 60
- Online RAID Level Migration (RLM)
- Fast initialization for quick array setup
- Patrol read for media scanning and repairing
- 64 logical drive support
- DDF compliant Configuration on Disk (COD)
- S.M.A.R.T support
- Auto resume after loss of system power during arrays array rebuild or reconstruction (RLM)
- Up to 32TB LUN support
- Operating Temperature: Maximum ambient: 50°C (40°C w/iBBU)
- Operating Voltage: +3.3V
- Warranty: 3 years, free advanced technical support, advanced replacement option
- Regulatory Certifications: EN55022, EN50082, EN60950; FCC Class A, Class B; Ul1950; UL; CSA C22.2; VCCI; AS3548; BSMI; MIC
- RAID Management
- MegaRAID Management Suite
- MegaRAID Storage Manager
- MegaCLI (command-line interface)
- WebBIOS
- OS Support: Extensive support includes Microsoft® Windows® Server 2003/2000/XP, Linux® and more.
Ordering Part Numbers - LSI MegaRAID SAS 8708ELP KIT

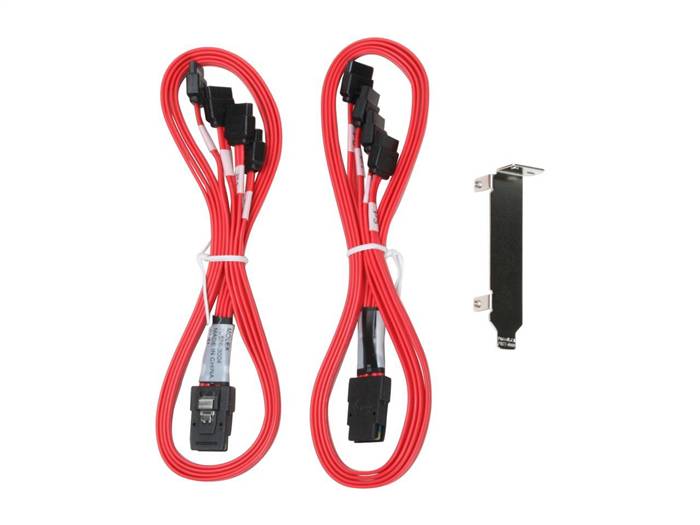

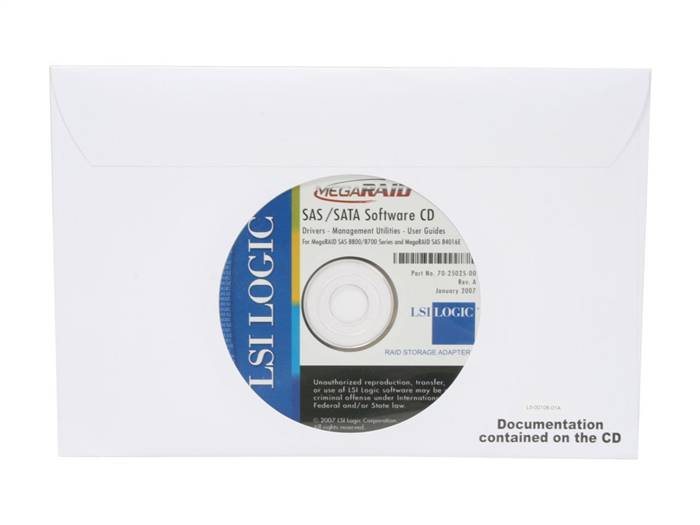

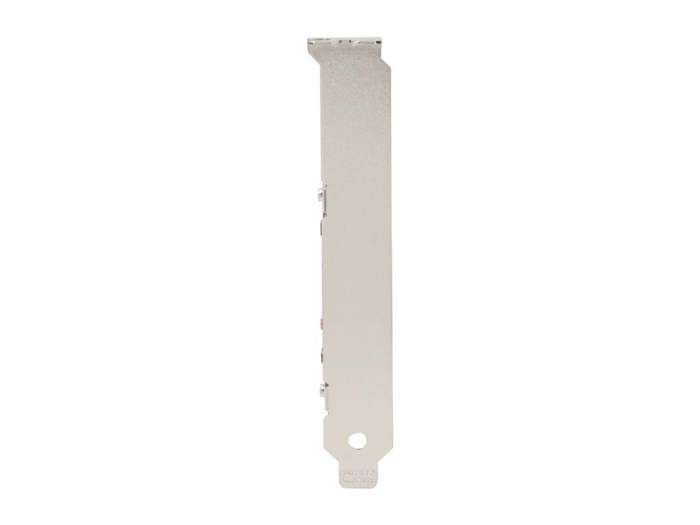

- Individually packaged box with LSI 8708ELP HBA, CD containing drivers, 2 MiniSAS to SAS internal cable, low-profile bracket, and quick installation guide
- Part Number: LSI00141
- LSI MegaRAID SAS 8708ELP BULK
- Bulk pack LSI 8708ELP card only.
|
|
|
 |
|
 |
|
