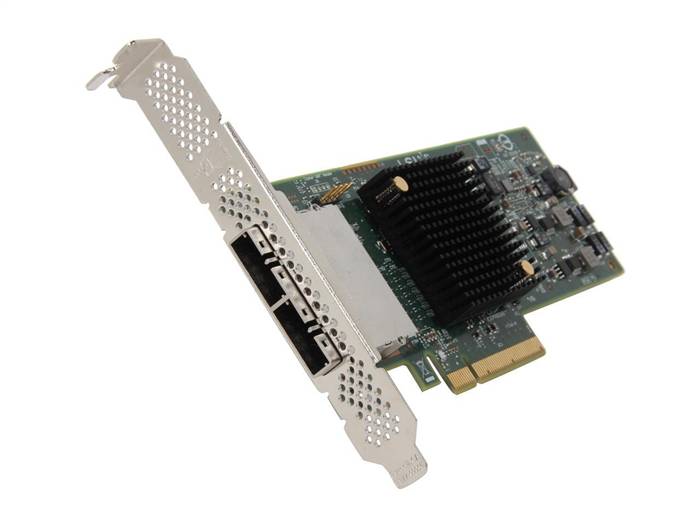

Broadcom LSI 9207-8e LSI00300 PCIe 3.0 x8 SAS2308 8 External Ports 6Gb/s SAS+SATA Host Bus Adapter
9207-8e - Broadcom LSI00300

Alternative Views:
Our Price: $235.00
Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Business Days


Product Code: 9207-8E
Qty:

Description

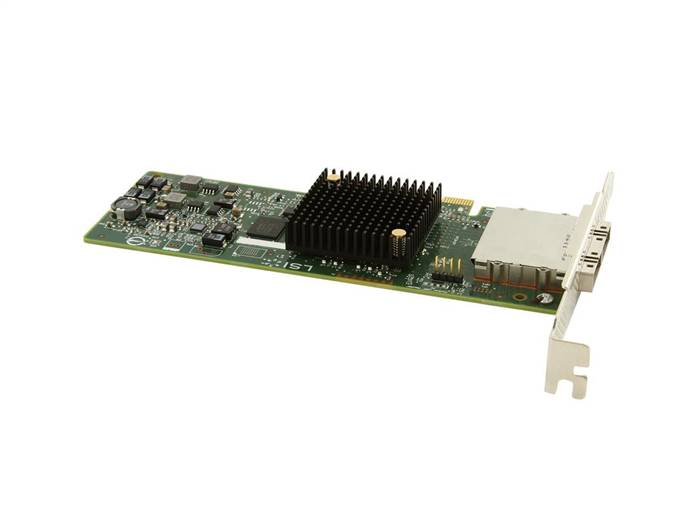

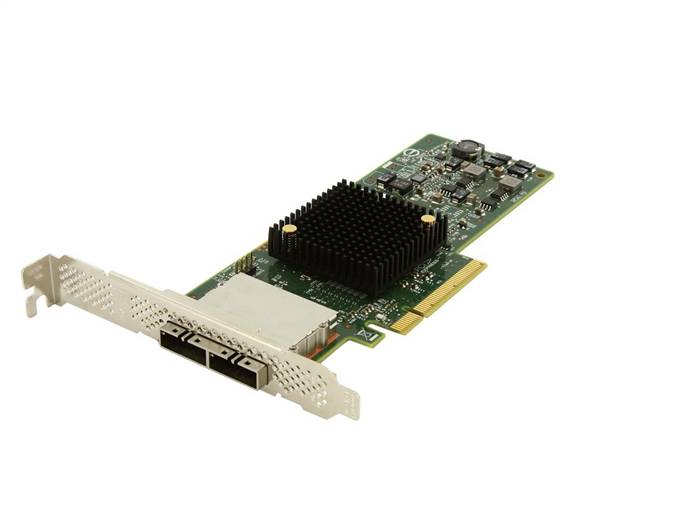

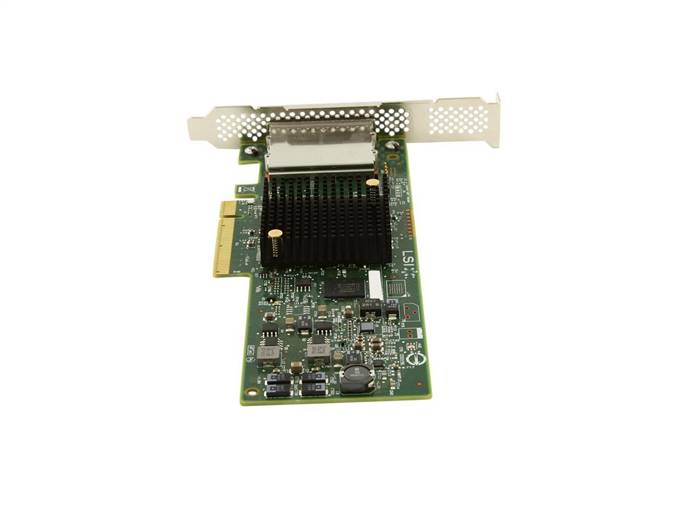

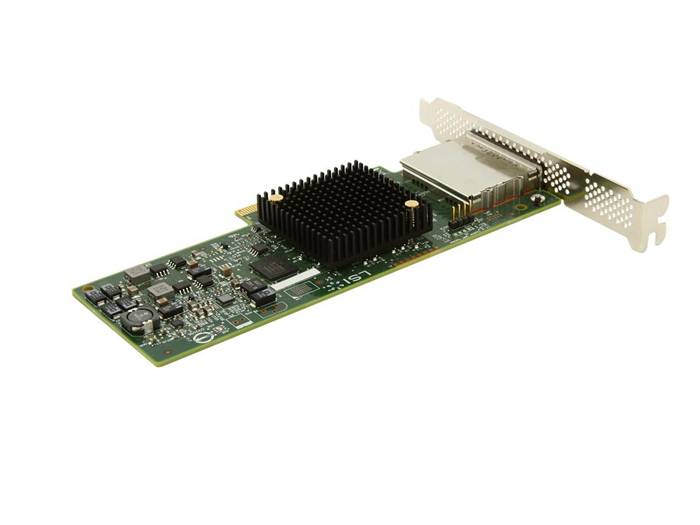

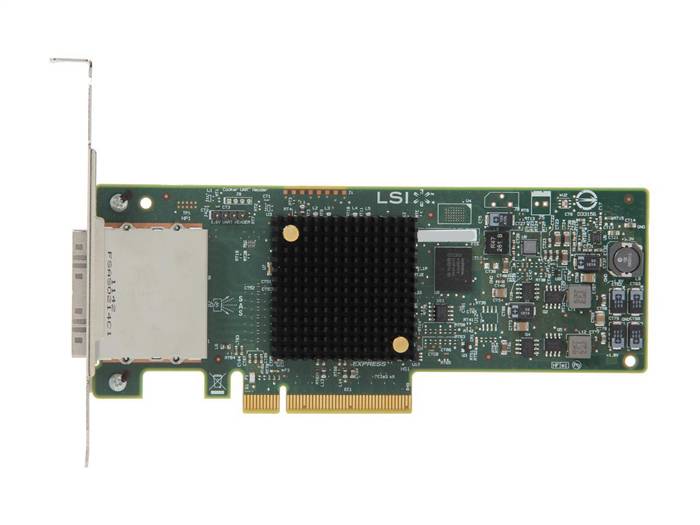

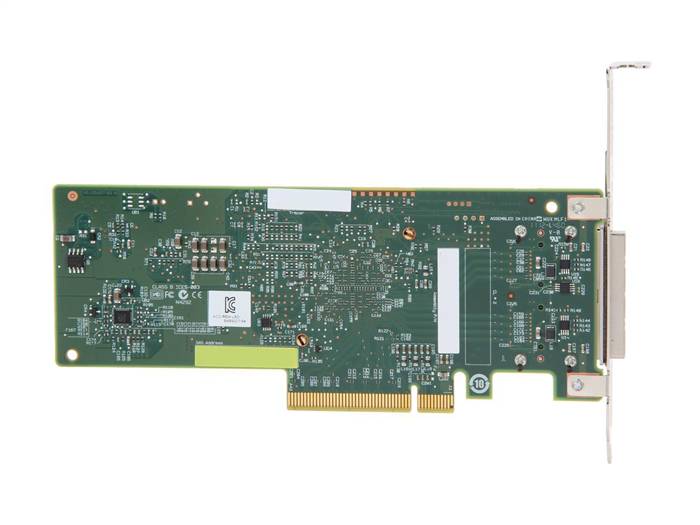

The LSI SAS 9207-8e PCI Express (PCIe)-to-Serial Attached SCSI (SAS) host bus adapter (HBA), referred to as the LSI SAS 9207-8e HBA, provides high-performance external storage connectivity for servers and workstations. The LSI SAS 9207-8e HBA provides eight lanes of 6Gb/s SAS connectivity and is matched with eight lanes of PCIe 3.0 8Gb/s performance.

The low-profile design of the SAS HBA includes a full-height bracket and low-profile mounting bracket that creates a universal fit for any server. The LSI SAS 9207-8e HBA is based on the Fusion-MPT™ architected LSI SAS 2308 controller that integrates the latest enhancements in PCIe 3.0 technology and 6Gb/s SAS technology.

The LSI SAS 9207-8e HBA has onboard Flash memory for the firmware and BIOS.

Features
  • Implements one LSI SAS 2308 eight-port 6Gb/s to PCIe 3.0 controller
  • Supports 8-lanes, full-duplex PCIe 3.0 performance
  • Supports eight external 6Gb/s SATA+SAS ports
  • Supports SAS link rates of 1.5Gb/s, 3.0Gb/s, and 6.0Gb/s

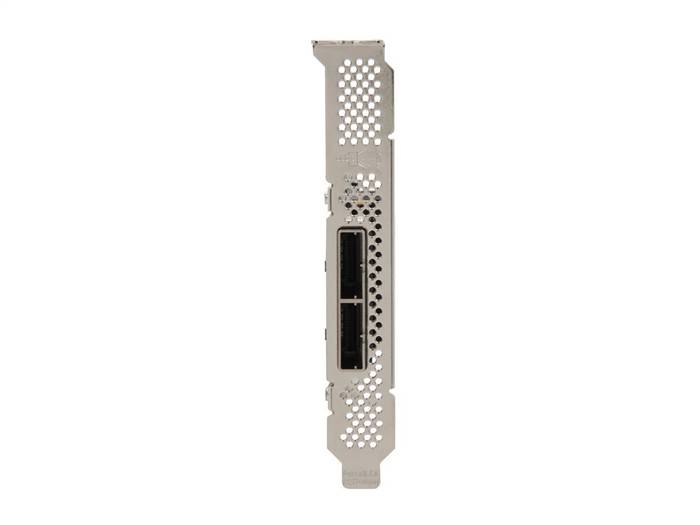

  • Provides two x4 external mini-SAS connectors (SFF-8088)
  • Supports up to 1024 SATA or SAS end devices

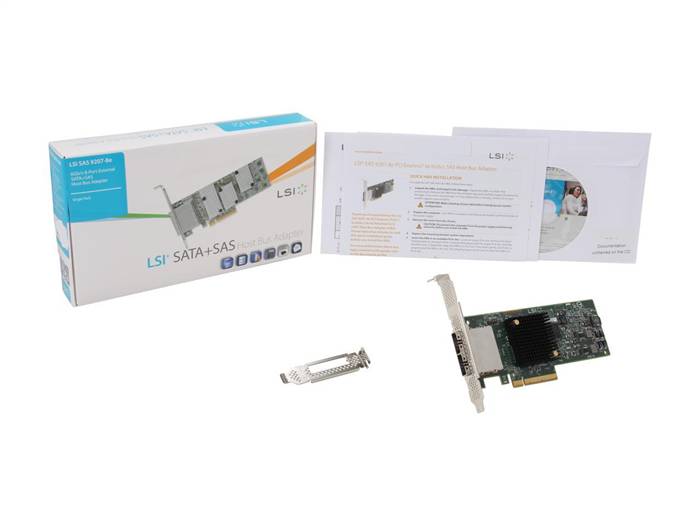

  • Offered with a full-height bracket and low-profile vented bracket
  • Provides one heartbeat LED

Specifications
  • Product: SAS 9207-8e Host Bus Adapter
  • OPN: LSI00300
  • I/O Controller: SAS 2308/ Fusion MPT 2.0
  • Storage Connectivity; Data Transfer Rates: 8 ports, 6Gb/s SAS 2.1 Compliant
  • SAS Bandwidth: Half Duplex, 600 MB/s per lane
  • Port Configurations:
    • 8 ea, x1 ports (individual drives)
    • 2 ea, x4 wide port
  • Host Bus: x8 lane, PCI Express 3.0 compliant
  • PCI Data Burst Transfer Rates: Half Duplex, x8, PCIe, 8000 MB/s
  • Physical Dimensions: Low Profile (2.7” x 6.6”)
  • Connectors: Two mini-SAS external connectors (SFF8088)
  • Brackets: Full height and low profile
  • Cable Support: Passive Copper, Active Copper
  • PCI Card Type: 3.3 V Add-in Card
  • Operating Voltage: +12V +/-8%; 3.3V +/-9%
  • PCI Power (Nominal): 9.8W
  • Device Support: 1024 Non-RAID SAS/SATA devices
  • Environmental
    • Operating:
      • 0°C to 55°C
      • 5 to 90% Non-condensing
    • Storage:
      • -45°C to 105°C
      • 5 to 90% Non-condensing
  • MTBF: >2,000,000 Hours
  • Regulatory Certifications: EMC: Class B-US (CFR 47, P15B); Canada (ICES-003); Japan (V-3/02.04); Europe (EN55022/EN55024); Australia/New Zealand (AS/NZS 3548); Korea (N-B 2-0001-404); Safety: EN60950; RoHS; WEEE
  • OS Support: Microsoft Windows, Linux (SuSE , Red Hat), Solaris, VMware
