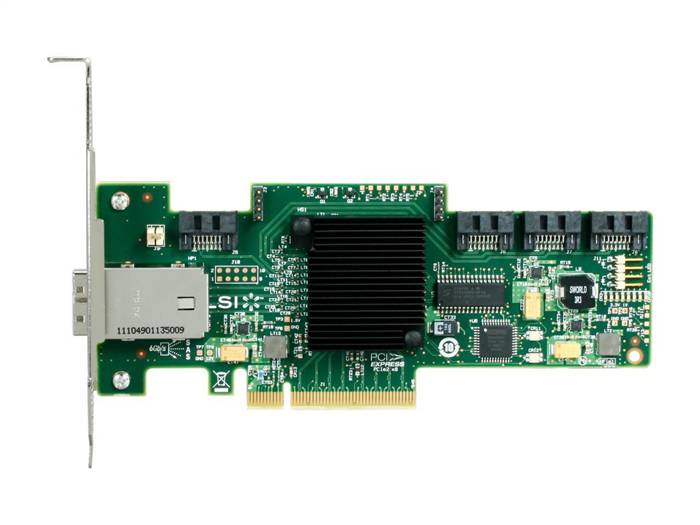

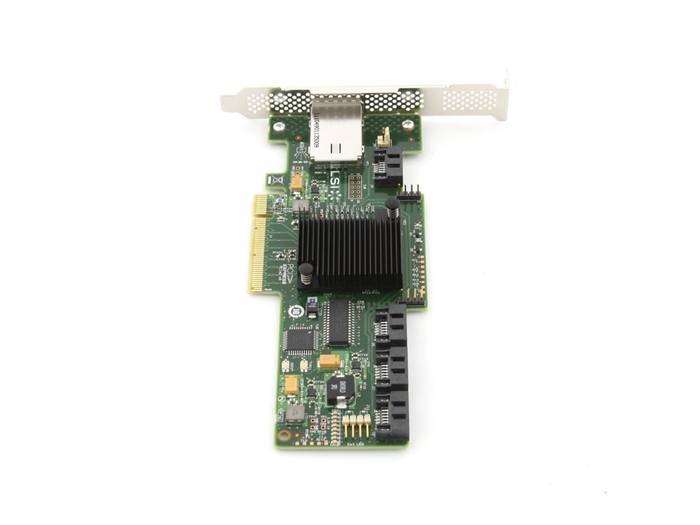

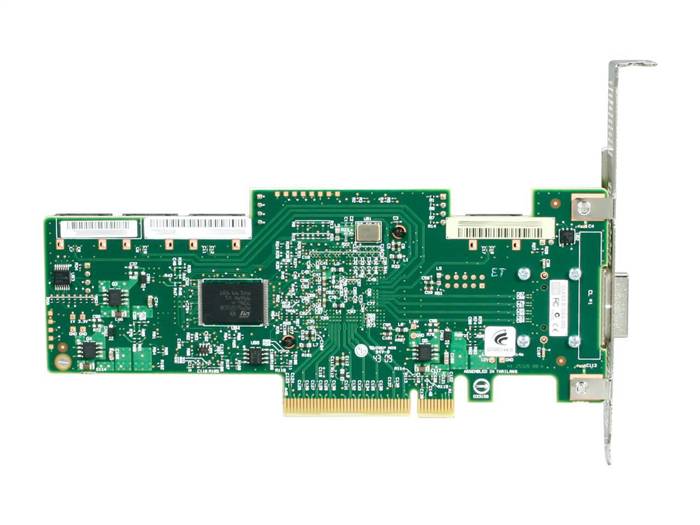

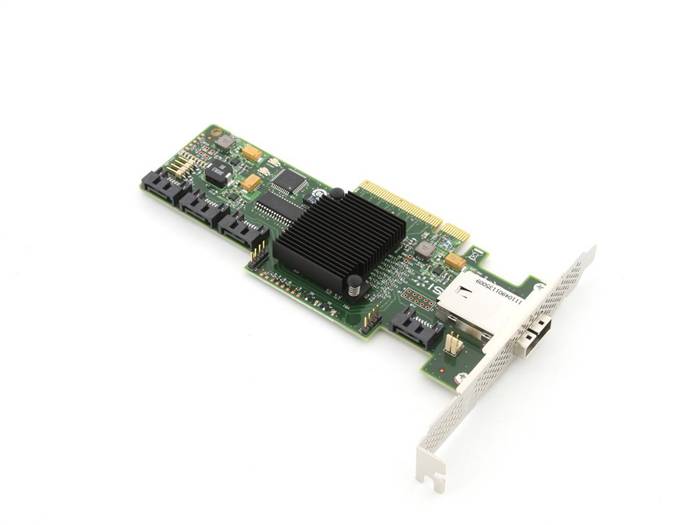

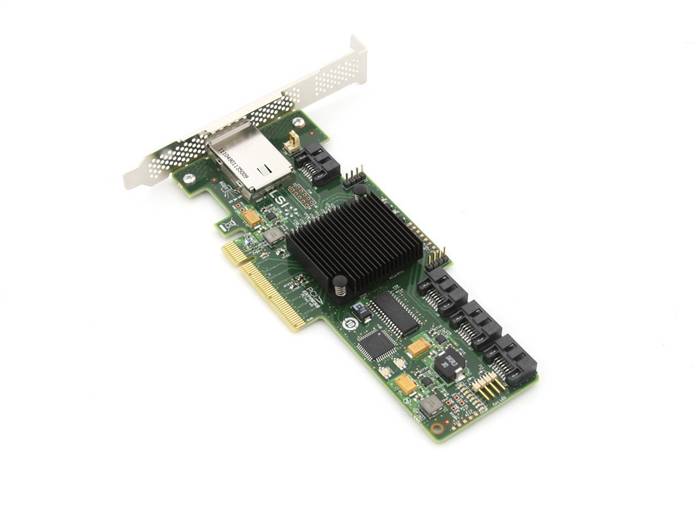

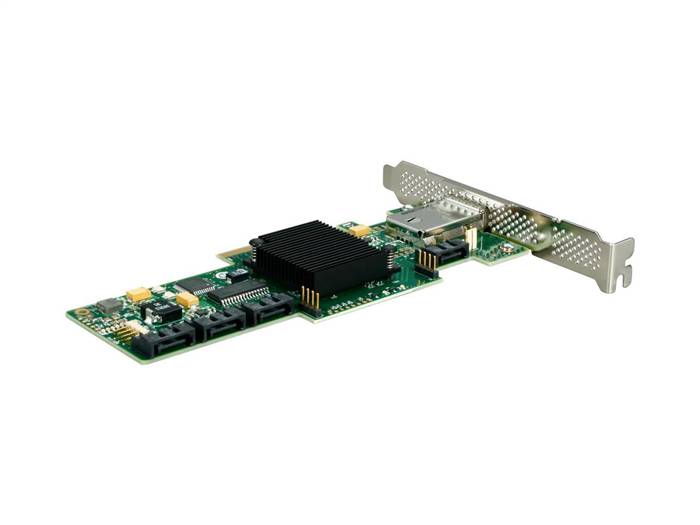

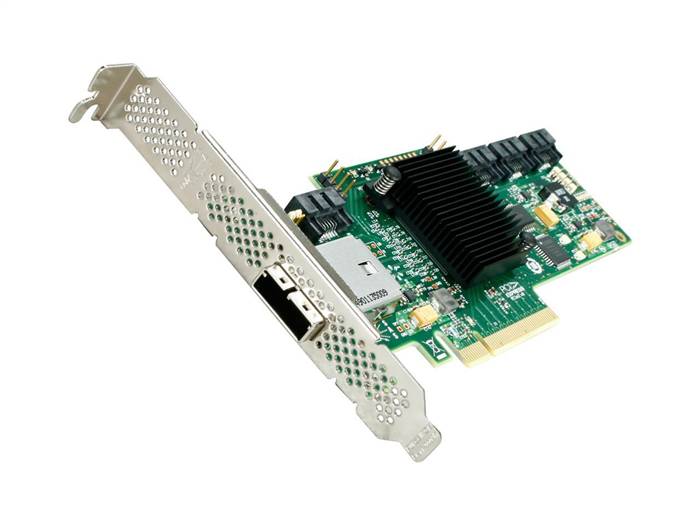

The LSI SAS 9212-4i4e PCI Express® (PCIe®)-to-Serial Attached SCSI (SAS) host bus adapter (HBA), hereinafter referred to as the LSI SAS 9212-4i4e HBA, provides high-performance internal and external storage connectivity for servers and workstations. The LSI SAS 9212-4i4e HBA provides eight lanes of 6Gb/s SAS connectivity and is matched with eight lanes of PCIe 2.0 5Gb/s performance. The low-profile design of the SAS HBA includes a full-height bracket and low-profile mounting bracket that creates a universal fit for any server. The LSI SAS 9212-4i4e HBA is based on the Fusion-MPT™-architected LSI® SAS 2008 controller that integrates the latest enhancements in PCIe 2.0 technology and 6Gb/s SAS technology.
The LSI SAS 9212-4i4e HBA has onboard Flash memory for the firmware and BIOS, and NVSRAM for RAID support (RAID 0, RAID 1, RAID 10, or RAID 1E).
Features - Implements one LSI SAS 2008 eight-port 6Gb/s to PCIe 2.0 controller
- Supports eight-lane, full-duplex PCIe 2.0 performance
- Supports four internal 6Gb/s SATA+SAS ports
- Supports four external 6Gb/s SATA+SAS ports
- Supports SATA and SAS link rates of 1.5Gb/s, 3Gb/s, and 6Gb/s
- Provides four x1 internal SATA connectors
- Provides one x4 external mini-SAS connector (SFF-8088)
- Supports passive cable
- Supports RAID 0, RAID 1, RAID 10, or RAID 1E
- Supports up to 256 SATA or SAS end devices

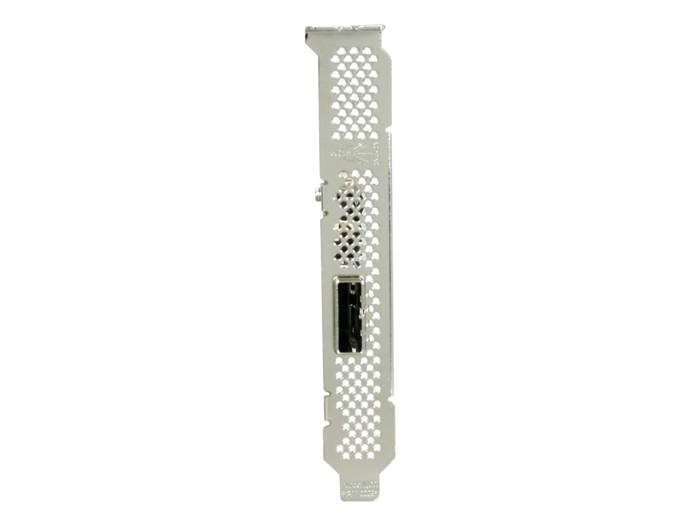

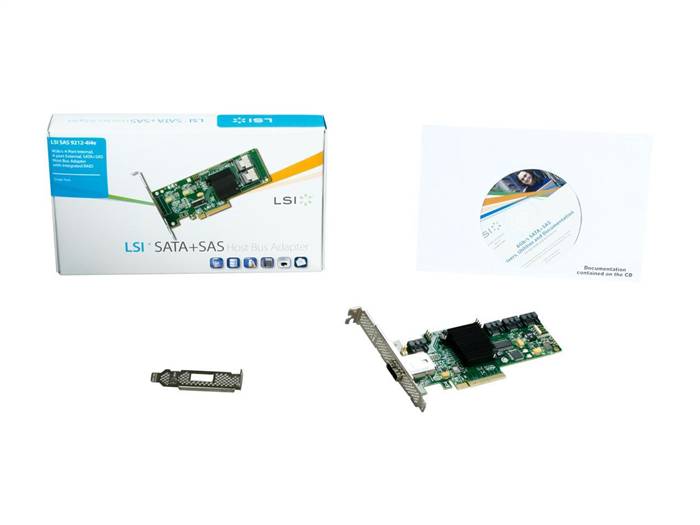

- Offers a full-height bracket and low-profile bracket
- Provides activity LEDs
- Provides a universal asynchronous receiver/transmitter (UART) debug/diagnostic port
Key Advantages - Provides state of the art connectivity for servers and appliances with internal storage and the ability to add external storage
- 8 lanes of PCIe 2.0 provides fast signaling for high-bandwidth applications
- High performance with 6Gb/s data transfer rates
Specifications - Product: SAS 9212-4i4e Host Bus Adapter
- OPN: LSI00192
- I/O Controller: SAS2008/ Fusion MPT 2.0
- Storage Connectivity; Data Transfer Rates: 8 ports, 6Gb/s SAS 2.0 Compliant
- SAS Bandwidth: Half Duplex, 600 MB/s per lane
- Port Configurations:
- 4 ea, x1 internal ports (individual drives)
- 4 ea, x1 external ports
- 1ea, x4 external wide port
- Host Bus: x8 lane, PCI Express 2.0 compliant
- PCI Data Burst Transfer Rates: Half Duplex, x8, PCIe, 4000 MB/s
- Physical Dimensions: Low Profile (2.6” x 6.6”)
- Connectors: Four x1 internal SATA , One x4 external mini-SAS (SFF8088)
- Brackets: Full height and low profile
- Cable Support: Passive Copper
- PCI Card Type: 3.3 V Add-in Card
- Operating Voltage: +12V +/-8%; 3.3V +/-9%
- PCI Power (Nominal): 7.56W typical (Airflow min 200 LFM)
- Device Support: 256 SAS/SATA devices
- Environmental
- Operating:
- 0°C to 55°C
- 5 to 90% Non-condensing
- Storage:
- -45°C to 105°C
- 5 to 90% Non-condensing
- MTBF: >2,000,000 Hours
- Regulatory Certifications: EMC: Class B-US (CFR 47, P15B); Canada (ICES-003); Japan (V-3/02.04); Europe (EN55022/EN55024); Australia/New Zealand (AS/NZS 3548); Korea (N-B 2-0001-404); Safety: EN60950; RoHS; WEEE
- OS Support: Microsoft Windows, Linux (SuSE , Red Hat), Solaris, VMware.
|
|
|
 |
|
 |
|
