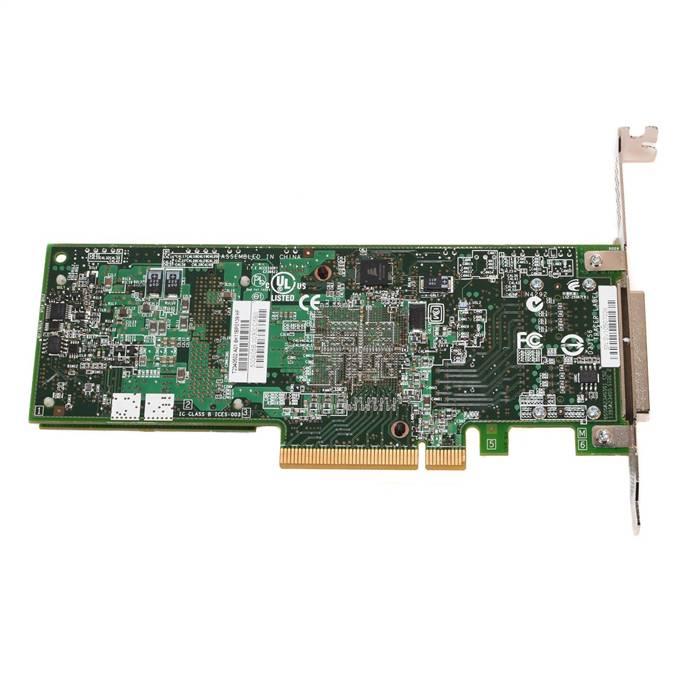

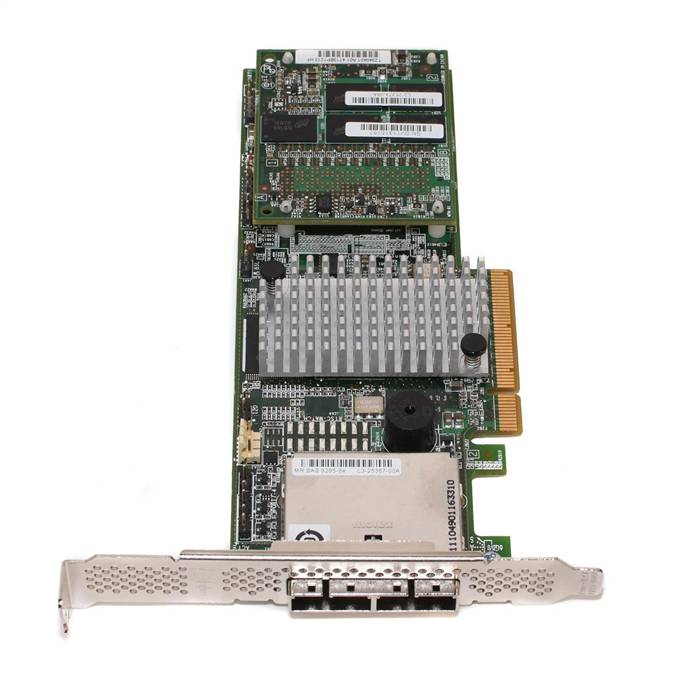

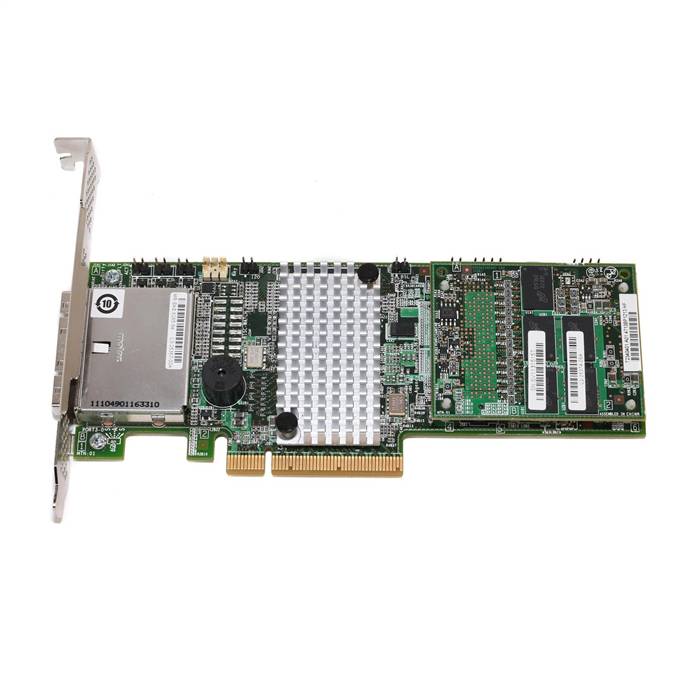

The MegaRAID SAS 9285-8e, with eight external ports, delivers two 800MHz PowerPC processor cores and a 72-bit DDRIII interface that drives 1GB cache memory. This controller is ideal for configuring external storage enclosures with high-performance SAS hard drives, high-capacity SATA hard drives or application-accelerating solid state drives (SSDs) or for building more sophisticated configurations using LSI 6Gb/s SAS switch products. Users can deploy the MegaRAID SAS 9285-8e in existing HDD-based server environments to help achieve significant performance gains. Alternatively, for users implementing server platforms based on solid state storage, these next-generation MegaRAID controllers can help exploit the potential of SSDs for unsurpassed performance and enterprise-class reliability.
Features - Eight external SATA+SAS ports
- Two mini-SAS SFF-8088 x4 connectors
- 6Gb/s throughput per port
- LSISAS2208 Dual Core ROC - 800MHz PowerPC®
- MD2 Low profile (6.6" X 2.536")
- x8 PCI Express 2.0 host interface
- 1GB DDRIII cache (1333MHz)
- Optional battery backup unit (LSIiBBU09 remote mount)
- Connect up to 240 SATA and/or SAS devices
- RAID levels 0, 1, 5 and 6
- RAID spans 10, 50 and 60
- Auto-resume on rebuild
- Auto-resume on reconstruction
- Online Capacity Expansion (OCE)
- Online RAID Level Migration (RLM)
- SSD support with SSD Guard™
- Global and dedicated hot spare with revertible hot spare support
- Automatic rebuild
- Enclosure affinity
- Emergency SATA hot spare for SAS arrays
- Single controller multipathing (failover)
- I/O load balancing
- Comprehensive RAID management suite
Key Advantages - Second generation 6Gb/s SATA+SAS with unprecedented levels of performance
- Ideal for external storage environments using up to 240 SAS, SATA and solid state drives (SSDs)
- Unsurpassed IOPs performance and advanced software options help users realize full benefits of SSD deployments
- Meets high I/O transaction demands of database and datacenter applications
- Provides the sustained data transfer rates and high sequential bandwidth to meet processing requirements of digital media, video and imaging environments
Specifications - Product: MegaRAID SAS 9285-8e
- OPN: LSI00284
- Solution Provided: Eight-port external SATA+SAS solution for performance-hungry external storage environments using up to 240 SAS, SATA and solid state drives (SSDs)
- Physical Dimensions: MD2 Low profile (6.6" X 2.536")
- Internal Connectors: Two Mini-SAS SFF8088 external connectors
- Device Support: Up to 240 SAS and/or SATA hard drives and SSDs
- Host Bus Type: x8 lane PCI Express 2.0 compliant
- Data Transfer Rates: Up to 6Gb/s per port
- I/O Processor/SAS Controller: LSISAS2208 Dual-Core RAID on Chip (ROC)
- Cache Memory: 1 GB 1333MHz DDRIII SDRAM
- Battery Backup Unit: LSIiBBU09, a heat-tolerant intelligent battery back-up module; remote mount
- Key RAID Data Protection Features:
- RAID levels 0, 1, 5, and 6
- RAID spans 10, 50, and 60
- Online Capacity Expansion (OCE)
- Online RAID Level Migration (RLM)
- Auto resume after loss of system power during arrays array rebuild or reconstruction (RLM)
- Single controller Multipathing (failover)
- Load Balancing
- Configurable stripe size up to 1MB
- Fast initialization for quick array setup
- Check Consistency for background data integrity
- SafeStore™ Encryption Services
- – Instant Secure Erase
- – (Full SafeStore Encryption key sold separately)
- SSD Support with SSD Guard™
- Patrol read for media scanning and repairing
- 64 logical drive support
- Up to 64TB LUN support
- DDF compliant Configuration on Disk (COD)
- S.M.A.R.T. support
- Global and dedicated Hot Spare with Revertible Hot Spare support
- – Automatic rebuild
- – Enclosure affinity
- – Emergency SATA hot spare for SAS arrays
- Enclosure management
- – SES (inband)
- – SGPIO (sideband)
- Operating Temperature: Maximum ambient: 60°C (55°C w/LSIiBBU09)
- Operating Voltage: +3.3V
- MTBF (Calculated): 808,712 hours
- Hardware Warranty: 3 years, free advanced technical support, advanced replacement option
- Regulatory Certifications: EN55022, EN55024, EN60950, EN 61000-3-2, EN 61000-3-3; FCC Class A, Class B; UL1950; UL; CSA C22.2; VCCI; RRL for MIC; BSMI; C-tick
- RAID Management:
- MegaRAID Management Suite
- MegaRAID Storage Manager
- MegaCLI (command-line interface)
- WebBIOS
- Optional SSD Optimization ?:
- MegaRAID CacheCade Software provides 50x boost in READs from SSD Cache
- MegaRAID FastPath Software delivers up to 300,000 IOPS performance on SSD arrays
- OS Support: Extensive support includes Microsoft® Windows® Vista/2008/Server 2003/2000/XP, Linux®, Solaris™ (x86), Netware®, FreeBSD®, VMware® and more.
|
|
|
 |
|
 |
|
