Broadcom LSI 9285CV-8e LSI00298 Eight-Port 6Gb/s PCI Express SATA+SAS RAID Controller with CacheVault Flash Cache Protection
9285CV-8e - Broadcom LSI00298

Alternative Views:
Our Price: $120.00
Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Business Days


Product Code: 9285CV-8E
Qty:

Description

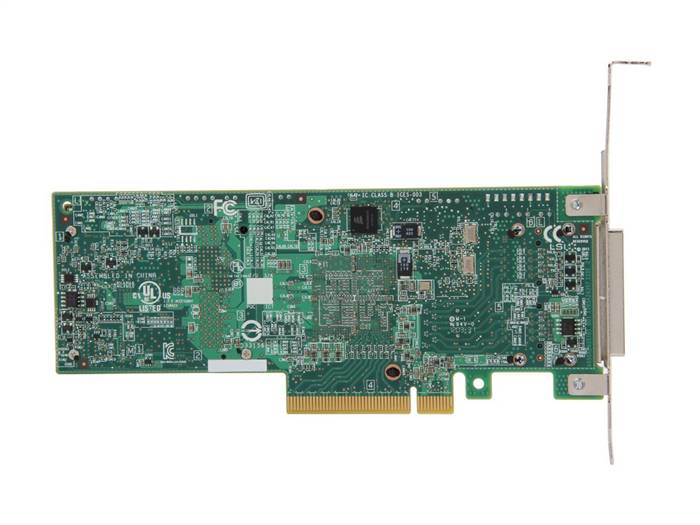

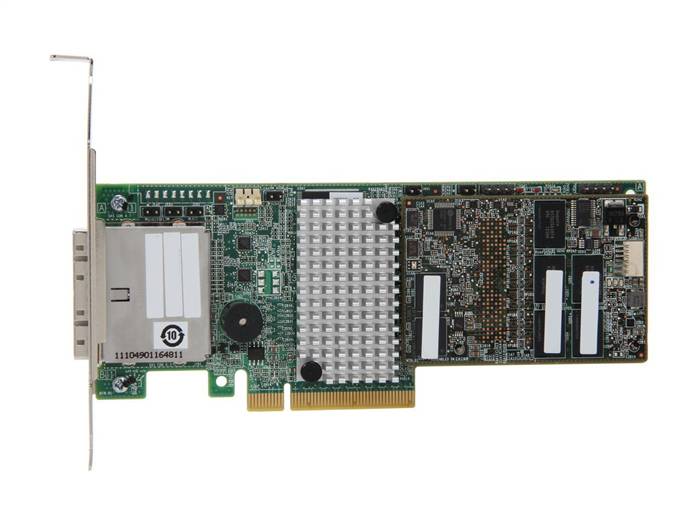

The MegaRAID SAS 9285CV-8e RAID controller is a SAS2208-based low-profile PCI Express® (PCIe®) RAID controller that offers a 6Gb/s transfer rate. It controls eight external SAS/SATA ports through two SFF-8088 x4 external mini SAS connectors.

The MegaRAID SAS 9285CV-8e RAID controller supports the CVFM03 module, which is an on-board 1-GB nonvolatile DDR3 1333-MT/s CacheVault Flash Module. The CVFM03 module connects to a remote CVPM02 module.

Features
  • Eight external SATA+SAS ports

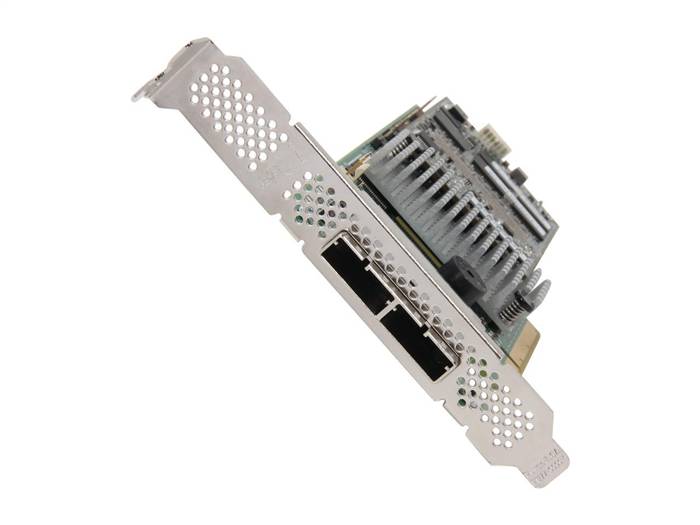

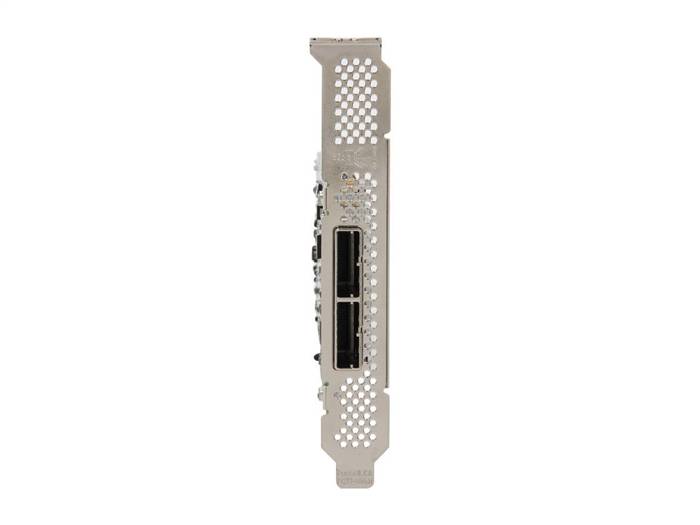

  • Two mini-SAS SFF-8088 x4 connectors
  • 6Gb/s throughput per port
  • LSISAS2208 Dual Core ROC
  • o 800MHz PowerPC®
  • MD2 Low profile (6.6" X 2.536")
  • x8 PCI Express 2.0 host interface
  • 1GB DDRIII cache (1333MHz)
  • CacheVault flash cache protection (included)
  • Connect up to 240 SATA and/or SAS devices
  • RAID levels 0, 1, 5 and 6
  • RAID spans 10, 50 and 60

Key Advantages
  • Second generation 6Gb/s SATA+SAS with unprecedented levels of performance
  • External JBOD expansion for up to 240 SATA and SAS HDDs and SSDs
  • Unsurpassed IOPs performance and advanced software options help users realize full benefits of SSD deployments
  • CacheVault technology included for greener, lower total cost cache protection
  • Support for MegaRAID CacheCade® Pro 2.0 read/write caching software to accelerate I/O performance of existing HDD arrays using SSDs as high-performance cache.
  • Meets high I/O transaction demands of database and datacenter applications
  • Provides the sustained data transfer rates and high sequential bandwidth to meet processing requirements of digital media, video and imaging environments

Specifications
  • Product: MegaRAID SAS 9285CV-8e
  • OPN: LSI00298
  • Solution Provided: Eight-port external SATA+SAS solution for performance-hungry external storage environments using up to 240 SAS, SATA and solid state drives (SSDs); reduces maintenance costs and total cost of ownership using CacheVault technology.
  • Physical Dimensions: MD2 Low profile (2.536”x6.60”)
  • Internal Connectors: Two Mini-SAS SFF8088 internal connectors
  • Device Support: Up to 240 SAS and/or SATA hard drives and SSDs
  • Host Bus Type: x8 lane PCI Express 2.0 compliant
  • Data Transfer Rates: Up to 6Gb/s per port
  • I/O Processor/SAS Controller: LSISAS2208 Dual-Core RAID on Chip (ROC)
  • Cache Memory: 1 GB 1333MHz DDRIII SDRAM
  • Cache Protection: MegaRAID CacheVault flash cache protection (included)
  • Key RAID Data Protection Features:
    • RAID levels 0, 1, 5 and 6
    • RAID spans 10, 50 and 60
    • Online Capacity Expansion (OCE)
    • Online RAID Level Migration (RLM)
    • Auto resume after loss of system power during arrays
    • array rebuild or reconstruction (RLM)
    • Single controller Multipathing (failover)
    • Load Balancing
    • Configurable stripe size up to 1MB
    • Fast initialization for quick array setup
    • Check Consistency for background data integrity
    • SSD Support with SSD Guard™
    • Patrol read for media scanning and repairing
    • 64 logical drive support
    • Up to 64TB LUN support
    • DDF compliant Configuration on Disk (COD)
    • S.M.A.R.T support
    • Global and dedicated Hot Spare with Revertible
    • Hot Spare support
      • – Automatic rebuild
      • – Enclosure affinity
      • – Emergency SATA hot spare for SAS arrays
    • Enclosure management
      • – SES (inband)
      • – SGPIO (sideband)
  • Operating Temperature: Maximum ambient: Controller Card: 60°C, Cap Pack: 55°C
  • Operating Voltage: +3.3V, +12V
  • Hardware Warranty: 3 years, free advanced technical support, advanced replacement option
  • Regulatory Certifications: EN55022, EN55024, EN60950, EN 61000-3-2, EN 61000-3-3; FCC Class A, Class B; UL1950; UL; CSA C22.2; VCCI; RRL for MIC; BSMI; C-tick
  • RAID Management:
    • MegaRAID Management Suite
      • MegaRAID Storage Manager
      • MegaCLI (command-line interface)
      • WebBIOS
  • Optional SSD Optimization:
    • MegaRAID CacheCade Software uses SSDs in front of HDD volumes to create high-capacity, high-performance controller cache pools
    • MegaRAID Fast Path Software is designed to provide high-performance I/O acceleration for SSD arrays connected to 6Gb/s MegaRAID SATA+SAS controllers
  • OS Support: Extensive support includes Microsoft® Windows® Vista/2008/Server 2003/2000/XP, Linux®, Solaris™ (x86), Netware®, FreeBSD®, VMware® and more.
