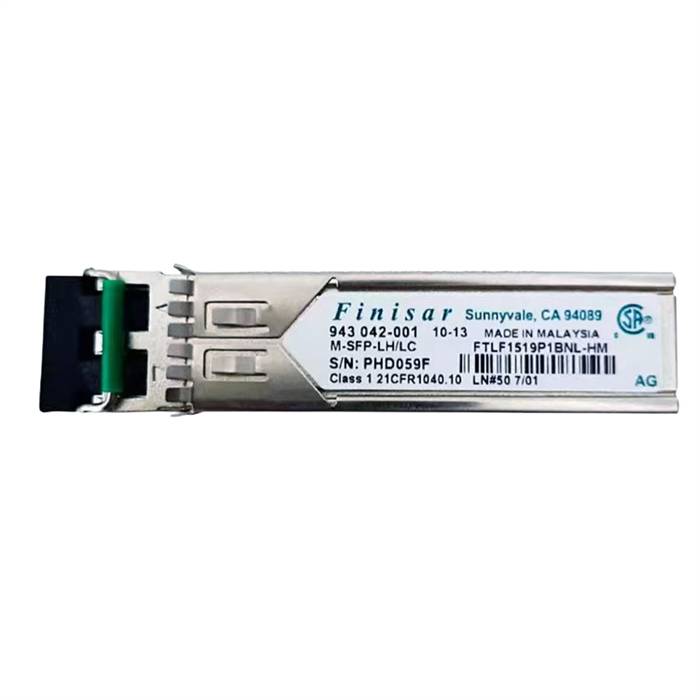

HIRSCHMANN 943042-001 M-SFP-LH/LC Gigabit LH 80km SFP Transceiver Module
Product description
Type: M-SFP-LH/LC, SFP Transceiver LH
Description: SFP Fiberoptic Gigabit Ethernet Transceiver LH
Part Number: 943042001
Port type and quantity: 1 x 1000 Mbit/s with LC connector
Network size - length of cable
Single mode fiber (LH) 9/125 µm (long haul transceiver): 23 - 80 km (Link Budget at 1550 nm = 5 - 22 dB; A = 0,25 dB/km; D = 19 ps/(nm*km))
Power requirements
Operating Voltage: power supply via the switch
Power consumption: 1 W
Software
Diagnostics: Optical input and output power, transceiver temperature
Ambient conditions
MTBF (Telecordia SR-332 Issue 3) @ 25°C: 482 Years
Operating temperature: 0-+60 °C
Storage/transport temperature:-40-+85 °C
Relative humidity (non-condensing): 5-95 %
Mechanical construction
Dimensions (WxHxD): 13.4 mm x 8.5 mm x 56.5 mm
Weight: 30 g
Mounting: SFP slot
Protection class: IP20
Mechanical stability
IEC 60068-2-6 vibration: 1 mm, 2 Hz-13.2 Hz, 90 min.; 0.7 g, 13.2 Hz-100 Hz, 90 min.; 3.5 mm, 3 Hz-9 Hz, 10 cycles, 1 octave/min.; 1 g, 9 Hz-150 Hz, 10 cycles, 1 octave/min
IEC 60068-2-27 shock: 15 g, 11 ms duration, 18 shocks
EMC interference immunity
EN 61000-4-2 electrostatic discharge (ESD): 6 kV contact discharge, 8 kV air discharge
EN 61000-4-3 electromagnetic field: 10 V/m (80-1000 MHz)
EN 61000-4-4 fast transients (burst): 2 kV power line, 1 kV data line
EN 61000-4-5 surge voltage: power line: 2 kV (line/earth), 1 kV (line/line), 1 kV data line
EN 61000-4-6 Conducted Immunity: 3 V (10 kHz-150 kHz), 10 V (150 kHz-80 MHz)
EMC emitted immunity
EN 55022:
EN 55022 Class A
FCC CFR47 Part 15:
FCC 47CFR Part 15, Class A
Approvals
Safety of information technology equipment:
EN60950
Laser Protection:
class 1 according to IEC60825-1
Hazardous locations:
depending on deployed switch
Shipbuilding:
depending on deployed switch
Reliability
Guarantee:
24 months (please refer to the terms of guarantee for detailed information)
Scope of delivery and accessories
Scope of delivery:
SFP module
