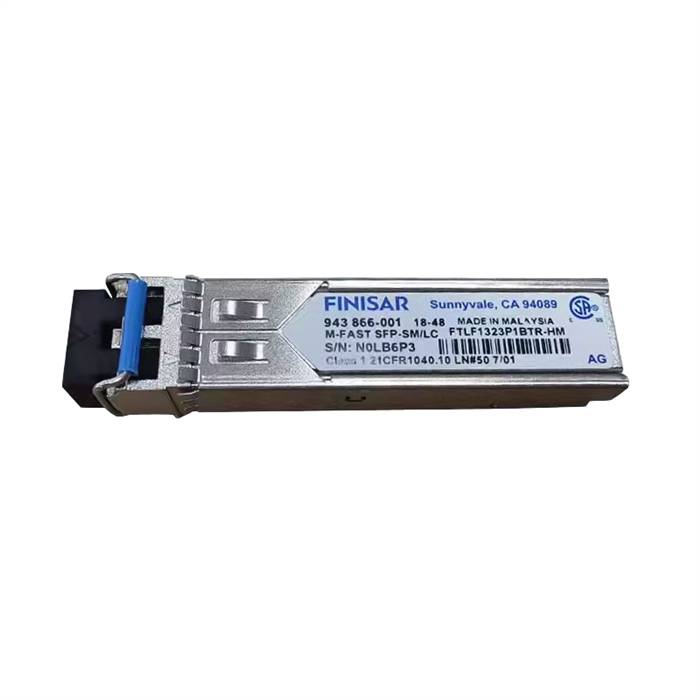

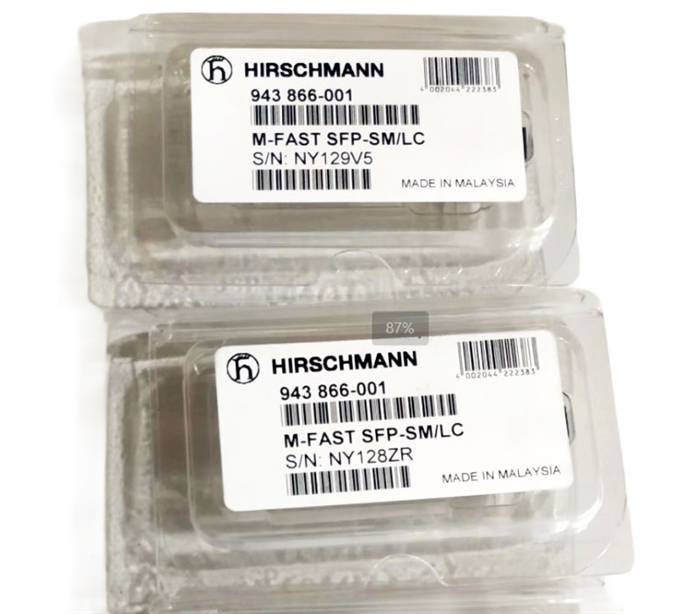

HIRSCHMANN 943866-001 M-FAST SFP-SM/LC Fast Ethernet 10km SFP Transceiver Module

 Product description

 Description： SFP Fiberoptic Fast-ETHERNET Transceiver

 Port type and quantity： 1 x 100 BASE-FX with LC connector

 Type： M-FAST SFP-SM/LC

 Order No.： 943 866-001

 Network size - length of cable

•  Multimode fiber (MM) 50/125 µm：
• Multimode fiber (MM) 62.5/125 µm：
• Single mode fiber (SM) 9/125 µm： 0 - 25 km 0 - 13 dB link budget at 1310nm A = 0.4 dB/km, 3 dB Reserve, B = 800 MHz x km
•  Single mode fiber (LH) 9/125 µm (long haul transceiver)：

Power requirements

•  Operating voltage power supply via the switch
•  Power consumption 1 W

 Service

•  Diagnostics optical input- and output power, transceiver temperature

 Ambient conditions

•  Operating temperature 0ºC to +60ºC
•  Storage/transport temperature-40°C to +85°C
•  Relative humidity (non-condensing) 10% to 95%
•  MTBF 652 years; Telcordia SR-332

 Mechanical construction

•  Dimensions (W x H x D) 20 mm x 18 mm x 50 mm
•  Mounting SFP slot
•  Weight 40 g
•  Protection class IP 20

 Mechanical stability

•  IEC 60068-2-27 shock 15 g, 11 ms duration, 18 shocks
•  IEC 60068-2-6 vibration 1 mm, 2 Hz - 13,2 Hz, 90 min.; 0,7g, 13,2 Hz - 100 Hz, 90 min.; 3,5 mm, 3 Hz - 9 Hz, 10 cycles, 1 octave/min.; 1g, 9 Hz - 150 Hz, 10 cycles, 1 octave/min.

 EMC interference immunity

•  EN 61000-4-2 electrostatic discharge (ESD) 6 kV contact discharge, 8 kV air discharge
•  EN 61000-4-3 electromagnetic field 10 V/m (80 - 1000 MHz)
•  EN 61000-4-4 fast transients (burst) 2 kV power line, 1 kV data line
•  EN 61000-4-5 surge voltage power line: 2 kV (line/earth), 1 kV (line/line), 1kV data line
•  EN 61000-4-6 conducted immunity 3 V (10 kHz - 150 kHz), 10 V (150 kHz - 80 MHz)

 EMC emitted immunity

•  FCC CFR47 Part 15 FCC CFR47 Part 15 Class A
•  EN 55022 EN 55022 Class A

 Approvals

•  Shipbuilding Germanischer Lloyd
