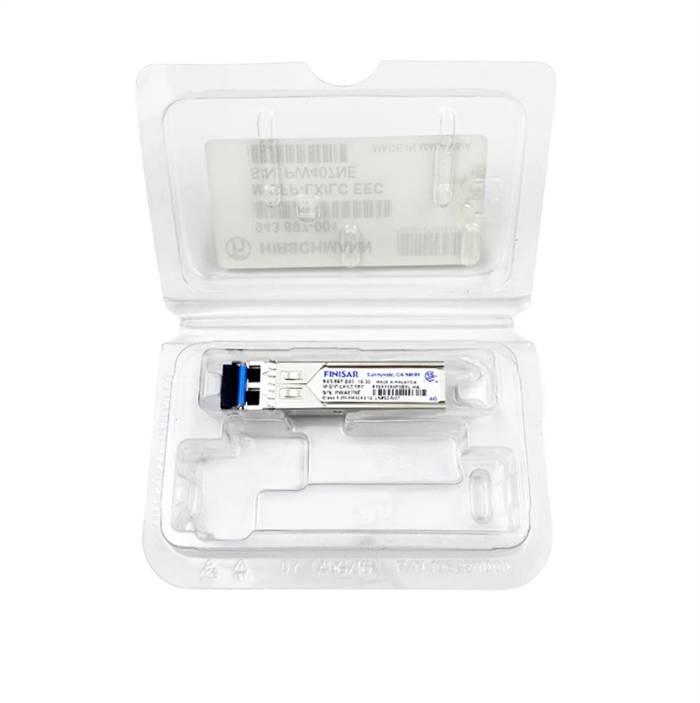

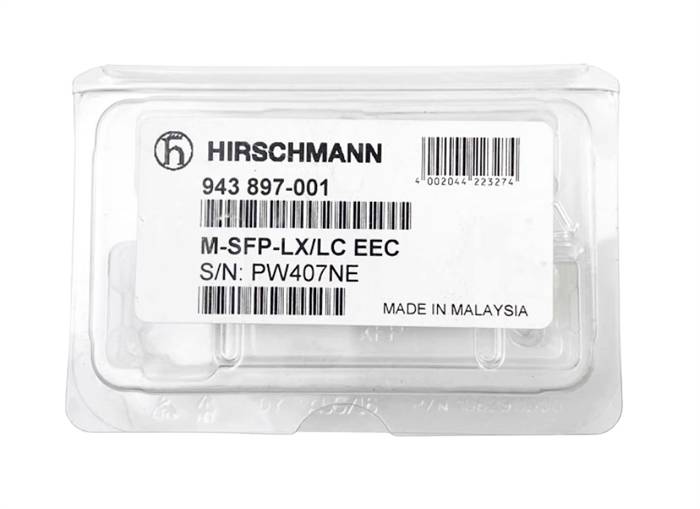

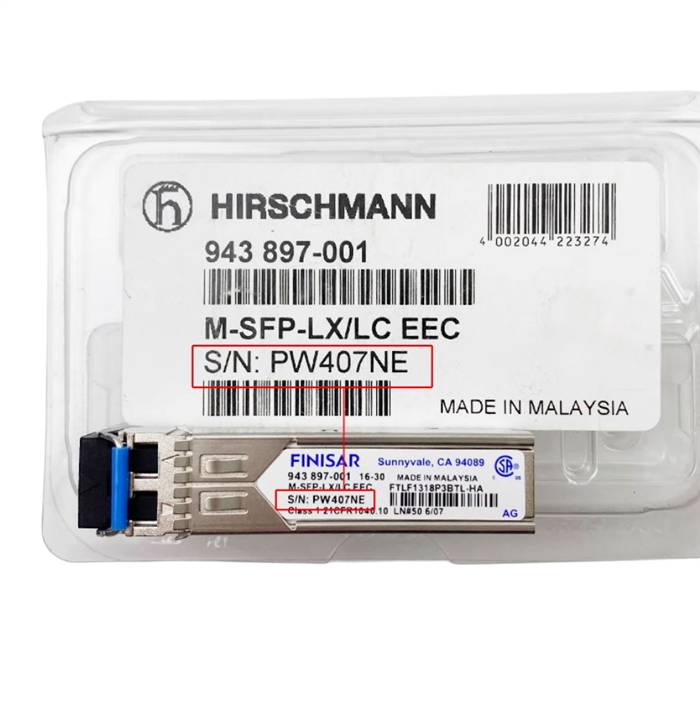

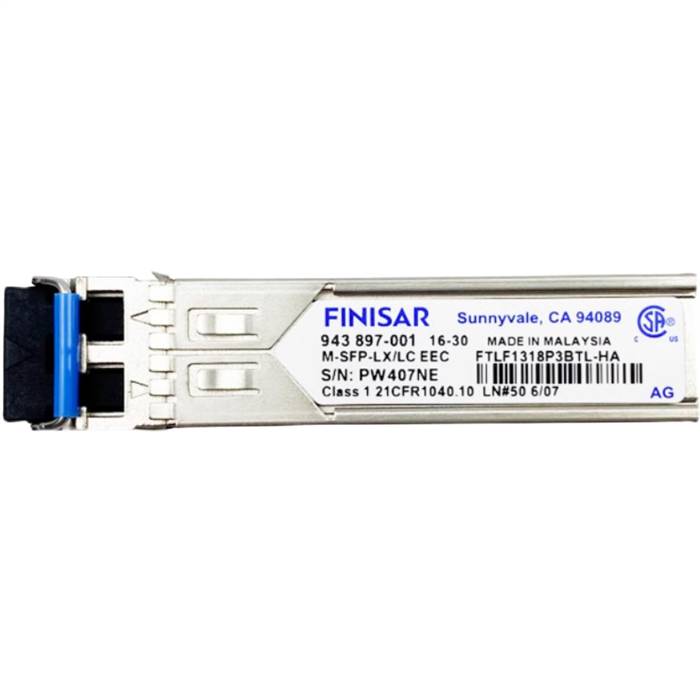

HIRSCHMANN 943897-001 M-SFP-LX/LC EEC Gigabit LX 10km SFP Transceiver Module

Product description

• Type: M-SFP-LX/LC EEC
• Description: SFP Fiberoptic Gigabit Ethernet Transceiver SM, extended temperature range
• Part Number: 943897001
• Port type and quantity: 1 x 1000 Mbit/s with LC connector

Network size - length of cable

• Single mode fiber (SM) 9/125 µm: 0 - 20 km (Link Budget at 1310 nm = 0 - 10,5 dB; A = 0,4 dB/km; D = 3,5 ps/(nm*km))
• Multimode fiber (MM) 50/125 µm: 0 - 550 m (Link Budget at 1310 nm = 0 - 10,5 dB; A = 1 dB/km; BLP = 800 MHz*km) With f/o adapter in line with IEEE 802.3-2000 clause 38 (single-mode fiber offset-launch mode conditioning patch cord)
• Multimode fiber (MM) 62.5/125 µm: 0 - 550 m (Link Budget at 1310 nm = 0 - 10,5 dB; A = 1 dB/km; BLP = 500 MHz*km) With f/o adapter in line with IEEE 802.3-2000 clause 38 (single-mode fiber offset-launch mode conditioning patch cord)

Power requirements

• Operating Voltage: power supply via the switch
• Power consumption: 1 W

Software

• Diagnostics: Optical input and output power, transceiver temperature

Ambient conditions

• MTBF (Telecordia SR-332 Issue 3) @ 25°C: 867 Years
• Operating temperature: -40-+85 °C
• Storage/transport temperature: -40-+85 °C
• Relative humidity (non-condensing): 5-95 %

Mechanical construction

• Dimensions (WxHxD): 13.4 mm x 8.5 mm x 56.5 mm
• Weight: 34 g
• Mounting: SFP slot
• Protection class: IP20

Mechanical stability

• IEC 60068-2-6 vibration: 1 mm, 2 Hz-13.2 Hz, 90 min.; 0.7 g, 13.2 Hz-100 Hz, 90 min.; 3.5 mm, 3 Hz-9 Hz, 10 cycles, 1 octave/min.; 1 g, 9 Hz-150 Hz, 10 cycles, 1 octave/min
• IEC 60068-2-27 shock: 15 g, 11 ms duration, 18 shocks

EMC interference immunity

• EN 61000-4-2 electrostatic discharge (ESD): 6 kV contact discharge, 8 kV air discharge
• EN 61000-4-3 electromagnetic field: 10 V/m (80-1000 MHz)
• EN 61000-4-4 fast transients (burst): 2 kV power line, 1 kV data line
• EN 61000-4-5 surge voltage: power line: 2 kV (line/earth), 1 kV (line/line), 1 kV data line
• EN 61000-4-6 Conducted Immunity: 3 V (10 kHz-150 kHz), 10 V (150 kHz-80 MHz)

EMC emitted immunity

• EN 55022: EN 55022 Class A
• FCC CFR47 Part 15: FCC 47CFR Part 15, Class A

Approvals

• Safety of information technology equipment: EN60950
• Laser Protection: class 1 according to IEC60825-1
• Hazardous locations: depending on deployed switch
• Shipbuilding: depending on deployed switch

Reliability

• Guarantee: 24 months (please refer to the terms of guarantee for detailed information)

Scope of delivery and accessories

• Scope of delivery: SFP module
