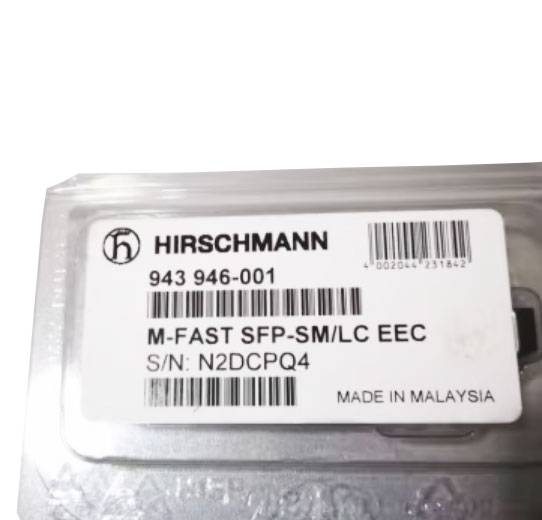

HIRSCHMANN 943946-001 M-FAST SFP-SM/LC EEC Fast Ethernet 10km SFP Transceiver Module

 Product description

•  Type: M-FAST SFP-SM/LC EEC, SFP Transceiver
•  Description: SFP Fiberoptic Fast-Ethernet Transceiver SM, extended temperature range
•  Part Number: 943946001
•  Port type and quantity: 1 x 100 Mbit/s with LC connector

 Network size - length of cable

•  Single mode fiber (SM) 9/125 µm: 0 - 25 km (Link Budget at 1310 nm = 0 - 13 dB; A = 0.4 dB/km, D = 3.5 ps/(nm*km))

 Power requirements

•  Operating Voltage: power supply via the switch
•  Power consumption: 1 W

 Software

•  Diagnostics: Optical input and output power, transceiver temperature

 Ambient conditions

•  MTBF (Telecordia SR-332 Issue 3) @ 25°C: 652 Years
•  Operating temperature:-40-+85 °C
•  Storage/transport temperature:-40-+85 °C
•  Relative humidity (non-condensing): 5-95 %

 Mechanical construction

•  Dimensions (WxHxD): 13.4 mm x 8.5 mm x 56.5 mm
•  Weight: 30 g
•  Mounting: SFP slot
•  Protection class: IP20

 Mechanical stability

•  IEC 60068-2-6 vibration: 1 mm, 2 Hz-13.2 Hz, 90 min.; 0.7 g, 13.2 Hz-100 Hz, 90 min.; 3.5 mm, 3 Hz-9 Hz, 10 cycles, 1 octave/min.; 1 g, 9 Hz-150 Hz, 10 cycles, 1 octave/min
•  IEC 60068-2-27 shock: 15 g, 11 ms duration, 18 shocks

 EMC interference immunity

•  EN 61000-4-2 electrostatic discharge (ESD): 6 kV contact discharge, 8 kV air discharge
•  EN 61000-4-3 electromagnetic field: 10 V/m (80-1000 MHz)
•  EN 61000-4-4 fast transients (burst): 2 kV power line, 1 kV data line
•  EN 61000-4-5 surge voltage: power line: 2 kV (line/earth), 1 kV (line/line), 1 kV data line
•  EN 61000-4-6 Conducted Immunity: 3 V (10 kHz-150 kHz), 10 V (150 kHz-80 MHz)

EMC emitted immunity

•  EN 55022:  EN 55022 Class A
•  FCC CFR47 Part 15:  FCC 47CFR Part 15, Class A

 Approvals

•  Safety of information technology equipment:  EN60950
•  Laser Protection:  class 1 according to IEC60825-1
•  Hazardous locations:  depending on deployed switch
•  Shipbuilding:  depending on deployed switch

 Reliability

•  Guarantee:  24 months (please refer to the terms of guarantee for detailed information)

 Scope of delivery and accessories

•  Scope of delivery: SFP module
