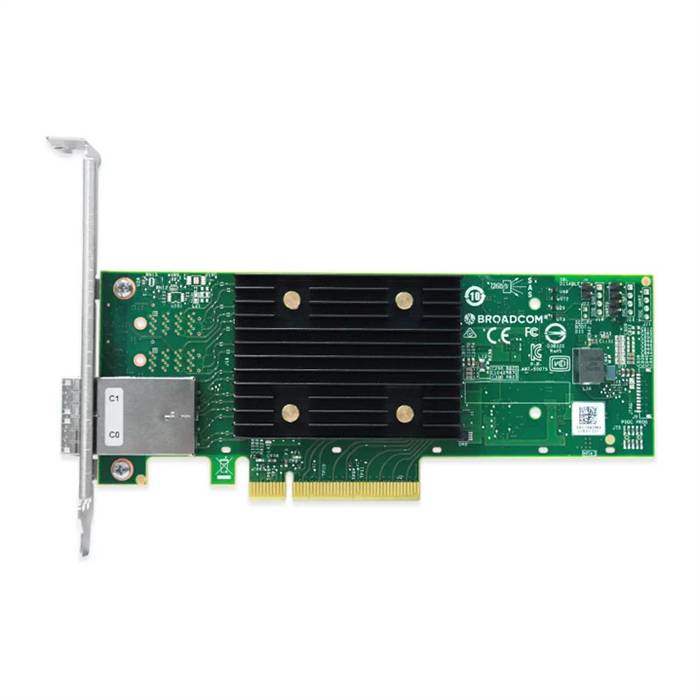

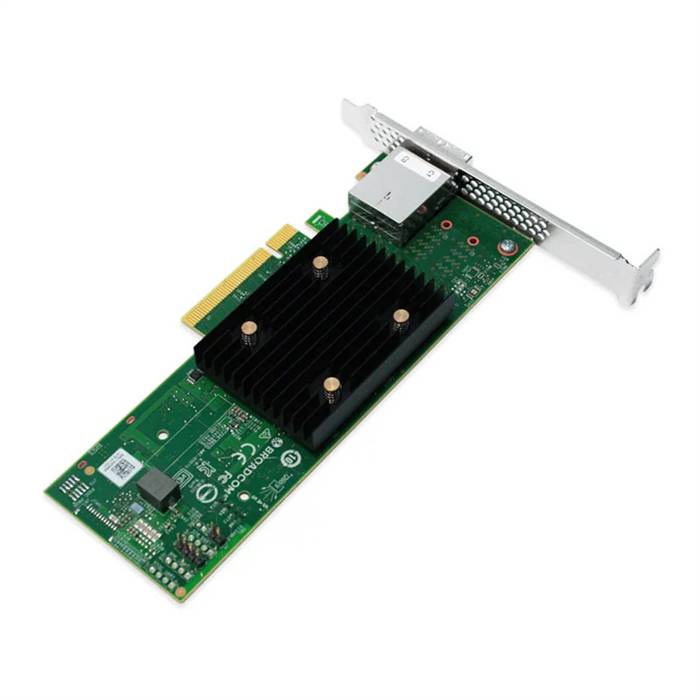

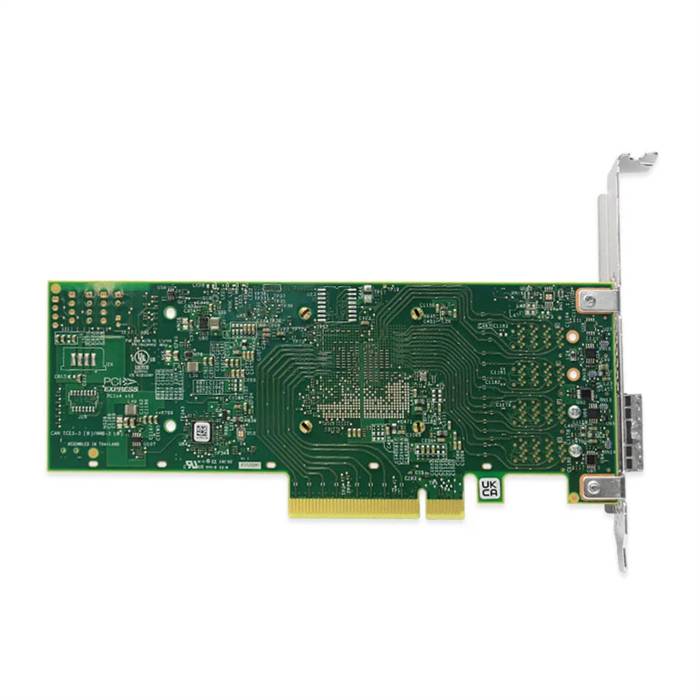

Broadcom 9500-8e 05-50075-01 PCIe 4.0 x8 8 External Ports Tri-Mode Storage Adapter

The 9500-8e Tri-Mode, PCIe Gen 4.0 HBA with eight external ports is ideal for increased connectivity and maximum performance for enterprise data center flexibility. The HBA features the SAS3808 x8, Gen 4.0 I/O Controller (IOC), making it part of the industry's first HBA family to offer both PCIe Gen 4.0 host and storage interfaces.

With increased bandwidth and IOPS performance compared to previous generations, the 9500-8e adapter delivers the performance and scalability needed by critical applications.

Features

• Connects up to 1024 SAS/SATA devices or 32 NVMe devices
• Provides maximum connectivity and performance for high-end servers and applications
• Support critical applications with the bandwidth of PCIe 4.0 connectivity
• Universal Bay Management (UBM) Ready

Specifications

• Brackets: Full height and low profile
• Devices Supported: SAS/SATA: 1024, NVMe: 32
• External Connectors: 2 x4 SFF-8644 (ext HD)
• External Ports: 8
• Generation: 12 Gb/s
• Host Bus Type: x8 lane PCI Express 4.0
• I/O Controller: SAS3808
• Management Software: LSI Storage Authority (LSA), StorCLI (Command-Line Interface), HII (UEFI Human Interface Infrastructure)
• MTBF: > 5,000,000 hours at 40° C
• Operating Humidity: 20% to 80% Non-condensing
• Operating Temperature°C: 0°C to 55°C
• OS Support: Microsoft Windows, VMware vSphere/ESXi, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, Citrix XenServer, CentOS Linux, Ubuntu Linux, Debian Linux, Oracle Enterprise Linux, Fedora, FreeBSD
• Physical Dimensions: 167.65 (+/-0.13) mm x 68.77 (+/-0.13) mm
• Regulatory Certifications: Australia/New Zealand (AS/NZS CISPR 22), Canada ICES-003 Class B, CE Europe (EN55022/EN55024), Europe (EN55022/EN55024), Japan (VCCI V-3), Korea (RRA no 2013-24 & 25), RoHS, Safety: EN/IEC/UL 60950, Taiwan (CNS 13438), USA (FCC 47 CFR part 15 Subpart B, class B), WEEE
• Typical Power: 6.12W

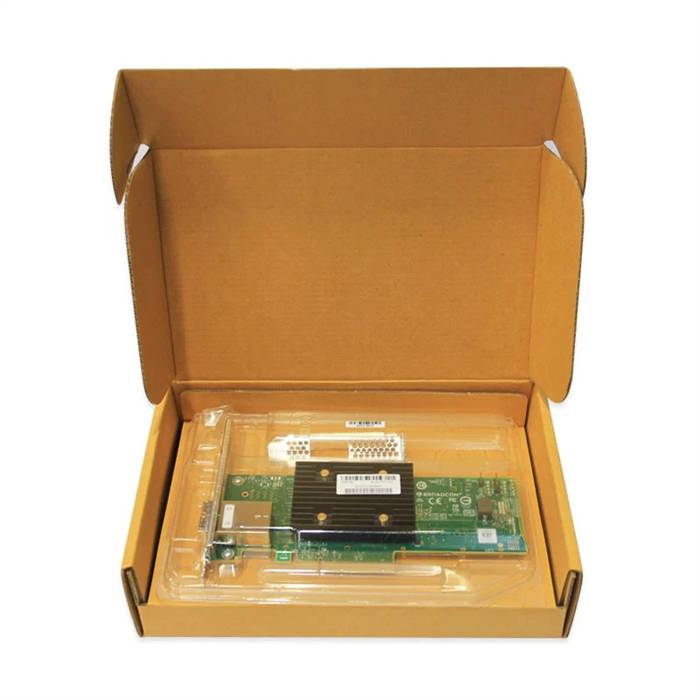

• What's in the box: 9500-8e HBA, Low Profile Bracket, FH (attached)
