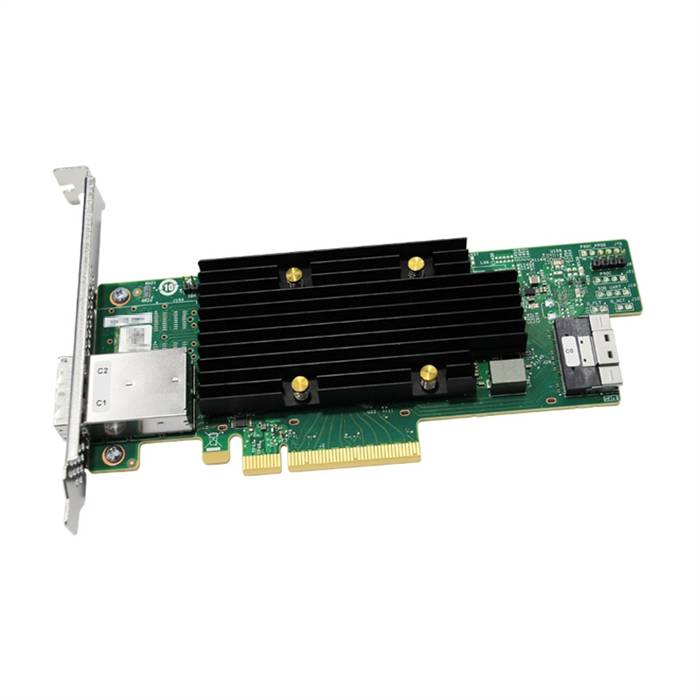

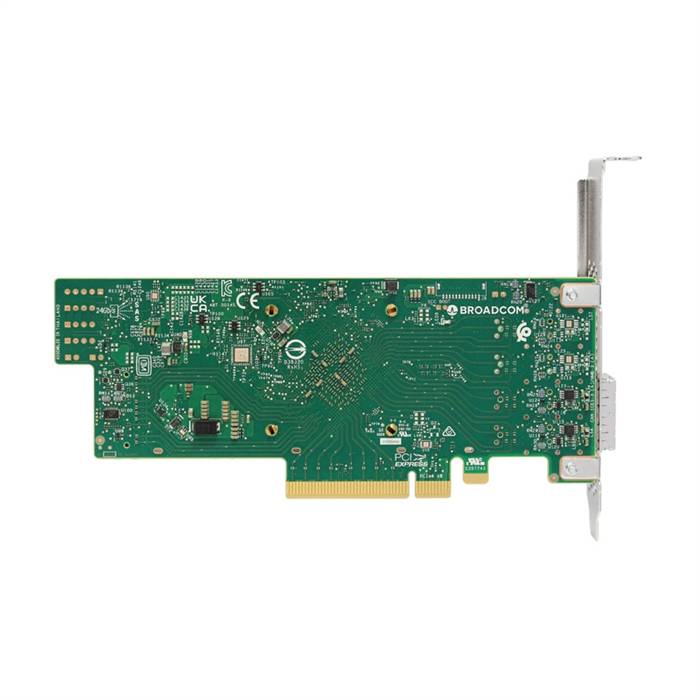

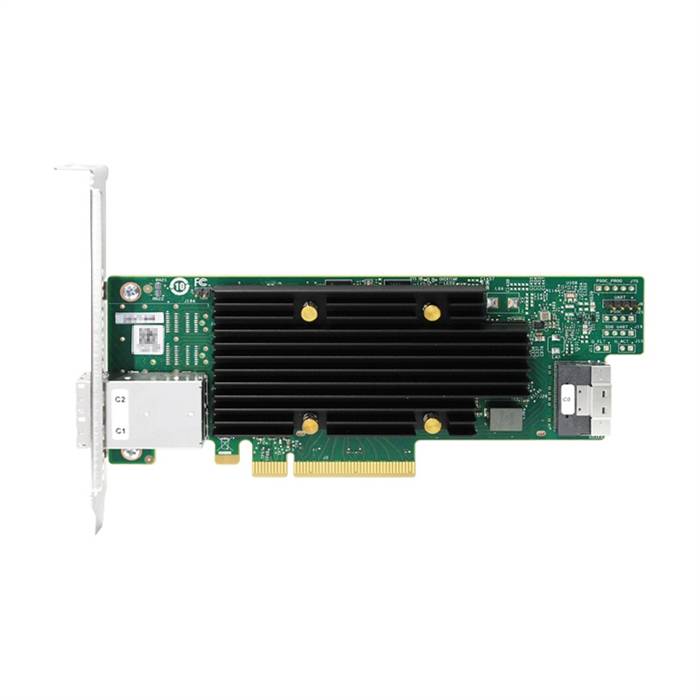

Broadcom 9600-8i8e 05-50145-00 PCIe 4.0 x8 8-port Int & 8-port Ext Tri-Mode enhanced HBA The 9600-8i8e Tri-Mode, PCIe Gen 4.0 enhanced HBA (eHBA) is ideal for increased connectivity and maximum performance for enterprise data center flexibility. With increased bandwidth and IOPS performance compared to previous generations, the 9600-8i8e eHBA delivers the performance and scalability needed by critical applications.
Features
- Low profile, half-length x8 PCIe Gen 4.0 adapter
- Connect up to 240 SAS/SATA devices or 32 NVMe devices
- Hardware Secure Boot and SPDM Attestation support
- SMART monitoring
- Drive temperature monitoring
- SafeStore key management for attached SEDs
- Universal Bay Management (UBM) Ready
Specifications
- Brackets: Full height and low profile
- Data Transfer Rates: 22.5, 12 and 6Gb/s SAS and 6Gb/s SATA
- Devices Supported: SAS/SATA: 240; NVMe: up to 32
- External Connectors: 4 x4 SFF-8644 (ext HD)
- External Ports: 8
- Generation: 24G
- Host Bus Adapters:
- x8, PCIe 4.0 eHBA features 8 internal and 8 external ports for high-performance and increased connectivity
- Host Bus Type: x8 lane PCI Express 4.0
- Internal Connectors: 1 x8 SFF-8654 (SlimSAS)
- Internal Ports: 8
- Management Software: LSI Storage Authority (LSA), StorCLI (Command-Line Interface), HII (UEFI Human Interface Infrastructure)
- MTBF: > 5,000,000 hours at 40° C
- Operating Humidity: 5% to 90% Non-condensing
- Operating Temperature°C: 0°C to 55°C
- OS Support: Microsoft Windows, VMware vSphere, VMware vSphere/ESXi, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, Ubuntu Linux, CentOS Linux, Debian Linux, Oracle Enterprise Linux, FreeBSD
- Physical Dimensions: 167.51 (+/-0.13) mm x 68.78 (+/-0.13) mm
- Regulatory Certifications: Australia/New Zealand RCM (AS/NZS CISPR 32; CISPR 32:2015, Class A; AS/NZS CISPR 32:2015, Class A), Canada EMC (ICES-003:2016 Issue 6: 2016, Class A; CAN/CSA CISPR 22-10; CISPR 22:2008), Europe (CE) (EN 55024, EN 55032, EN 55035; EN 55032:2015 +AC:2016, Class A; EN 55024:2010 +A1:2015; EN 55035:2017 +A11:2020), Korea (KN32/KN35), Taiwan BSMI (CNS 13438; CNS15663), USA/Canada Safety (UL Listed) (UL 62368-1, Second Edition; CAN/CSA C22.2 No. 62368-1-14), USA/Canada (FCC) (47 CFR FCC Part 15, Subpart B, Class A; ANSI C63.4:2014; CISPR 32:2008) CB (IEC 62368-1:2014 (Second edition); EN 62368-1:2014+A11: 2017), Japan (V-3/2015.04, Class A; V-4/2012.04; VCCI-CISPR 32:2016; CISPR 32:2015), Morocco (CMIM) (EN 55024, EN 55032, EN 55035; EN 55032:2015 +AC:2016, Class A; EN 55024:2010 +A1:2015; EN 55035:2017 +A11:2020); RoHS, WEEE
- Typical Power: 17W

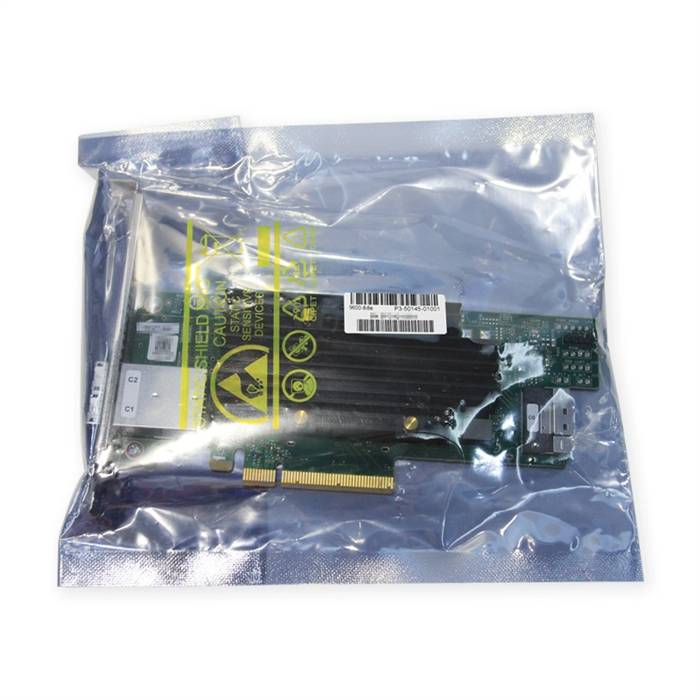

- What's in the box: 9600-8i8e eHBA, Low Profile Bracket, Bracket, FH (attached)
|
|
|
 |
|
 |
|
