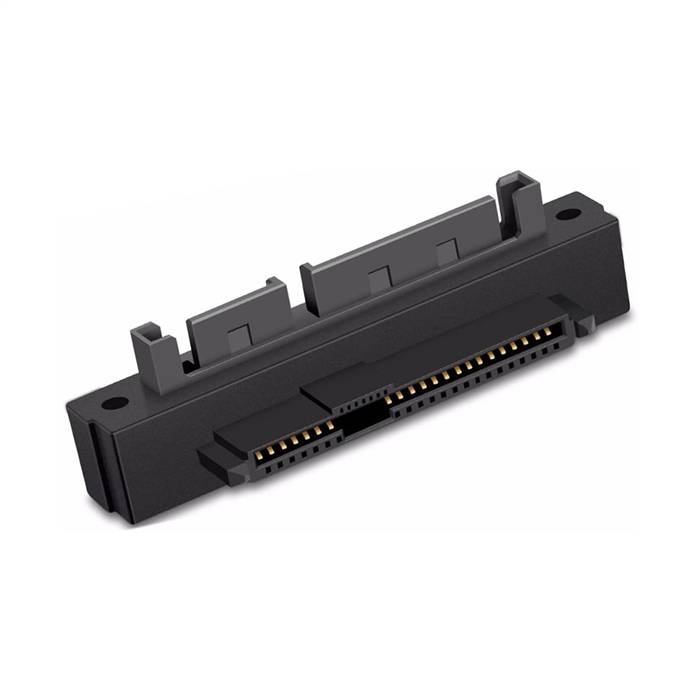

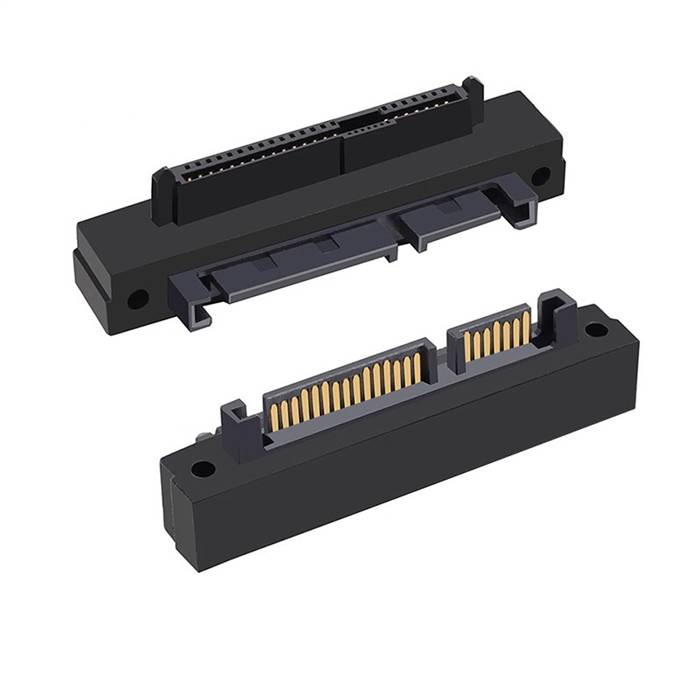

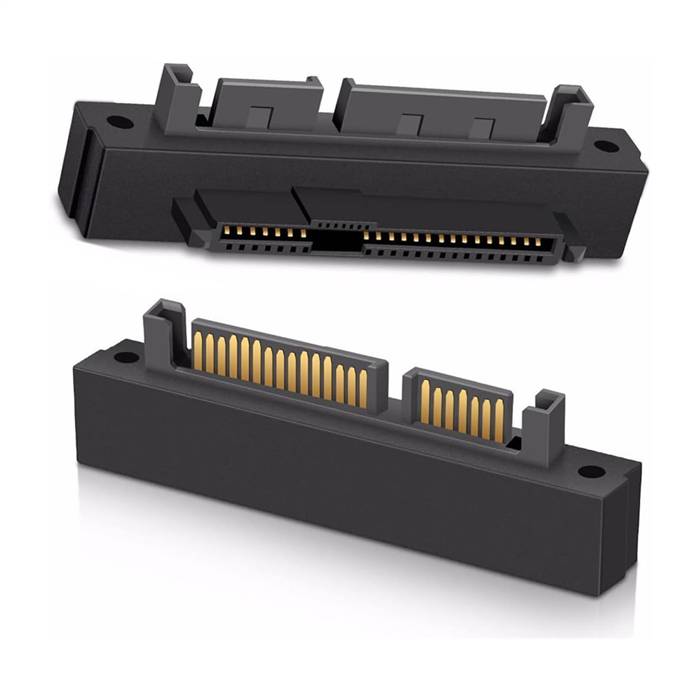

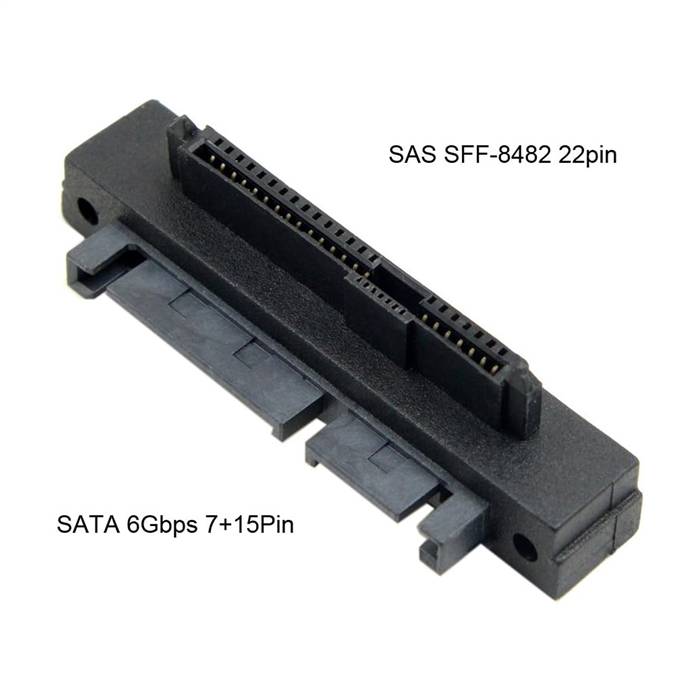

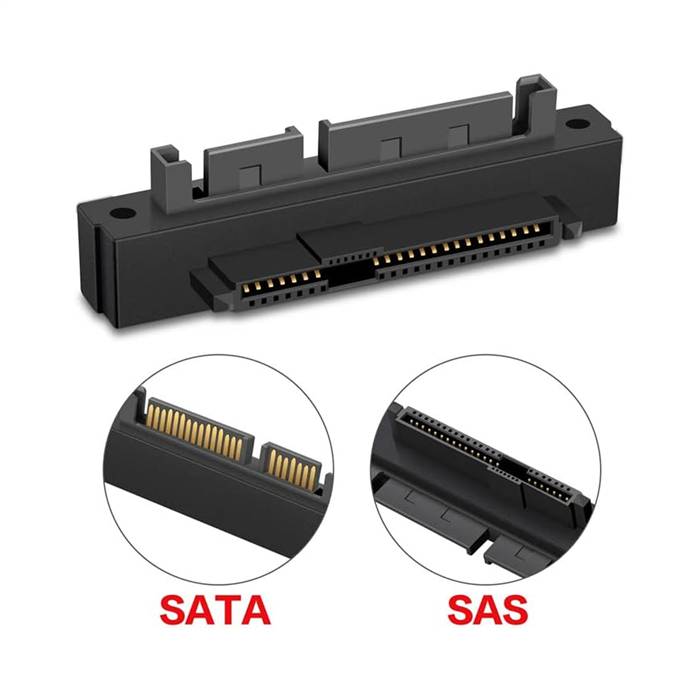

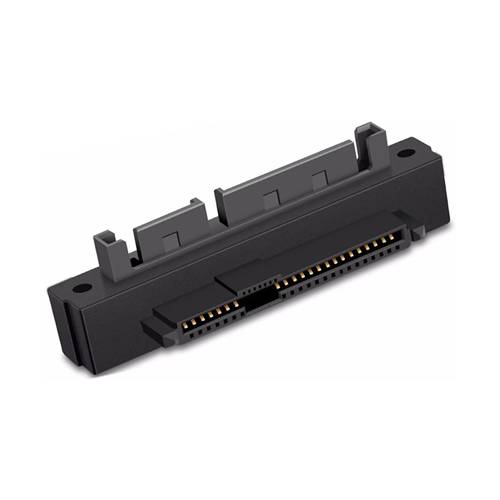

SAS SFF-8482 29P to Right Angle SATA 22P (7+15) Male Adpater

The SAS SFF-8482 29P to Right Angle SATA 22P (7+15) Male Adapter is a precision-engineered interface conversion solution designed to bridge SAS (Serial Attached SCSI) host interfaces with standard SATA devices. This adapter features a SAS SFF-8482 29-position female connector on one end and a right-angle SATA 22-pin (7+15) male connector on the other, enabling seamless connectivity between SAS controllers and SATA storage devices. Engineered with precision signal preservation, this adapter ensures reliable data transfer and power delivery while providing space-saving benefits through its right-angle design, making it ideal for high-density storage environments, server configurations, and enterprise storage applications.

Features

• Interface Conversion: Converts SAS SFF-8482 29-pin female to right-angle SATA 22-pin (7+15) male interface
• Right-Angle Design: Space-saving right-angle SATA connector enables efficient cable routing in tight spaces
• Complete Signal Support: Maintains both data and power transmission capabilities without compromise
• High-Speed Performance: Supports SAS 3.0 specifications with up to 12 Gbps data transfer rates
• Enhanced Compatibility: Enables connection between SAS host systems and SATA storage devices
• Secure Connection: Precision-engineered connectors ensure reliable mating and stable operation
• Durable Construction: Quality materials ensure long-term reliability and repeated use
• Plug-and-Play Operation: Requires no additional drivers or software for installation

Specifications

• Host Connector: SAS SFF-8482 29-position Female
• Device Connector: SATA 22-pin (7+15) Male (Right-Angle)
• Data Rate Support: Up to 12 Gbps (SAS 3.0 compatible), 6 Gbps (SATA 3.0 compatible)
• Supported Protocols: SAS 3.0/2.0, SATA 3.0/2.0
• Power Delivery: Supports standard SATA power specifications (1.5A Max per pin)
• Operating Temperature: -55°C to +125°C
• Durability Rating: 2,500+ mating cycles
• Contact Resistance: ?30m?
• Insulation Resistance: >50M?
• Dielectric Withstanding Voltage: 500V AC
• Contact Plating: Gold-plated contacts (1?"~15?" thickness)
• Housing Material: LCP GF UL94V-0
• Adapter Length: Typically 3-5cm (compact design)

Applications

• Storage Array Expansion: Connecting SATA drives to SAS storage controllers in enterprise environments
• Server Integration: Enabling use of SATA drives in SAS-based server systems
• Data Center Infrastructure: Facilitating mixed storage configurations in hyperscale environments
• Test Benches: Temporary connectivity for testing and diagnostics of SATA devices with SAS controllers
• Data Recovery: Facilitating drive connections for data retrieval operations in mixed interface environments
• Backup Solutions: Creating flexible backup systems utilizing SATA drives with SAS infrastructure
• Technical Support: Field service applications requiring interface adaptation between SAS and SATA
• Educational Labs: Teaching storage technology and interface compatibility concepts
