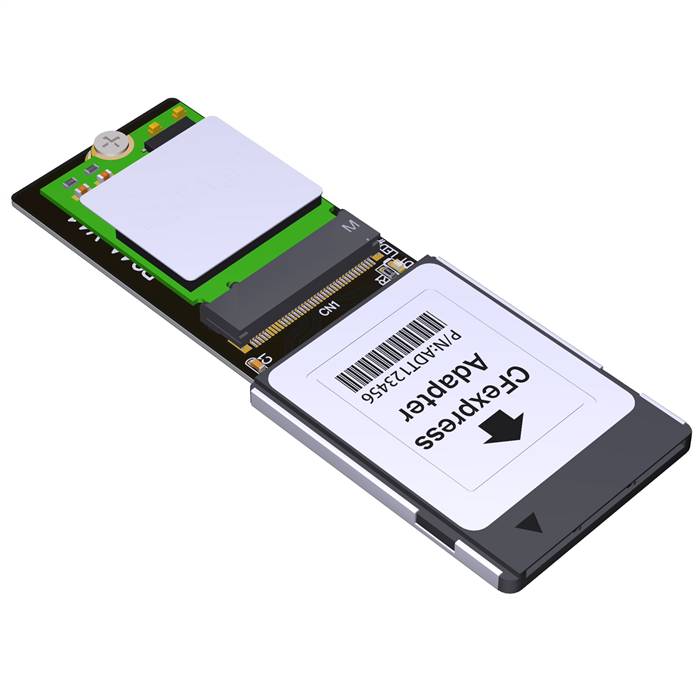

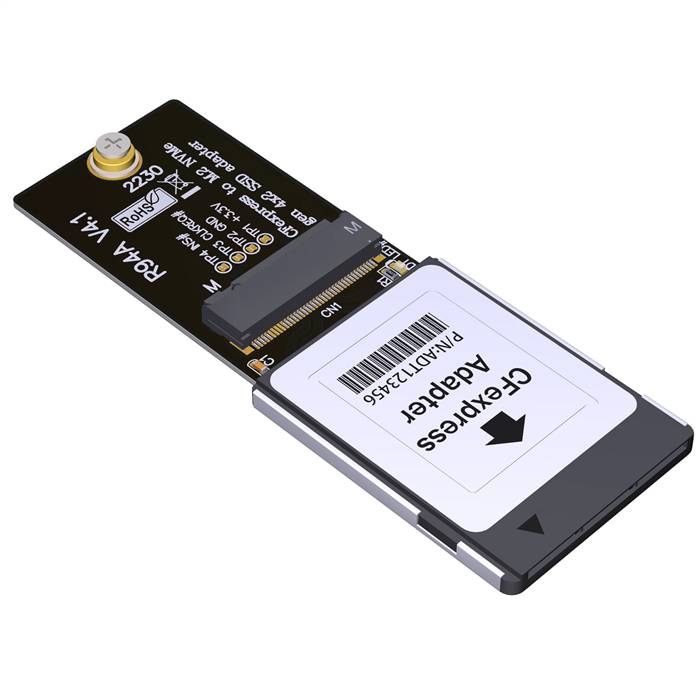

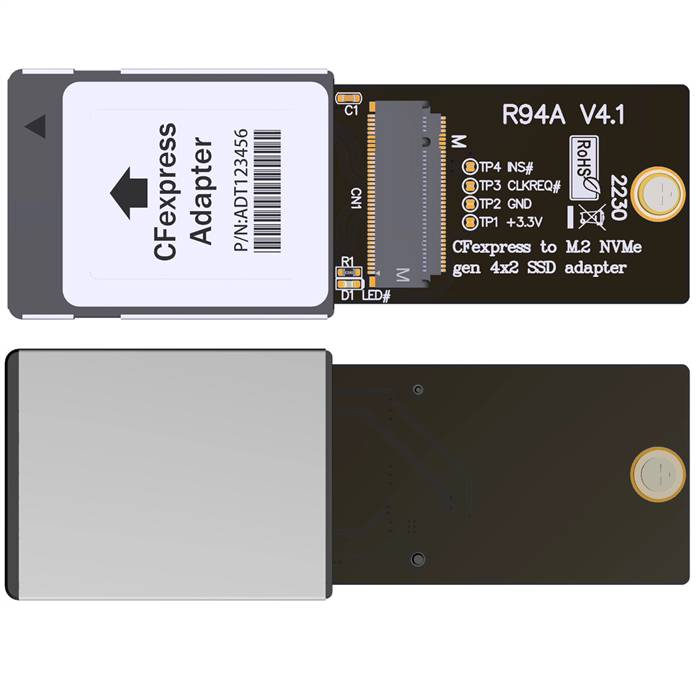

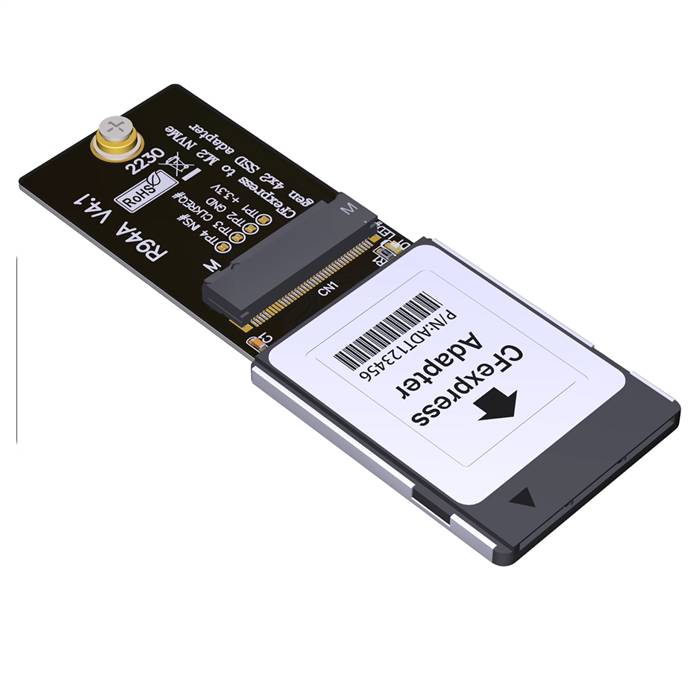

PCIe 4.0 CFexpress Type-B to M.2 2230 Key M Adapter

The PCIe 4.0 CFexpress Type-B to M.2 2230 Key M Adapter is a high-performance interface conversion solution designed for professional photography, videography, and high-speed data transfer applications. This adapter enables the use of compact M.2 2230 NVMe SSDs in CFexpress Type-B compatible devices, providing a cost-effective alternative to traditional CFexpress memory cards while maintaining the high-speed performance required by professional users. By leveraging the PCIe 4.0 interface, this solution delivers exceptional data transfer rates suitable for 8K video recording, high-resolution burst photography, and other demanding applications that require sustained high-speed data writing and reading.

Features

• CFexpress Type-B Interface: Standard CFexpress Type-B male connector for camera compatibility
• M.2 2230 Key M Support: Accommodates compact M.2 2230 NVMe SSDs
• PCIe 4.0 Performance: Supports full x2 lane bandwidth at 16 GT/s data rates
• High-Speed Data Transfer: Enables rapid file transfers comparable to native CFexpress cards
• Compact Design: Space-efficient form factor for easy portability

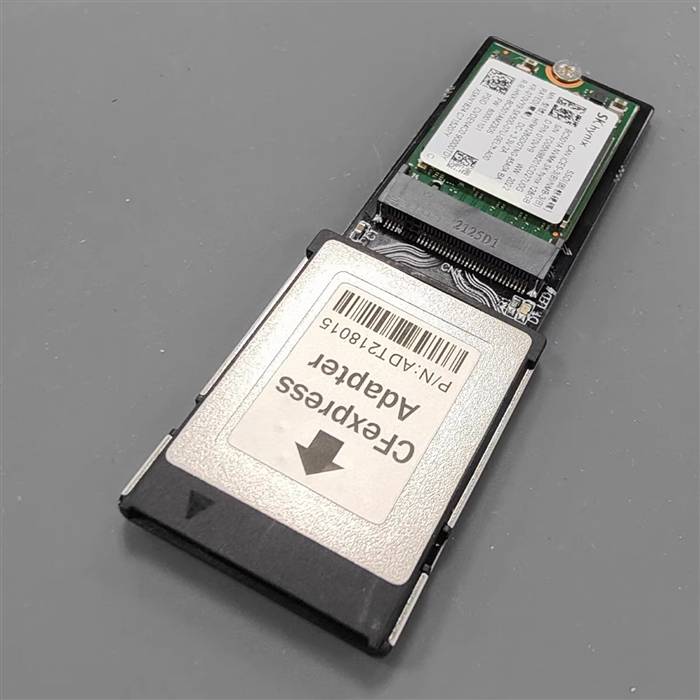

• Tool-Free Installation: Simple SSD installation and removal

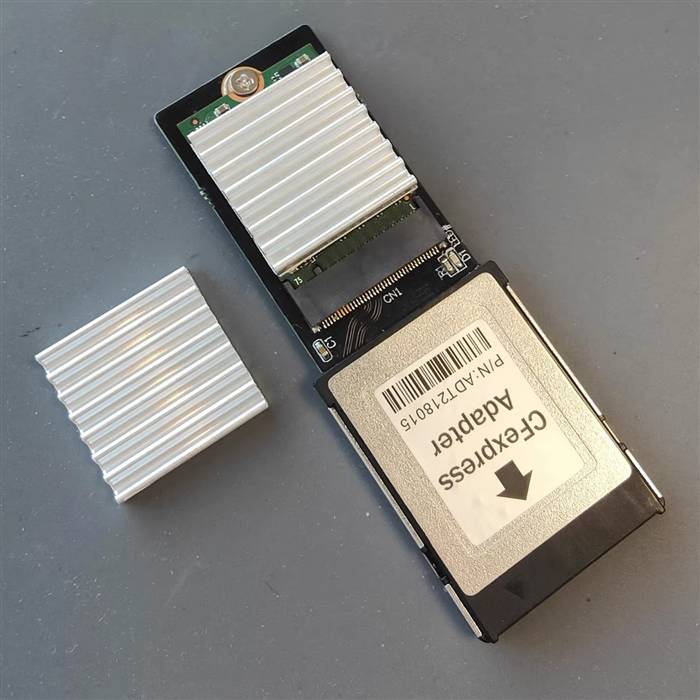

• Thermal Management: Efficient heat dissipation for sustained performance

Specifications

• Product Model: PCIe 4.0 CFexpress Type-B to M.2 2230 Key M Adapter
• Host Interface: CFexpress Type-B Male
• Target Interface: M.2 2230 Key M (PCIe NVMe)
• Supported Form Factors: 2230 (22mm x 30mm)
• Data Transfer Rate: Up to 16 GT/s per lane (approximately 32 Gbps total bandwidth for x2 lanes)
• Supported Protocols: PCI Express 4.0, NVMe 1.4
• Interface Configuration: PCIe x2 lanes
• Operating Temperature: 0°C to +70°C
• Power Delivery: 3.3V from host device
• Compatibility: CFexpress 2.0 compatible cameras and devices

Applications

• Professional Photography: High-speed storage for DSLR and mirrorless cameras
• Video Production: 8K video recording and high-bitrate video workflows
• Content Creation: Fast storage solution for photographers and videographers
• Data Backup: High-speed portable storage for field backups
• Media Transfer: Rapid file transfer between cameras and computers
• Broadcast Equipment: Professional video recording and broadcasting systems
• Industrial Imaging: High-speed data capture in scientific and industrial applications
• OEM Solutions: Custom storage solutions for camera and device manufacturers
