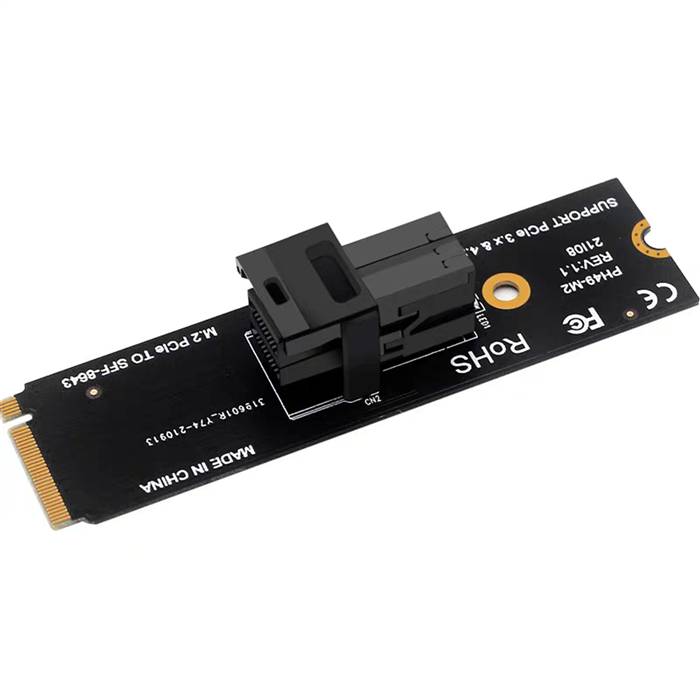

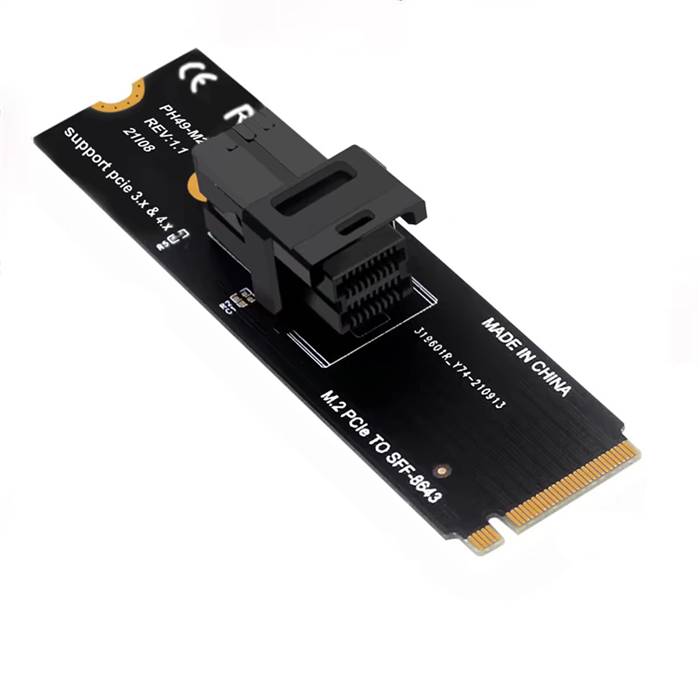

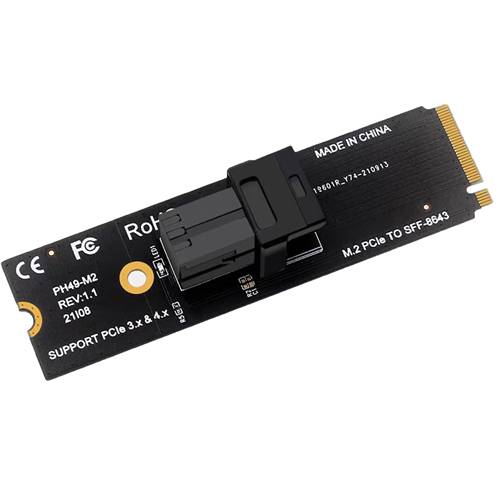

M.2 NVMe M-key to SFF-8643 Adapter for PCIe NVMe U.2 SSD

The M.2 NVMe M-key to SFF-8643 Adapter is a high-performance interface conversion card designed for enterprise storage systems, data centers, and high-performance computing environments. This adapter enables the connection between a modern M.2 NVMe M-key interface and a SFF-8643 (Mini SAS HD) interface, providing a reliable solution for integrating U.2 NVMe SSDs into systems that lack native U.2 support. Engineered to support high-speed data transfer protocols, this adapter ensures efficient performance without compromising signal integrity, making it ideal for demanding storage applications.

Features

• Interface Conversion: Converts an M.2 NVMe M-key interface to an SFF-8643 interface, allowing seamless connectivity between modern motherboards and U.2 NVMe SSDs or other SFF-8643-based devices.
• High-Speed Data Support: Supports PCIe 3.0 x4 (8 GT/s) and PCIe 4.0 (16 GT/s) protocols, delivering high-bandwidth communication for NVMe SSDs and ensuring efficient performance in enterprise storage applications.
• Plug-and-Play Installation: Requires no additional drivers for basic functionality in supported operating systems, simplifying deployment and reducing setup time.
• Enhanced Signal Integrity: Utilizes precision-engineered circuitry and shielding to minimize signal degradation, crosstalk, and electromagnetic interference (EMI), ensuring stable data transmission.
• Compact Design: The adapter features a compact form factor (e.g., 60x22mm) that allows for flexible installation in various system configurations, including space-constrained environments.

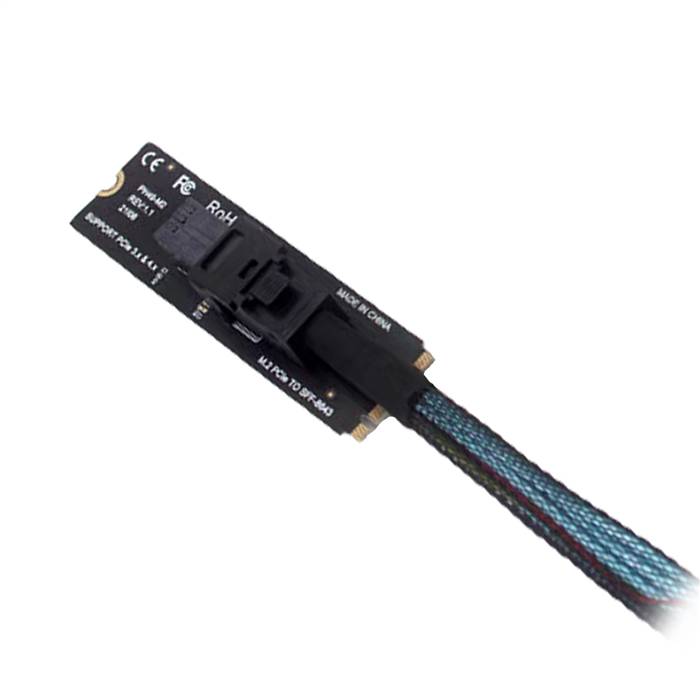

• Compatibility: Supports standard M.2 module sizes (22110, 2280, 2260, 2242) and is compatible with U.2 NVMe SSDs (SFF-8639) via SFF-8643 to SFF-8639 cables.
• Thermal Management: Designed with considerations for heat dissipation to maintain optimal operating temperatures during prolonged high-load operations.

Specifications

• Product Model: M.2 NVMe M-key to SFF-8643 Adapter
• Host Interface: M.2 NVMe M-key (PCIe x4)
• Device Interface: SFF-8643 (Mini SAS HD), 36-pin, Male
• Supported Protocols: NVMe, PCI Express (PCIe) 3.0/4.0
• Data Rate Support: Up to 16 GT/s (PCIe 4.0), 8 GT/s (PCIe 3.0)
• Operating Temperature: -40°C to 80°C
• Storage Temperature: -40°C to 85°C
• Compatibility: Supports U.2 NVMe SSDs (SFF-8639) via appropriate cables
• Form Factor: M.2 2260 (60x22mm)
• Operating Systems Supported: Windows 7/8/8.1/10 (64-bit), Linux, VMware (no drivers required for basic functionality)
• Humidity Tolerance: 5% to 95% relative humidity (non-condensing)
• Standards Compliance: RoHS compliant

Applications

• Enterprise Storage Expansion: Connecting motherboards with M.2 slots to U.2 NVMe SSDs or other SFF-8643-based storage devices, enabling high-capacity and high-speed storage arrays for data-intensive applications.
• Data Center Infrastructure: Deploying in data centers to integrate U.2 NVMe SSDs into servers that lack native U.2 support, optimizing storage performance and scalability in cloud and virtualization environments.
• High-Performance Computing (HPC): Supporting HPC clusters and AI training servers that require low-latency, high-throughput storage connections for processing large datasets and running complex computations.
• System Upgrades: Facilitating cost-effective storage upgrades by adding U.2 NVMe support to existing systems with M.2 slots, enhancing performance without replacing entire hardware setups.
• Video Editing and Media Production: Providing high-speed storage solutions for workstations that require fast access to large media files, leveraging the high bandwidth of PCIe and NVMe technologies.
• OEM and System Integration: Used by server manufacturers and system integrators to create custom storage solutions that require M.2 to SFF-8643 connectivity, optimizing space and cost efficiency.
