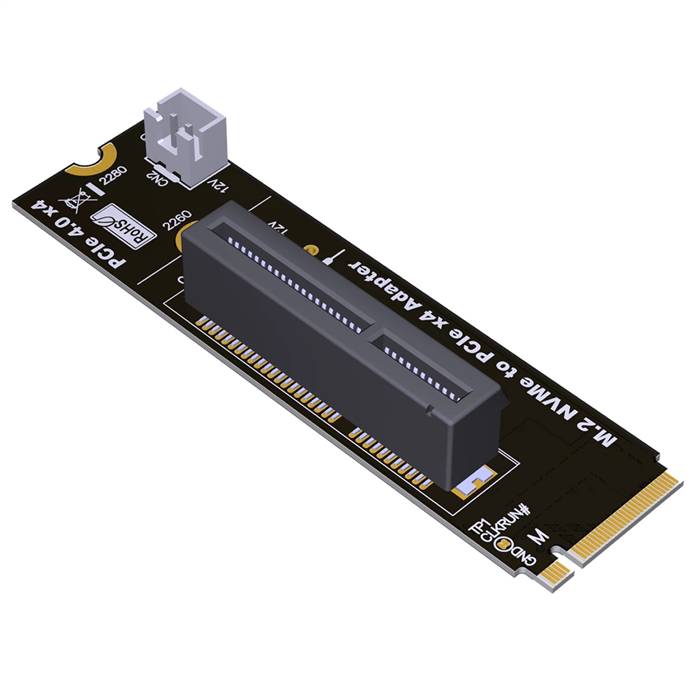

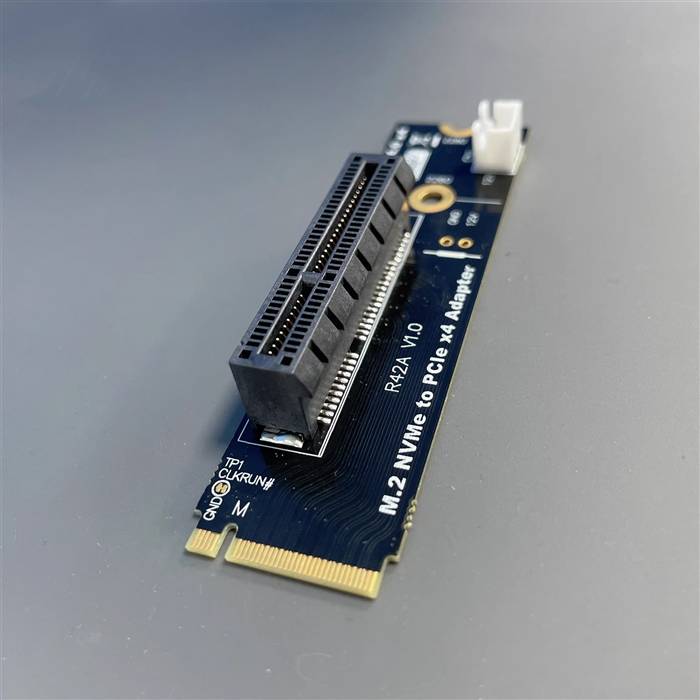

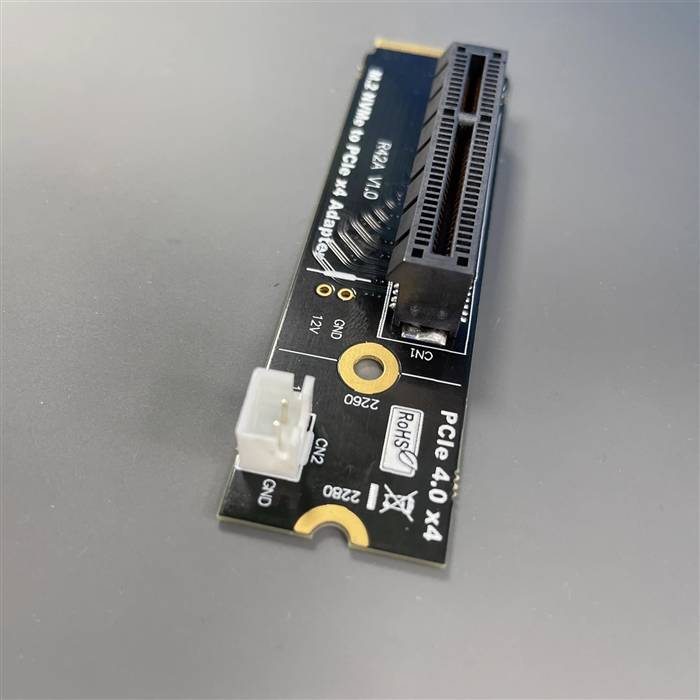

M.2 NVMe M-key to PCIe 4.0 x4 Female Adapter

The M.2 NVMe M-key to PCIe 4.0 x4 Female Adapter is a practical interface conversion solution designed for expanding storage capabilities in modern computing systems. This adapter enables the installation of M.2 NVMe SSDs in standard PCIe 4.0 x4 slots, providing a versatile solution for utilizing high-speed storage devices where dedicated M.2 slots are unavailable or fully occupied. By converting the compact M.2 interface to a standard PCIe x4 form factor, this solution maintains full PCIe 4.0 performance while offering broad compatibility across various system configurations. The adapter is particularly valuable for desktop computers, workstations, and servers requiring additional high-speed storage without compromising on data transfer rates.

Features

• M.2 NVMe M-key Interface: Supports M.2 M-key NVMe SSDs in 2280 form factor
• PCIe 4.0 x4 Compatibility: Converts to standard PCIe 4.0 x4 female slot
• Full Performance: Maintains PCIe 4.0 data transfer rates up to 16 GT/s per lane
• Tool-Free Installation: Easy SSD mounting with quality retention mechanism
• LED Status Indicator: Visual drive activity monitoring
• Universal Compatibility: Works with various M.2 NVMe SSDs and PCIe 4.0 systems
• Space-Efficient Design: Compact board layout for reliable operation

Specifications

• Product Model: M.2 NVMe M-key to PCIe 4.0 x4 Female Adapter
• Host Interface: M.2 M-key (PCIe NVMe)
• Target Interface: PCIe 4.0 x4 Female
• Supported Form Factors: 2280
• Data Transfer Rate: Up to 16 GT/s per lane (approximately 64 Gbps total bandwidth)
• Supported Protocols: NVMe 1.4, PCI Express 4.0
• Lane Configuration: x4 PCIe lanes from M.2 to x4 slot
• Operating Temperature: 0°C to +70°C
• Power Delivery: 3.3V from PCIe slot
• Compatibility: Windows, Linux, macOS

Applications

• Storage Expansion: Adding high-speed NVMe storage to systems without M.2 slots
• Workstation Upgrades: Expanding storage capacity in professional workstations
• Desktop Computers: Cost-effective storage expansion for consumer systems
• Server Applications: Additional NVMe storage in server environments
• Gaming Systems: High-performance game storage for gaming computers
• Content Creation: Fast storage for video editing and content production
• Backup Solutions: High-speed backup and archive storage
• Test and Development: NVMe SSD testing and validation in PCIe slots
